Radio/Audio System Schematics

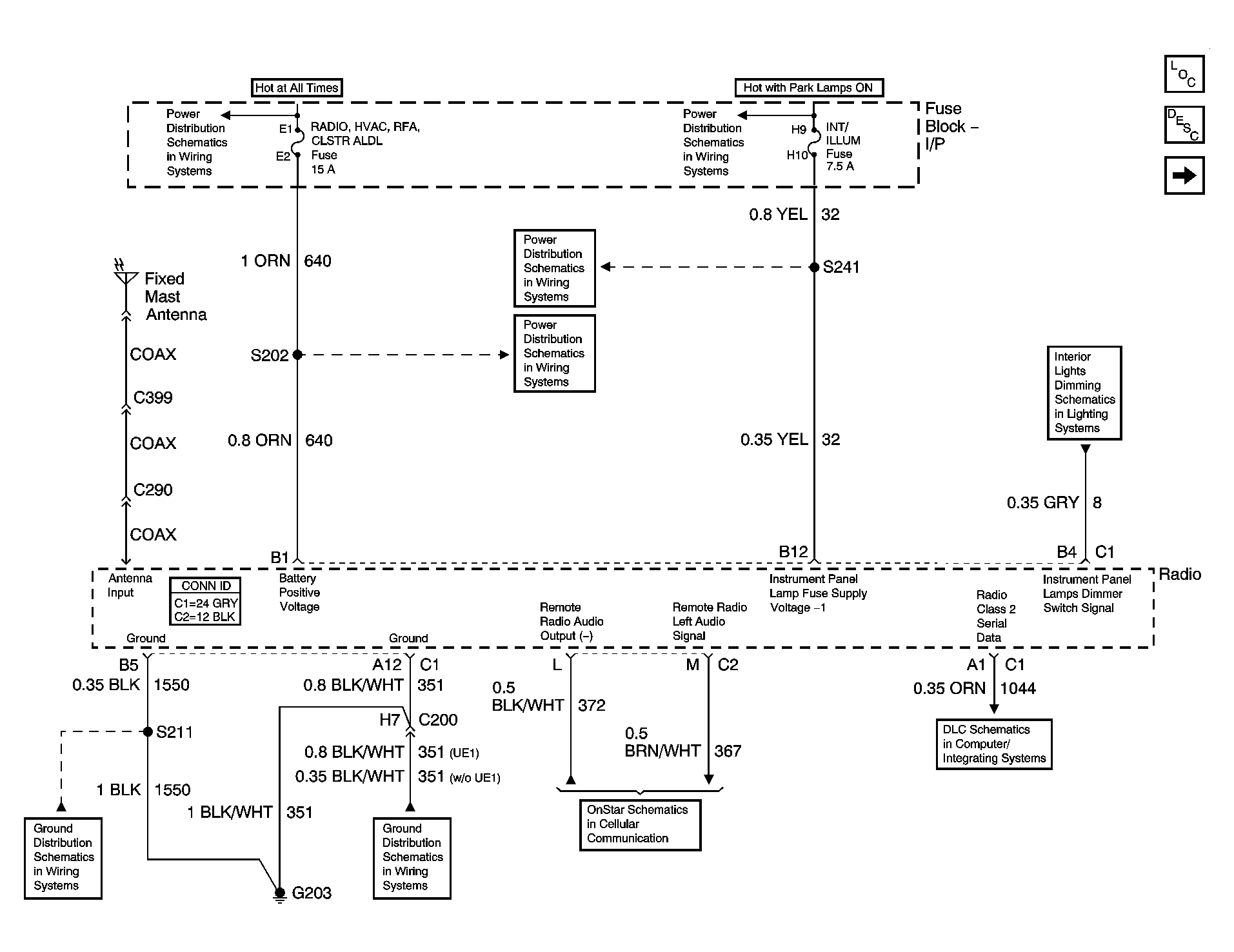

Fig 1: Power, Ground, Antenna, and DLC Schematic
GM1384003Courtesy of GENERAL MOTORS CORP.
Fig 2: Speakers (UQ3/UX7 w/o UK3) Schematic
GM1225850Courtesy of GENERAL MOTORS CORP.
Fig 3: Speakers (UQ3/UX7 w/UK3) Schematic
GM1354344Courtesy of GENERAL MOTORS CORP.

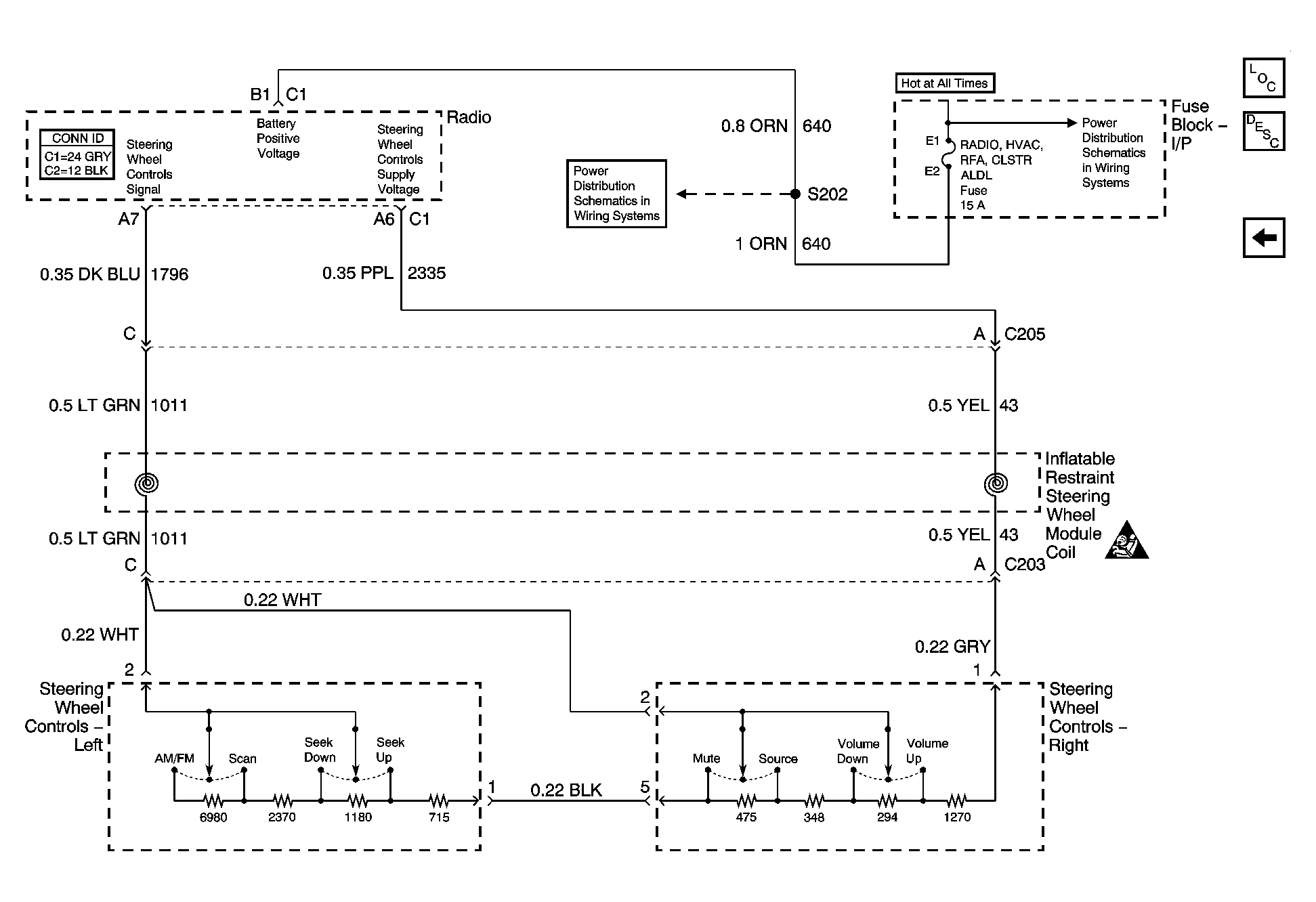

Fig 4: Steering Wheel Controls - UK3 Schematic
GM1384014Courtesy of GENERAL MOTORS CORP.
