OnStar Schematics

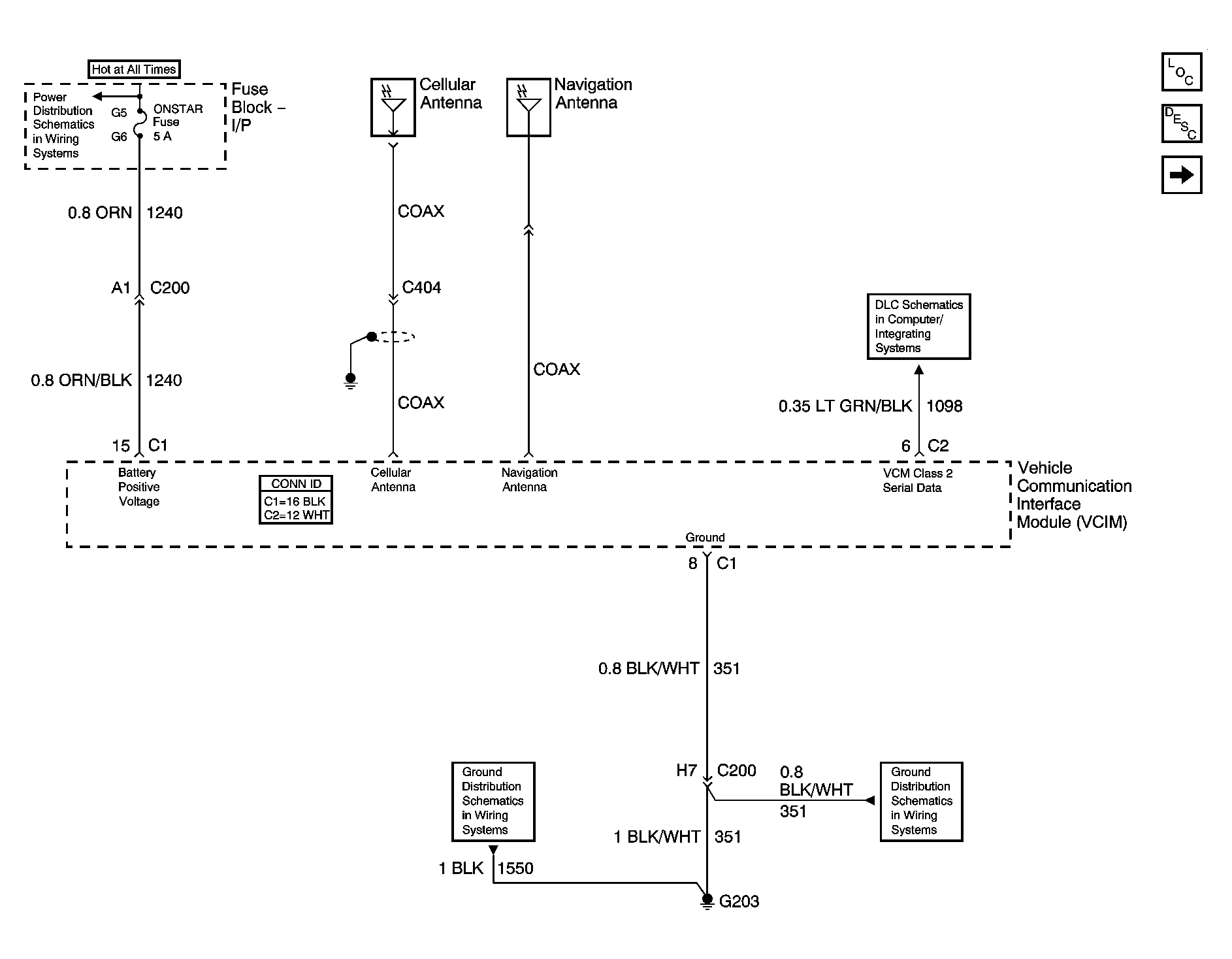

Fig 1: Power, Grounds, DLC, and Antennas Schematic

GM1384230

Courtesy of GENERAL MOTORS CORP.

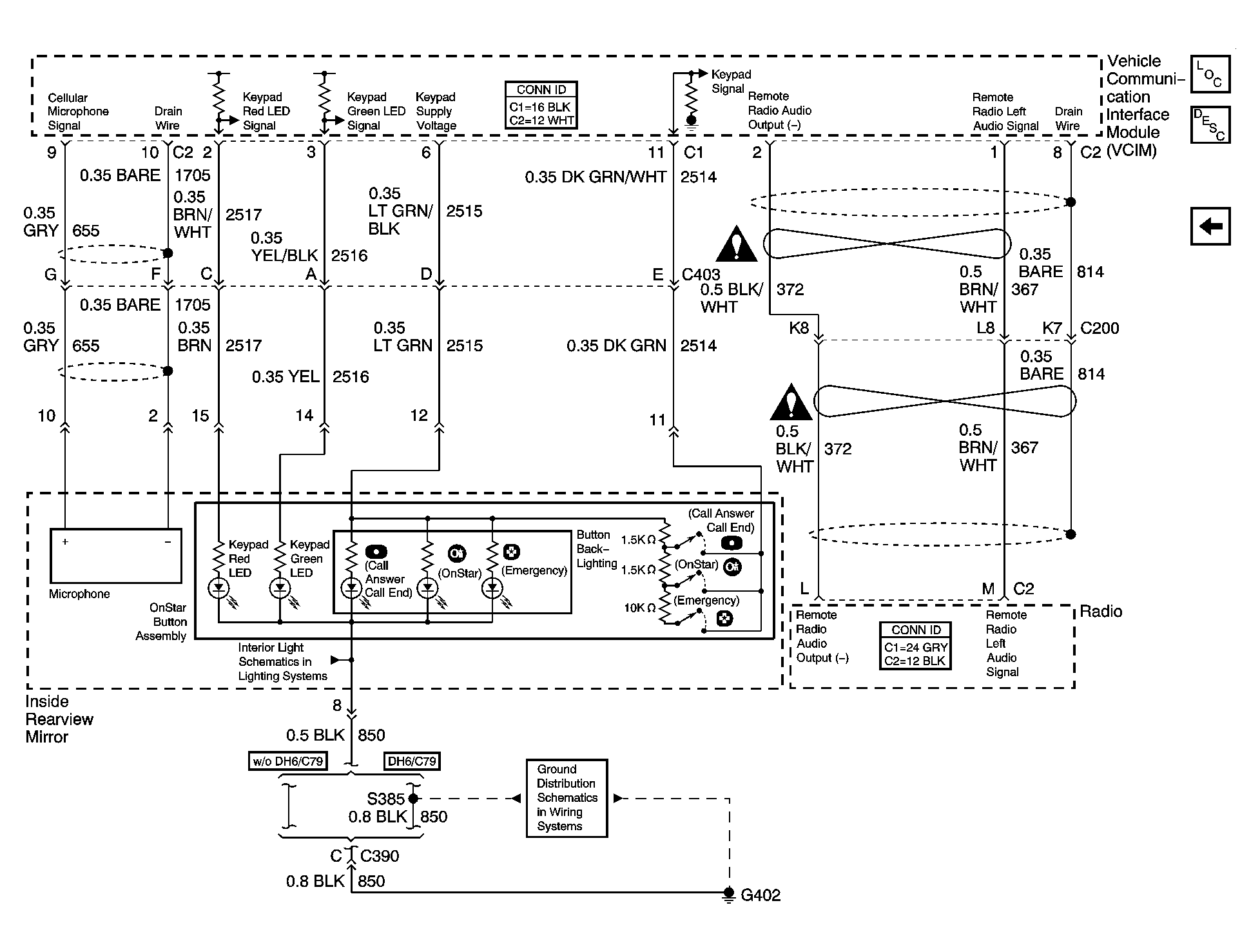

Fig 2: Inputs and Outputs Schematic

GM1384233

Courtesy of GENERAL MOTORS CORP.
