Harness Routing Views

Fig 1: LF Of The Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C106 Shown, C107 Similar
2	Headlamp Assembly - Left Shown, Right Similar
3	Cornering/Marker Lamp - Left Shown, Right Similar
4	Headlamp Low Beam - Left Shown, Right Similar
5	Headlamp High Beam - Left Shown, Right Similar
6	Park/Turn Signal Lamp - LF Shown, RF Similar

Fig 2: Front Of Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C120
2	Fuse Block - Underhood, C3
3	G101
4	Fog Lamp - LF Connector (Regal)
5	C106
6	Forward Lamp Wiring Harness
7	Ambient Outside Air Temperature Sensor Connector (CJ2)
8	Fog Lamp - RF Connector (Regal)
9	C107
10	C103

Fig 3: RF Of The Vehicle Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Frame Rail
2	Horn Assembly
3	C103

Fig 4: Cooling Fans Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Wiring Harness
2	C105
3	Cooling Fan - Right Connector
4	Cooling Fan Jumper Wiring Harness
5	Cooling Fan - Left Connector

Fig 5: Upper Rear Of The Engine Components (LG8) Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator B+
2	Generator
3	Generator Connector
4	Engine Wiring Harness
5	C102
6	Heated Oxygen Sensor (HO2S) 1
7	Ignition Control Module (ICM), C2
8	Ignition Control Module (ICM), C3

Fig 6: Left Side Of Engine Compartment Connectors (LG8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G111
2	G113
3	C113
4	Electronic Brake Control Module (EBCM) Connector (JL9)
5	C101
6	A/C Refrigerant Pressure Sensor Connector
7	Wheel Speed Sensor (WSS) - LF (JL9)

Fig 7: LR Of The Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P103
2	I/P Wiring Harness
3	Cruise Control Module (CCM) Connector
4	Cruise Control Module (CCM) (K34)
5	Electronic Brake Control Module (EBCM) (JL9)
6	Electronic Brake Control Module (EBCM) Connector (JL9)
7	Engine Wiring Harness
8	Brake Fluid Level Switch
9	C101
10	A/C Refrigerant Pressure Sensor
11	Engine Wiring Harness
12	G171 (JL9)

Fig 8: IP Harness Passthrough To Engine Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P100

Fig 9: Steering Wheel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left (UK3)
2	C203 (UK3)
3	Steering Wheel Controls - Right (UK3)
4	Inflatable Restraint Steering Wheel Module Connector
5	Inflatable Restraint Steering Wheel Module
6	Horn Switch B+ Connector
7	C203 (UK3)
8	Horn Switch Ground Connector

Fig 10: Lower Left Of The I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Release Switch
2	Stop Lamp Switch
3	C201
4	Stop Lamp Switch Connector C2
5	Stop Lamp Switch Connector C1
6	C207
7	C216
8	C215
9	C201
10	G201
11	C205 (UK3)

Fig 11: Vehicle Fuel Tank Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C405

Fig 12: Behind The Right Side Of The I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Reservoir
2	G200
3	Fuse Block - I/P
4	C200
5	Blower Motor
6	Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7	P100
8	Vacuum Reservoir
9	Black Vacuum Hose
10	Air Temperature Actuator - Right
11	Automatic Headlamp Relay
12	Rear Compartment Lid Release Relay
13	Rear Window Defogger Relay
14	Retained Accessory Power (RAP) Relay
15	I/P Wiring Harness
16	Air Temperature Actuator - Left

Fig 13: Right Side Of The I/P Component Views - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C200
2	G200
3	Fuse Block - I/P
4	I/P Wiring Harness
5	C290
6	Body Wiring Harness
7	C200

Fig 14: Right Side of Instrument Panel Component Views - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Lamp Relay
2	Brake to Shift Relay
3	P100
4	Fuse Block-I/P

Fig 15: Cigar Lighter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C242

Fig 16: Left Side Of The Passenger Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Wiring Harness
2	C351
3	Park Brake Cable
4	G301
5	C301
6	C311
7	Body Wiring Harness

Fig 17: Lower RH A Pillar Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P500
2	C301

Fig 18: Lower LH A Pillar Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P600
2	C302

Fig 19: LH Pillar B Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P700 LH Shown, P800 RH Similar
2	C351 LR Shown, RR C352 Similar

Fig 20: Right Side Of Passenger Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C352
2	Body Wiring Harness
3	C405

Fig 21: Left Side Of Rear Window Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Antenna Connector (UE1)
2	C404 (UE1)
3	Body Wiring Harness
4	C403 (UE1)
5	Navigation Antenna Connector (UE1)

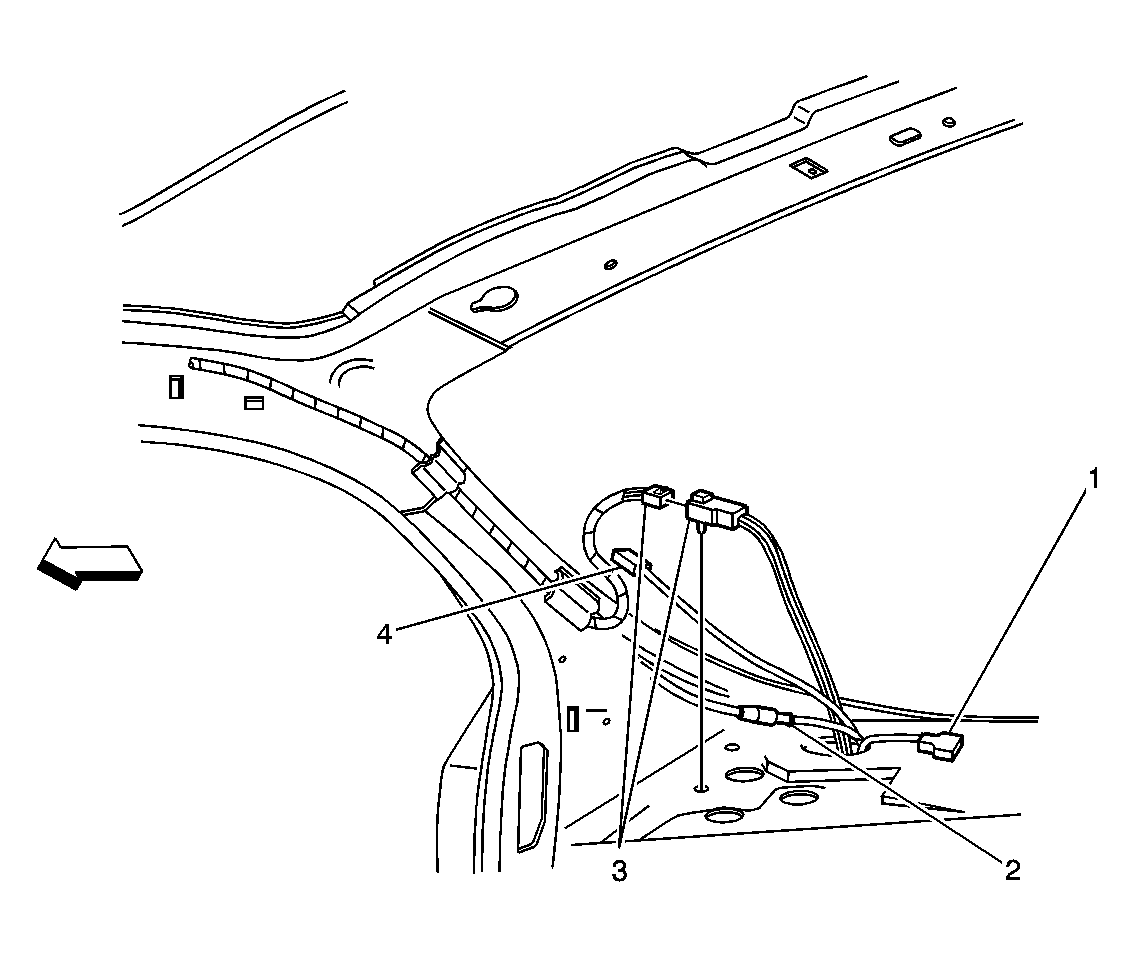

Fig 22: Right Side of the Rear Window Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C420
2	C399
3	C390
4	Rear Window Defogger Connector, C1

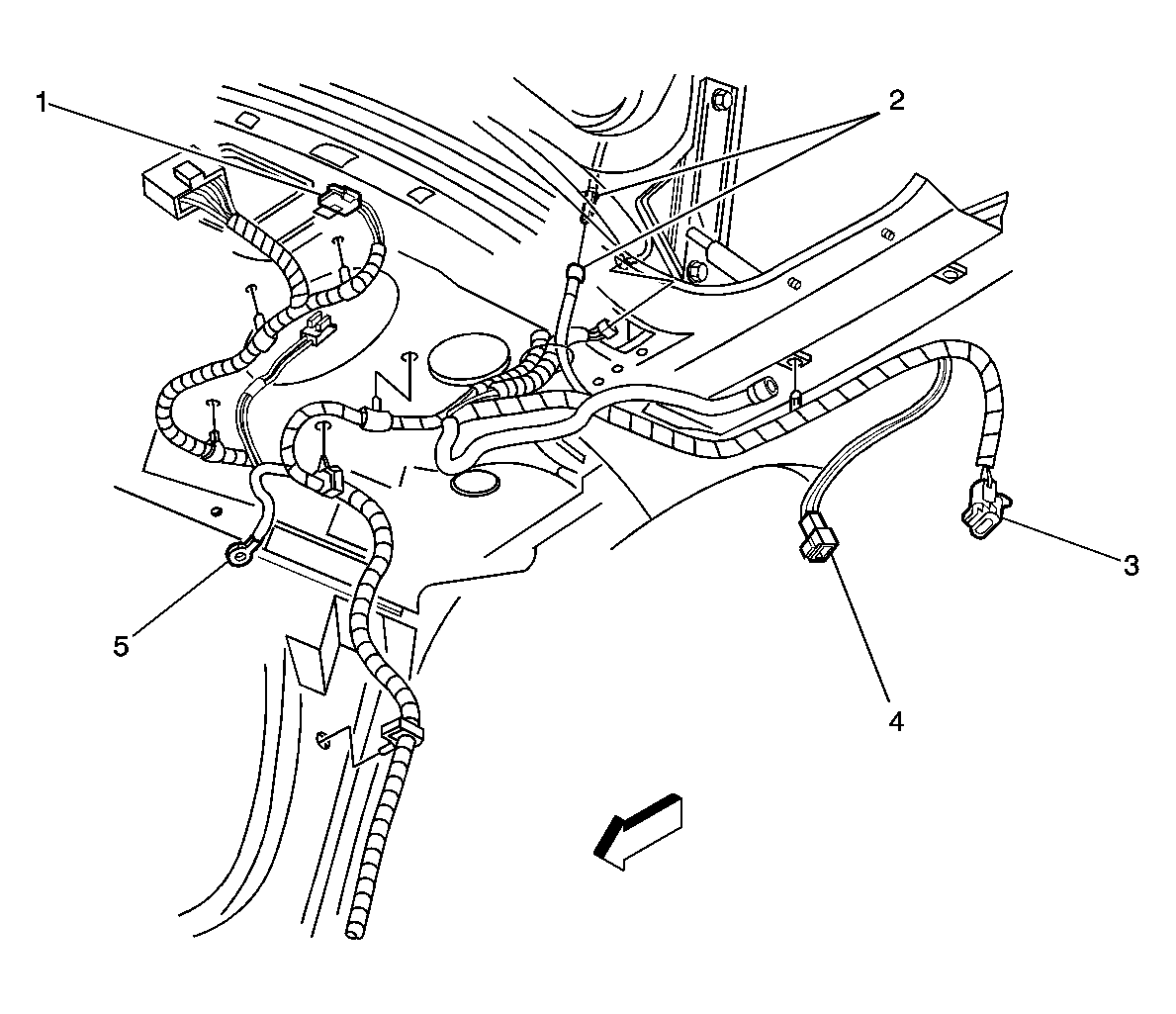

Fig 23: Right Side of Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp Connector
2	C399
3	C402
4	C410
5	G402

Fig 24: Left Side Of Rear Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR Connector
2	G401
3	P425
4	Evaporative Emissions (EVAP) Canister Vent Solenoid Connector
5	C402

Fig 25: Right Side Of The Luggage Compartment Component Views (US6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C399
2	Fixed Mast Antenna

Fig 26: Rear Compartment Lid Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Ajar Switch Connector
2	Rear Compartment Lid Lock Release Actuator Connector
3	P932
4	P430
5	C410
6	C915

Fig 27: LR Of The Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
2	Body Wiring Harness
3	Evaporative Emissions (EVAP) Canister
4	P425
5	Body Wiring Harness

Fig 28: Left Rear Of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C401 Shown, C402 Similar
2	Tail/Stop and Turn Signal Lamp - Left Shown, Right Similar
3	Marker Lamp - LR Shown, RR Similar
4	P401 Shown, P402 Similar

Fig 29: Rear Of The Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C915
2	P915
3	Rear Compartment Lid Lock Release Actuator
4	Rear Compartment Lid Applique
5	License Lamps
6	Tail Lamp - Right
7	Back Up Lamps
8	Tail Lamp - Left
