Power and Grounding Component Views

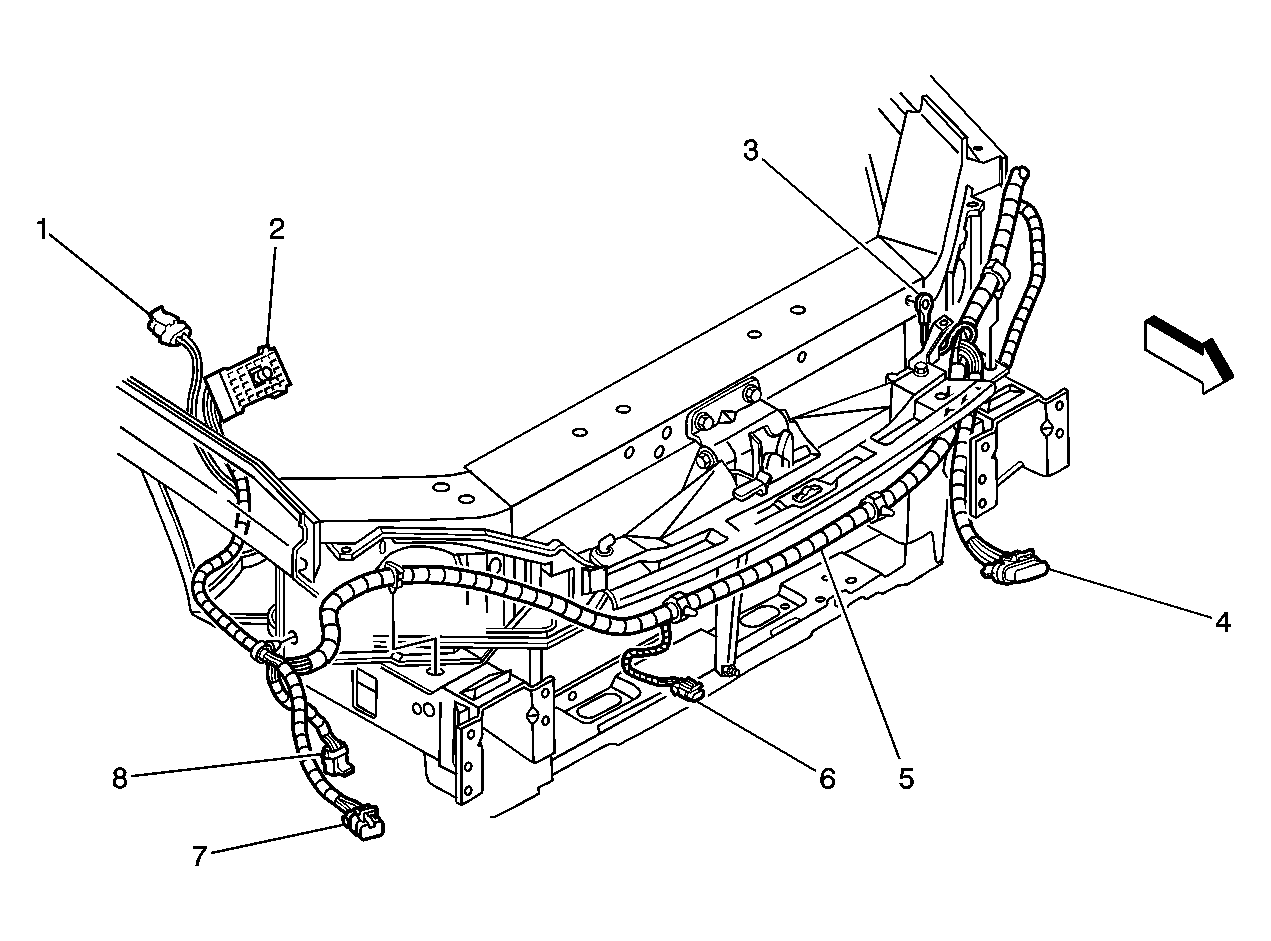

Fig 1: Power and Grounding Component Views - Front of Vehicle
GM1388976Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C120 (CJ2)
2 Fuse Block - Underhood, C3
3 G101
4 C106
5 Forward Lamp Wiring Harness
6 Ambient Outside Air Temperature Sensor Connector (CJ2)
7 C107
8 C103
Fig 2: Battery Cable And Grounding Point Component View
GM581299Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Block-Underhood
3 G100
Fig 3: Underhood Accessory Wiring Junction Block Component View
GM399300Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Underhood Accessory Wiring Junction, C6
2 Underhood Accessory Wiring Junction Block, C3 (Forward Lamp)
3 Underhood Accessory Wiring Junction Block, C2 (Instrument Panel)
4 Underhood Accessory Wiring Junction Block, C1 (Engine)
5 Underhood Accessory Wiring Junction Block, C7
6 Underhood Accessory Wiring Junction Block, C5
7 Underhood Accessory Wiring Junction Block, C4
Fig 4: Left Side Of Engine Compartment Connectors (LG8)
GM849492Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G111
2 G113
3 C113
4 Electronic Brake Control Module (EBCM) Connector (JL9)
5 C101
6 A/C Refrigerant Pressure Sensor Connector
7 Wheel Speed Sensor (WSS) - LF (JL9)
Fig 5: LR Of The Engine Compartment Components
GM1095521Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P103
2 I/P Wiring Harness
3 Cruise Control Module (CCM) Connector
4 Cruise Control Module (CCM) (K34)
5 Electronic Brake Control Module (EBCM) (JL9)
6 Electronic Brake Control Module (EBCM) Connector (JL9)
7 Engine Wiring Harness
8 Brake Fluid Level Switch
9 C101
10 A/C Refrigerant Pressure Sensor
11 Engine Wiring Harness
12 G171 (JL9)
Fig 6: Steering Column Components
GM1390804Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel
2 Cruise Control On/Off Switch (K34)
3 Turn Signal/Multifunction Switch
4 Ignition Lock Cylinder
5 Ignition Switch
6 Inflatable Restraint Steering Wheel Module Coil
7 C203 (UK3)
8 Inflatable Restraint Steering Wheel Module Connector
Fig 7: Upper Left Of Instrument Panel Component Views
GM1323986Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Light Sensor
2 Sun Load Sensor (CJ2)
3 G203
Fig 8: Right Side Of The I/P Component Views - Front
GM1250639Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 G200
3 Fuse Block - I/P
4 I/P Wiring Harness
5 C290
6 Body Wiring Harness
7 C200
Fig 9: Left Side Of The Passenger Compartment Connectors
GM1340808Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Wiring Harness
2 C351
3 Park Brake Cable
4 G301
5 C301
6 C311
7 Body Wiring Harness
Fig 10: Left Side Of Rear Compartment Connectors
GM1367423Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RR Connector
2 G401
3 P425
4 Evaporative Emissions (EVAP) Canister Vent Solenoid Connector
5 C402
