Interior Lights Schematics

Fig 1: Lamp Controls Schematic
GM862541Courtesy of GENERAL MOTORS CORP.

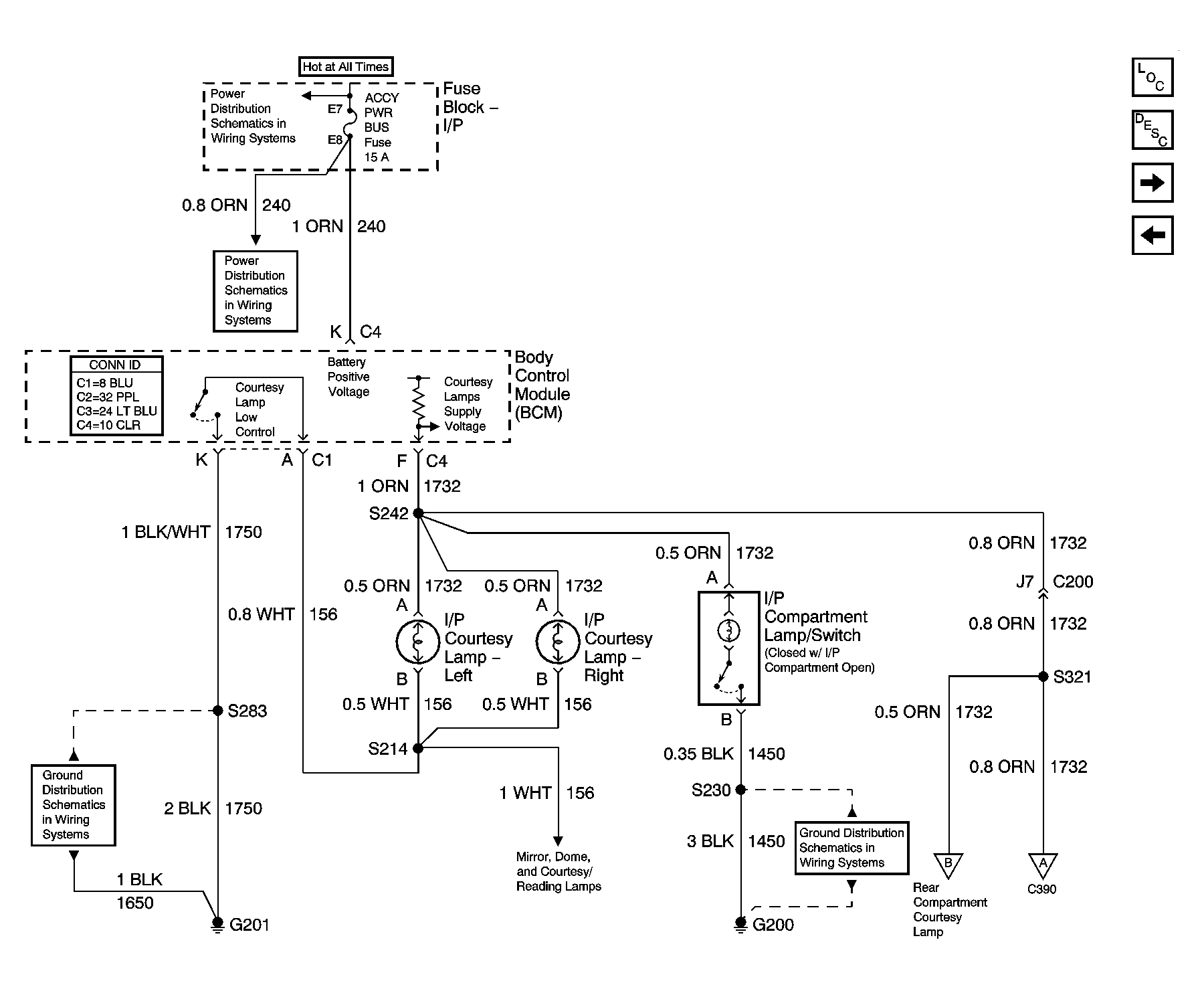

Fig 2: I/P Courtesy and Compartment Lamps Schematic
GM1381203Courtesy of GENERAL MOTORS CORP.

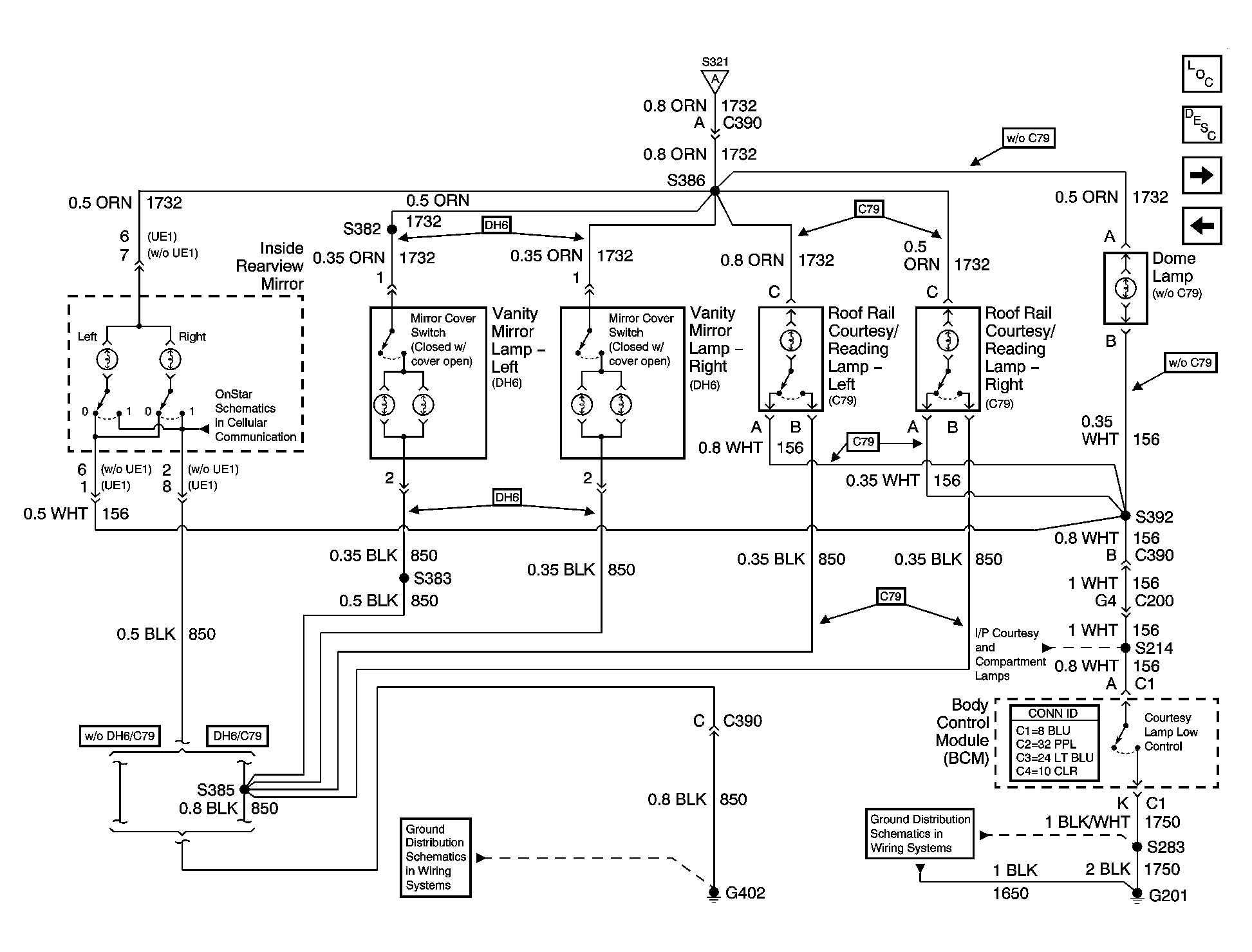

Fig 3: Mirror, Dome and Courtesy/Reading Lamps Schematic
GM1381207Courtesy of GENERAL MOTORS CORP.
Fig 4: Rear Compartment Courtesy Lamp Schematic
GM1381212Courtesy of GENERAL MOTORS CORP.
