Instrument Cluster Schematics

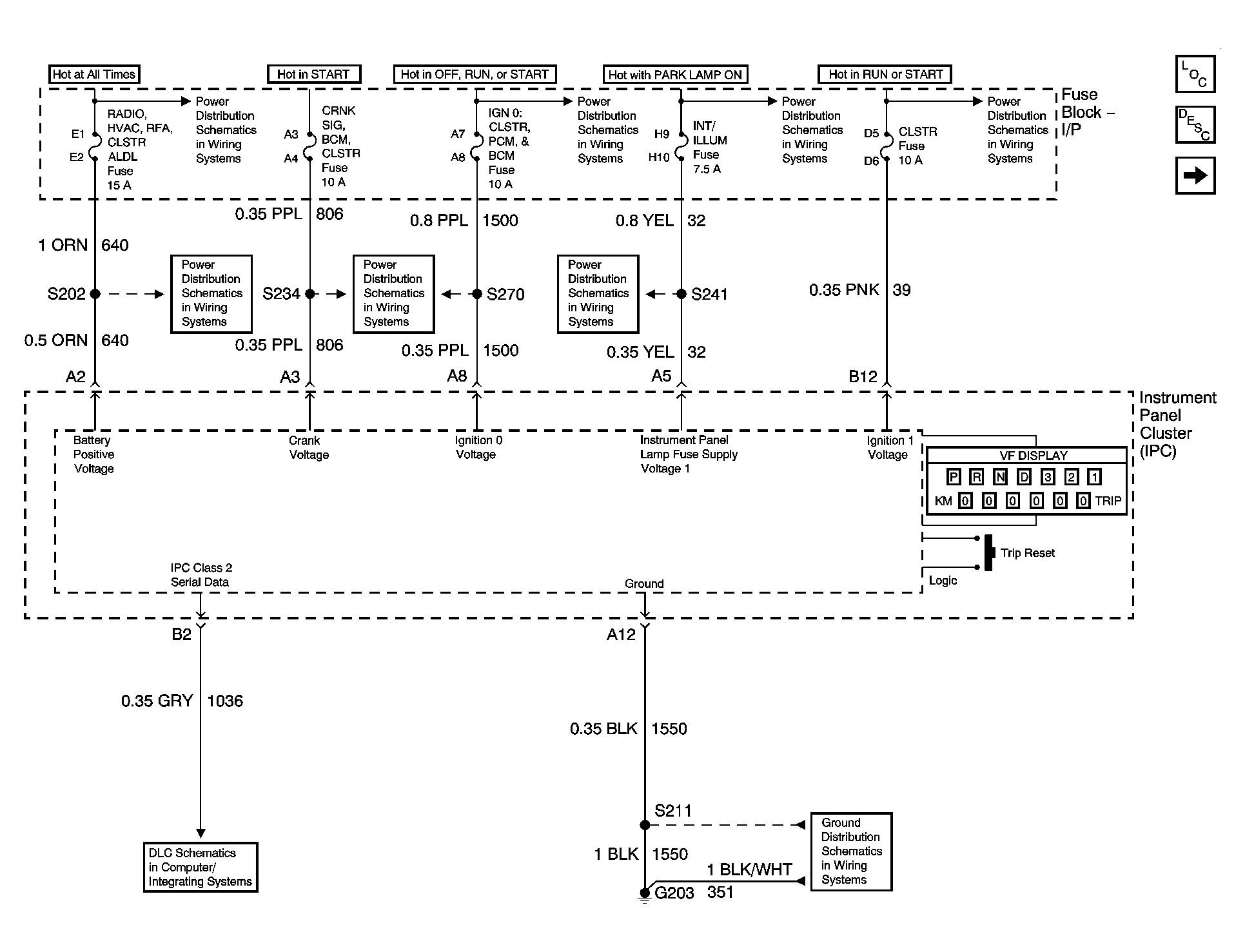

Fig 1: Power, Ground, and Serial Data Schematic
GM1379552Courtesy of GENERAL MOTORS CORP.

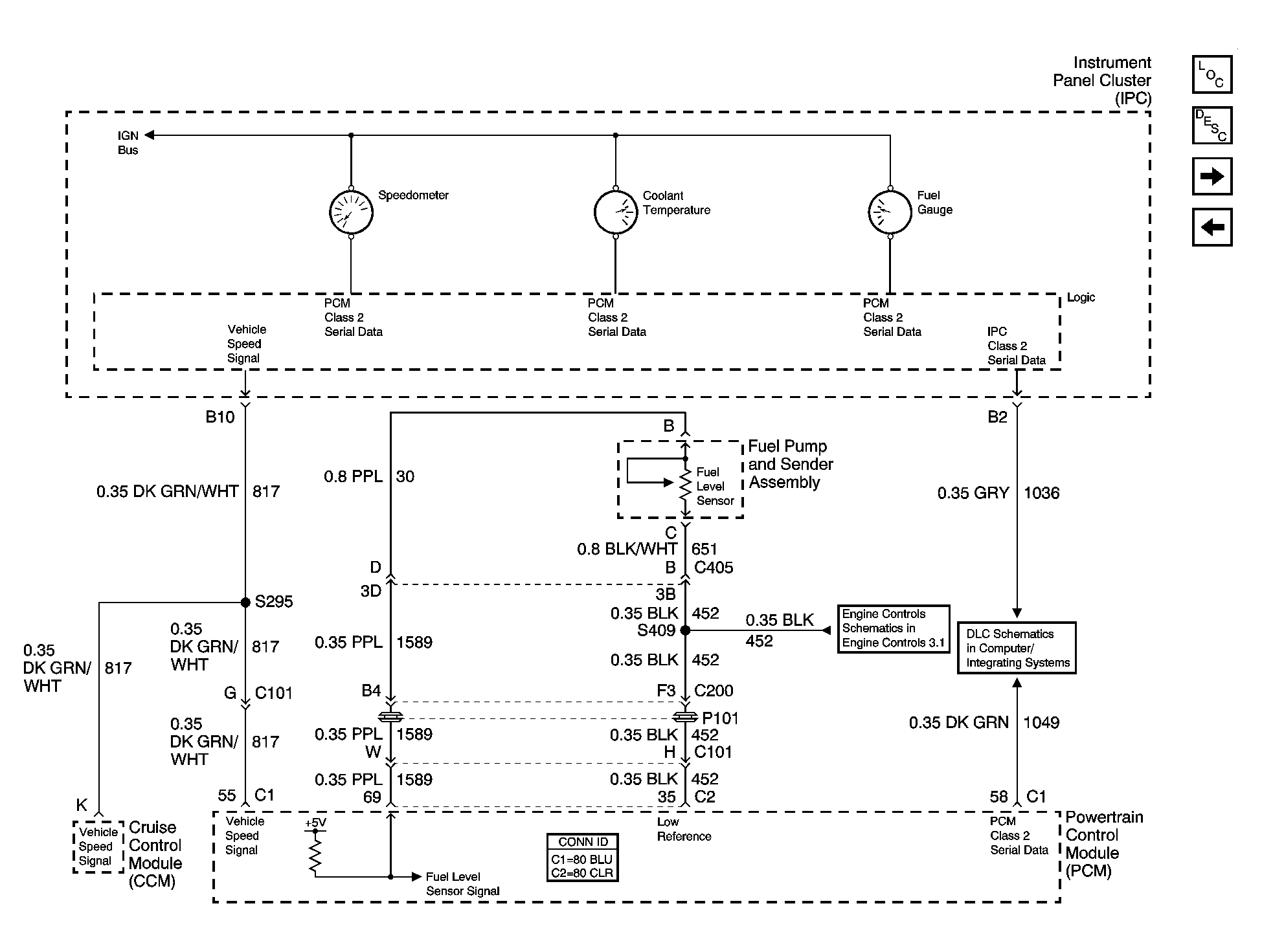

Fig 2: Gages Schematic
GM1379556Courtesy of GENERAL MOTORS CORP.

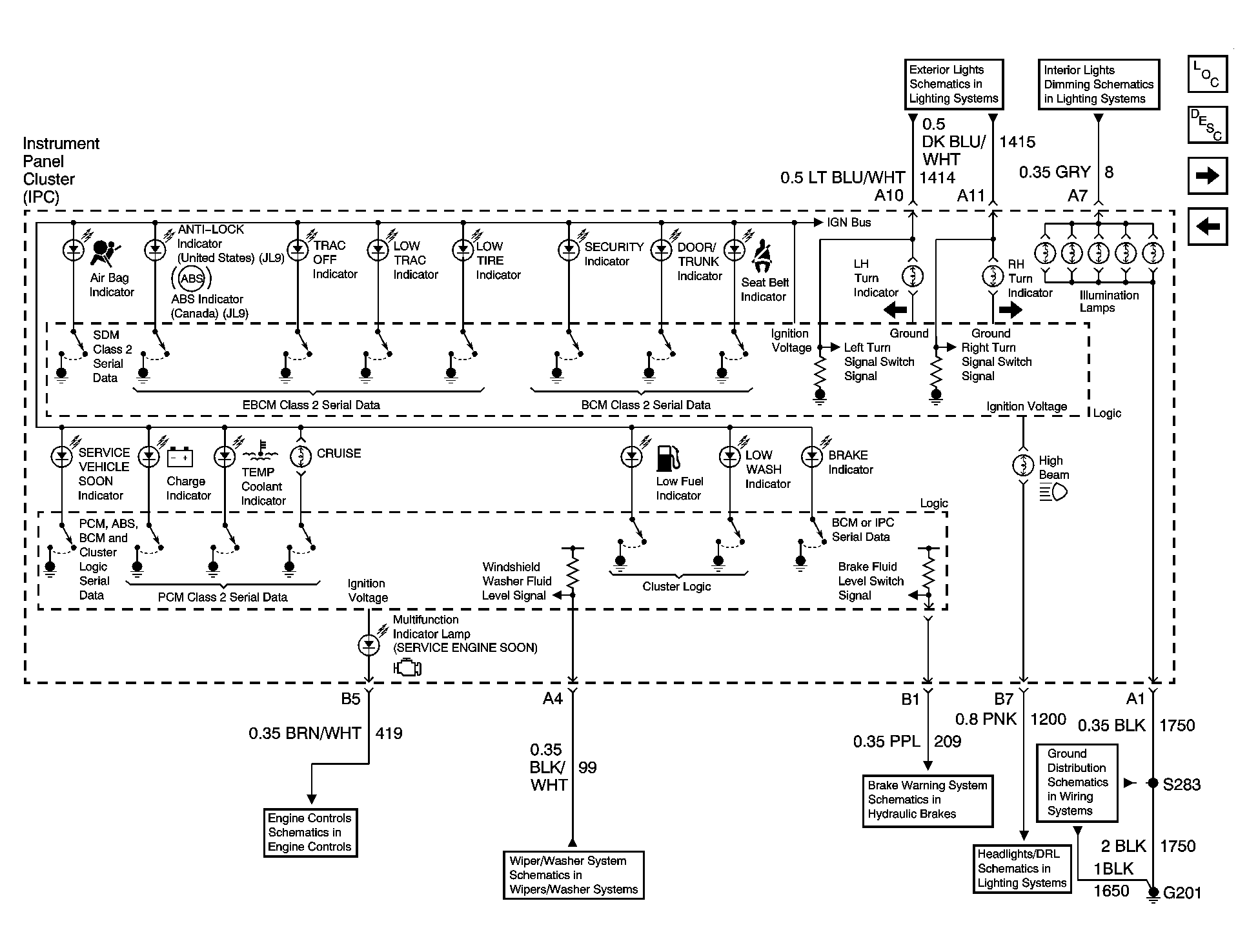

Fig 3: Indicators Schematics, 1 of 2
GM1379562Courtesy of GENERAL MOTORS CORP.
Fig 4: Indicators Schematics, 2 of 2
GM1379565Courtesy of GENERAL MOTORS CORP.
