Defroster Grille Replacement

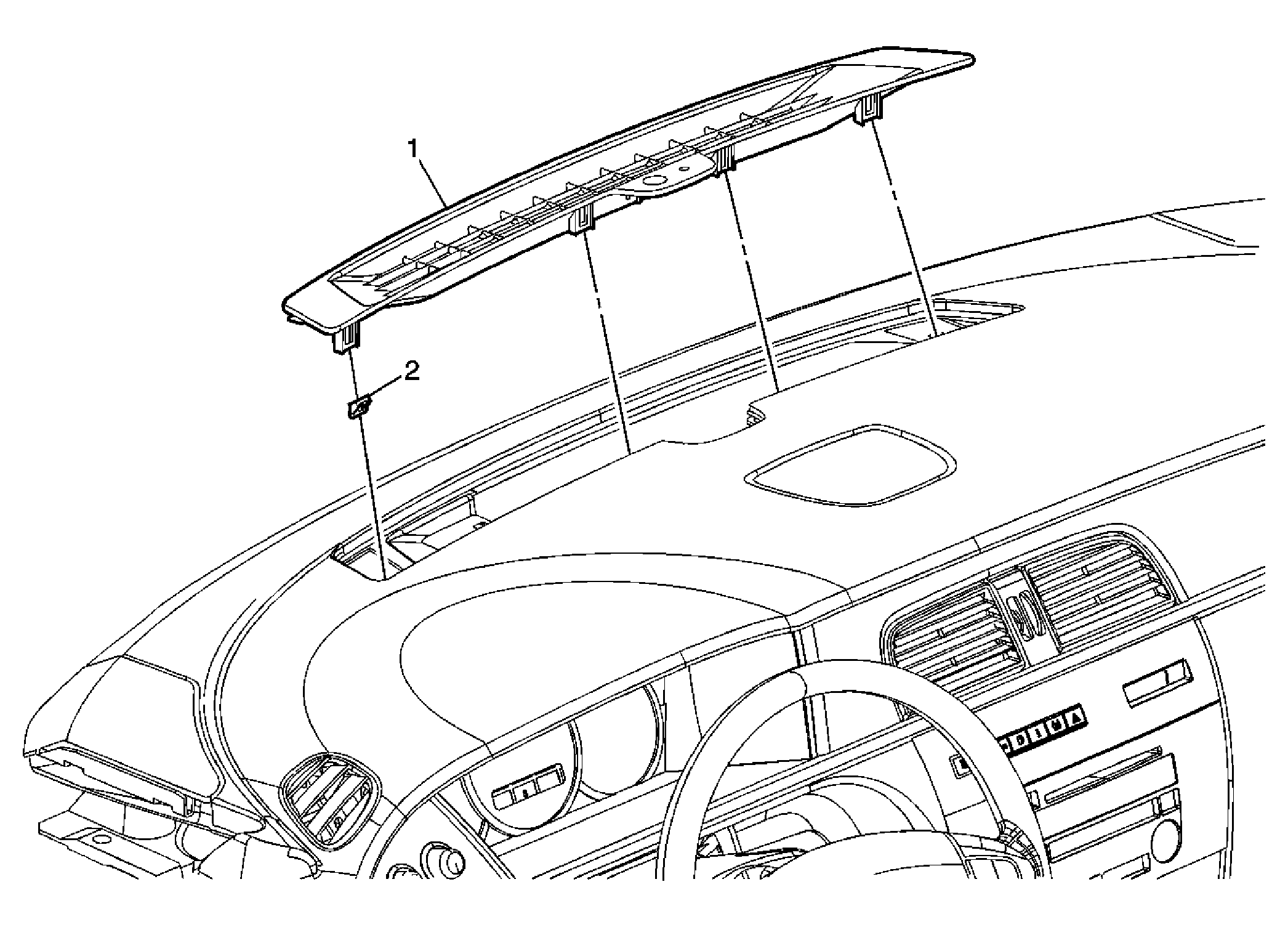

Fig 1: Defroster Grille
GM1552265Courtesy of GENERAL MOTORS CORP.
Defroster Grille Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Grille, Windshield Defroster Nozzle
Tip:  Disconnect electrical connectors.
2 Retaining Clip, Windshield Defroster Nozzle Grille (Qty: 4)
