HVAC Schematics

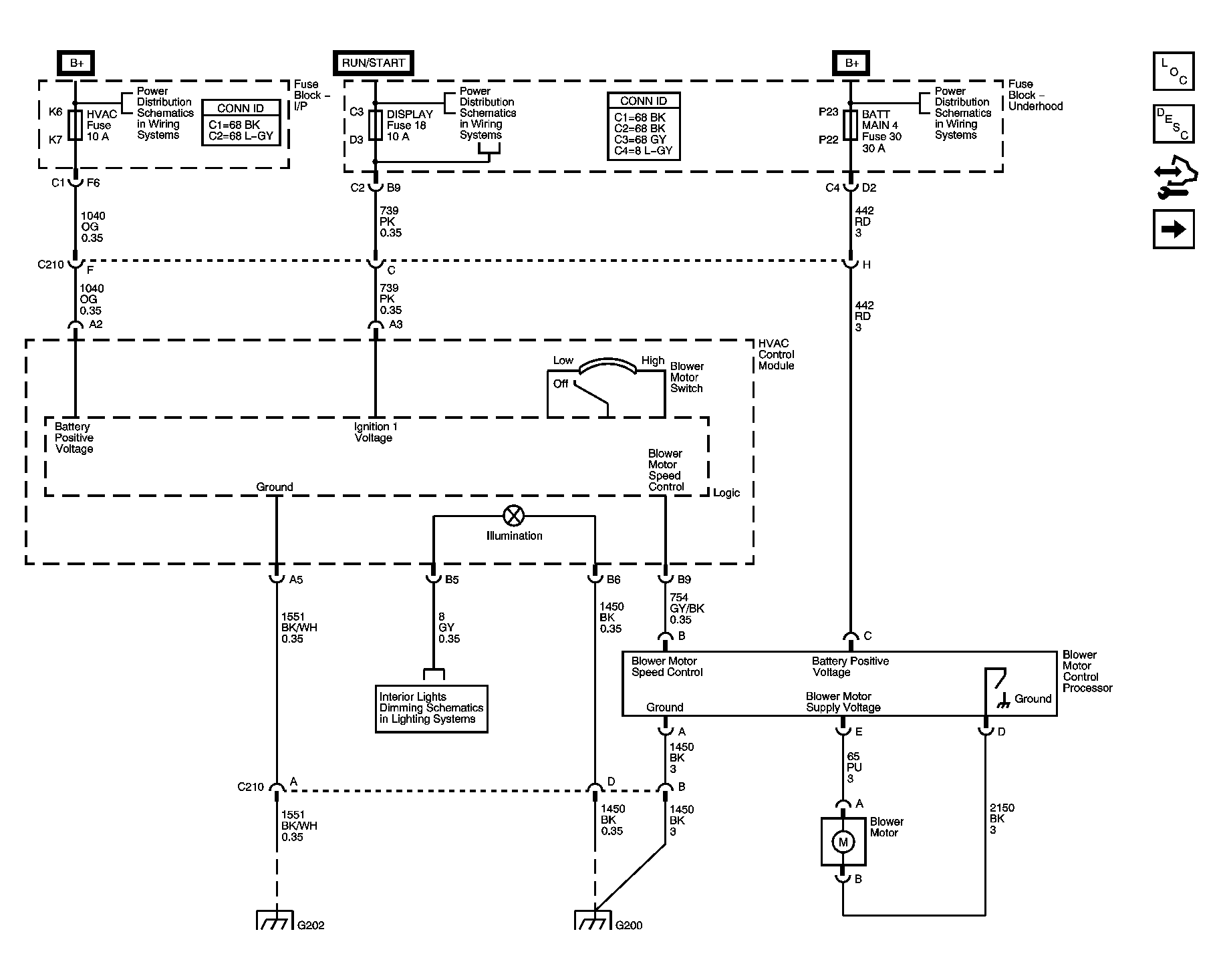

Fig 1: Power, Ground, and Blower Controls Schematic
GM1434440Courtesy of GENERAL MOTORS CORP.

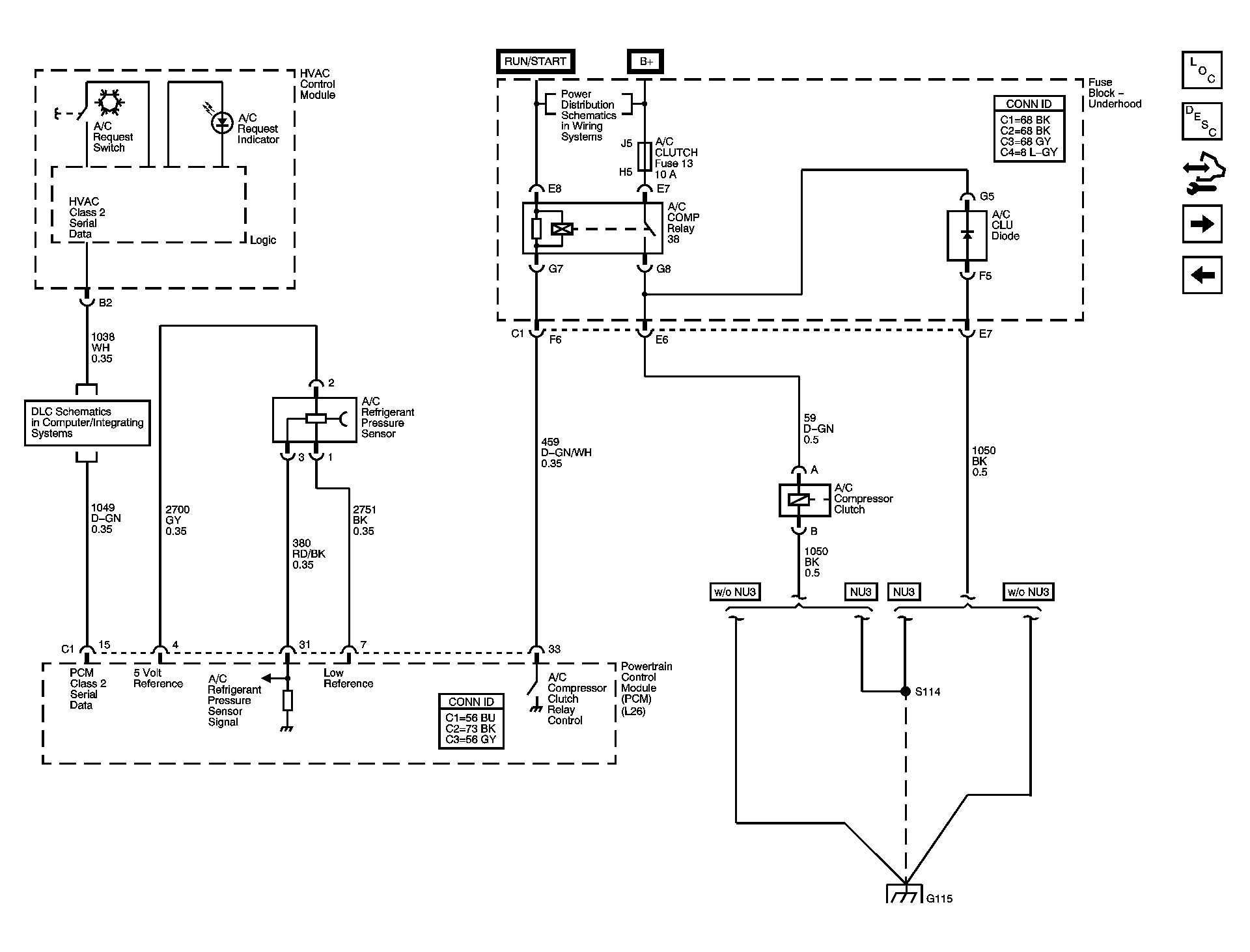

Fig 2: Compressor Controls and Serial Data Schematic
GM1434444Courtesy of GENERAL MOTORS CORP.

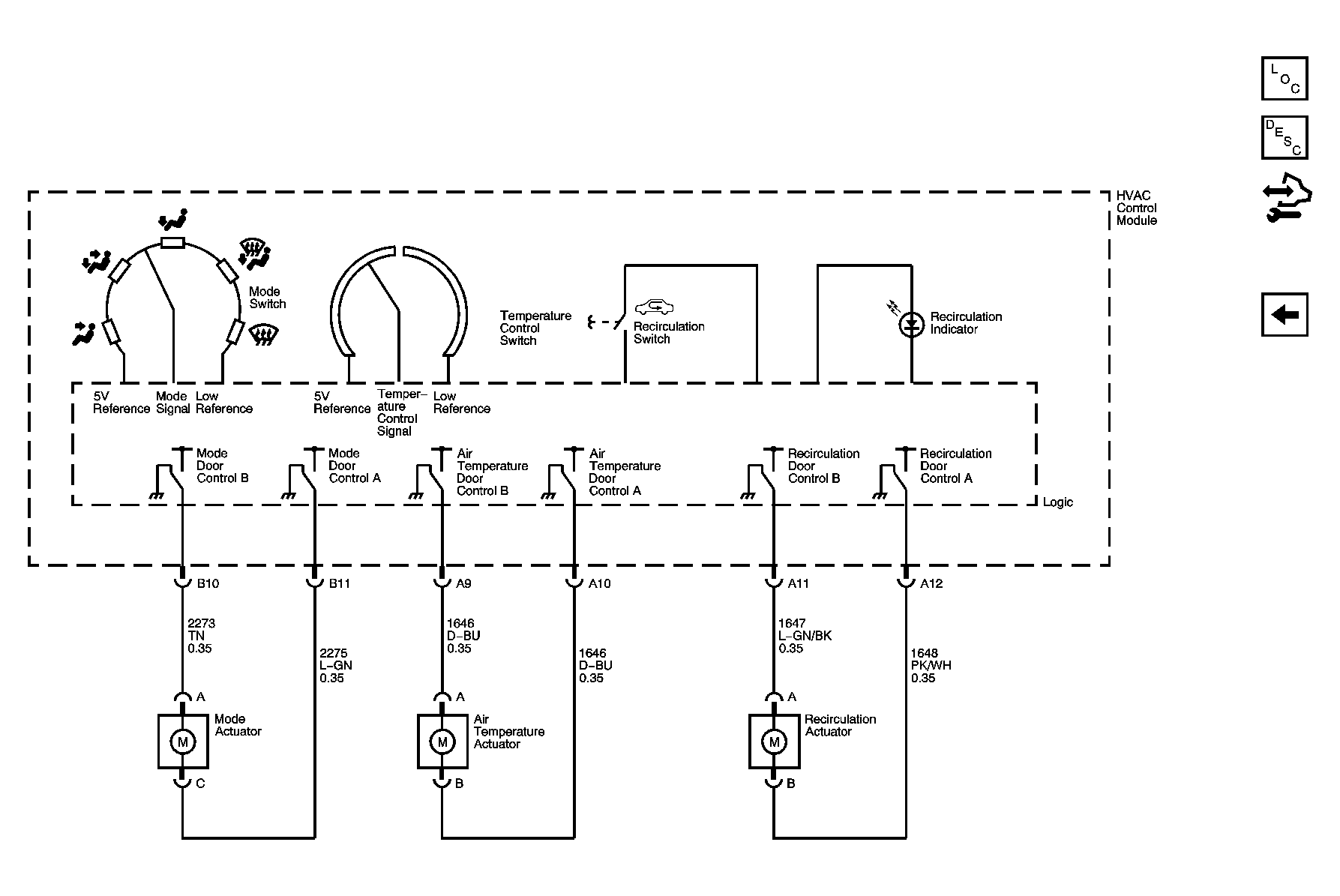

Fig 3: Mode and Air Temperature Controls Schematic
GM1434446Courtesy of GENERAL MOTORS CORP.
