HVAC Schematics

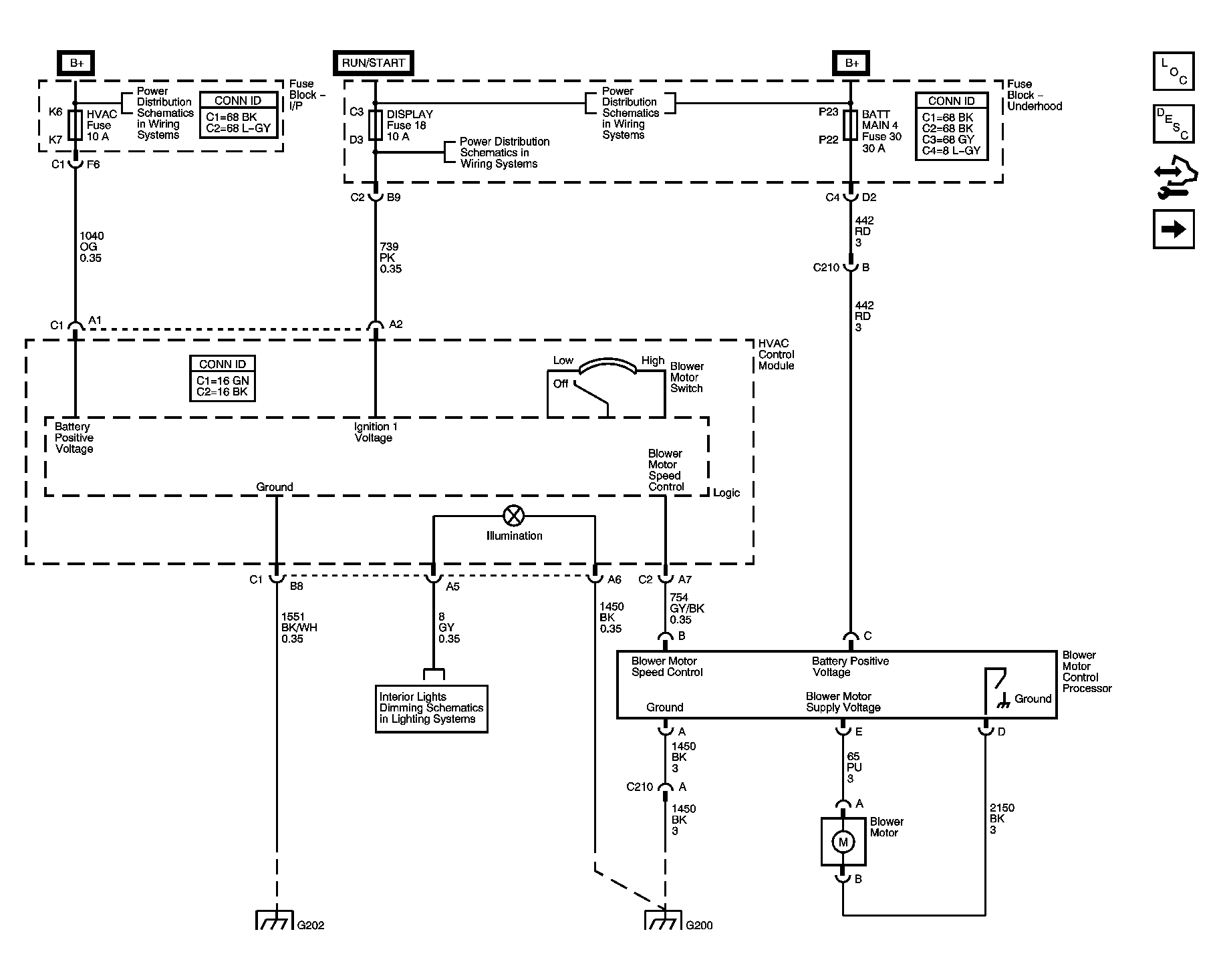

Fig 1: Power, Ground, and Blower Controls Schematic
GM1438958Courtesy of GENERAL MOTORS CORP.

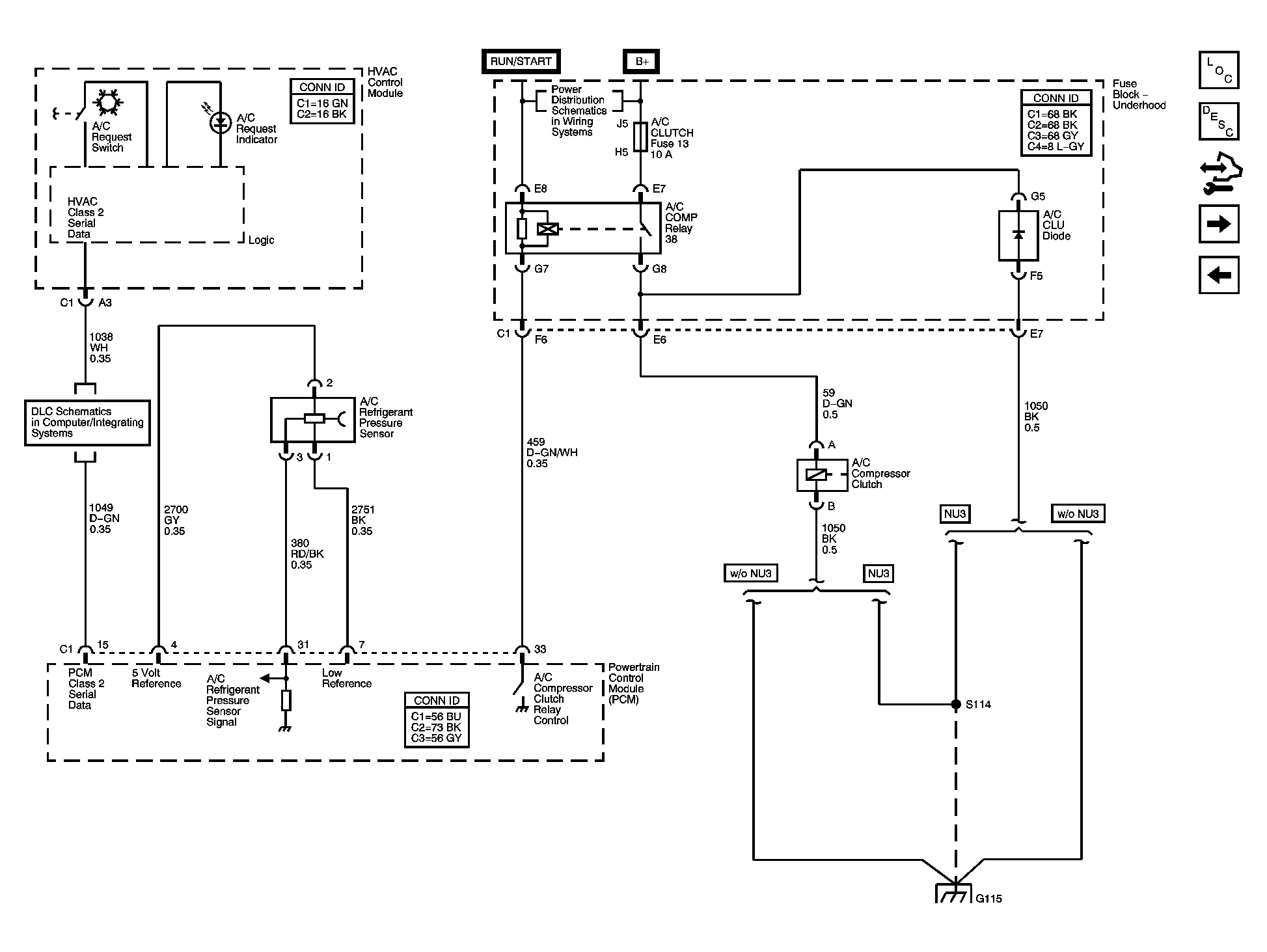

Fig 2: Compressor Controls and Serial Data (L26) Schematic
GM1438963Courtesy of GENERAL MOTORS CORP.

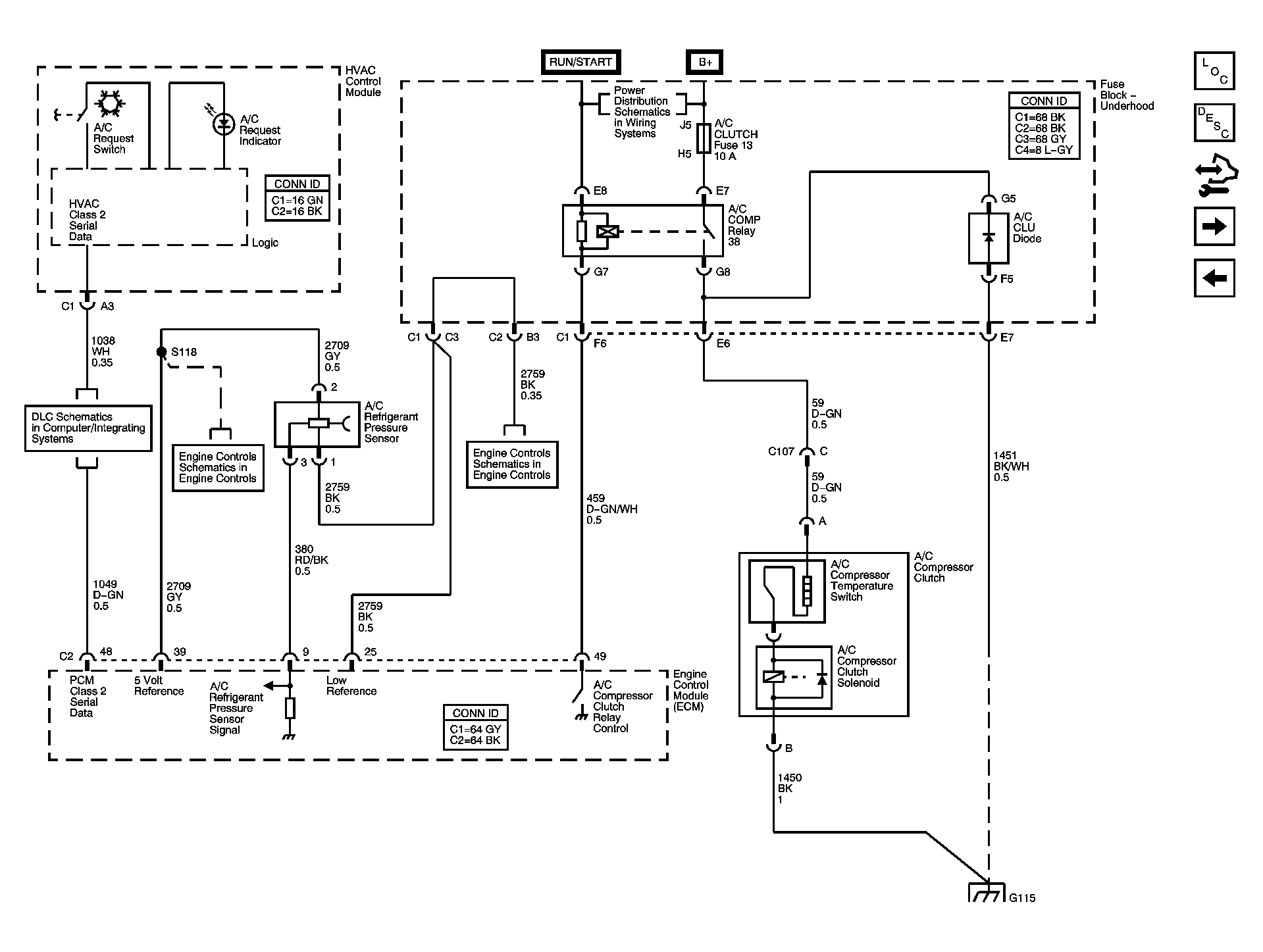

Fig 3: Compressor Controls and Serial Data (LY7) Schematic
GM1438967Courtesy of GENERAL MOTORS CORP.

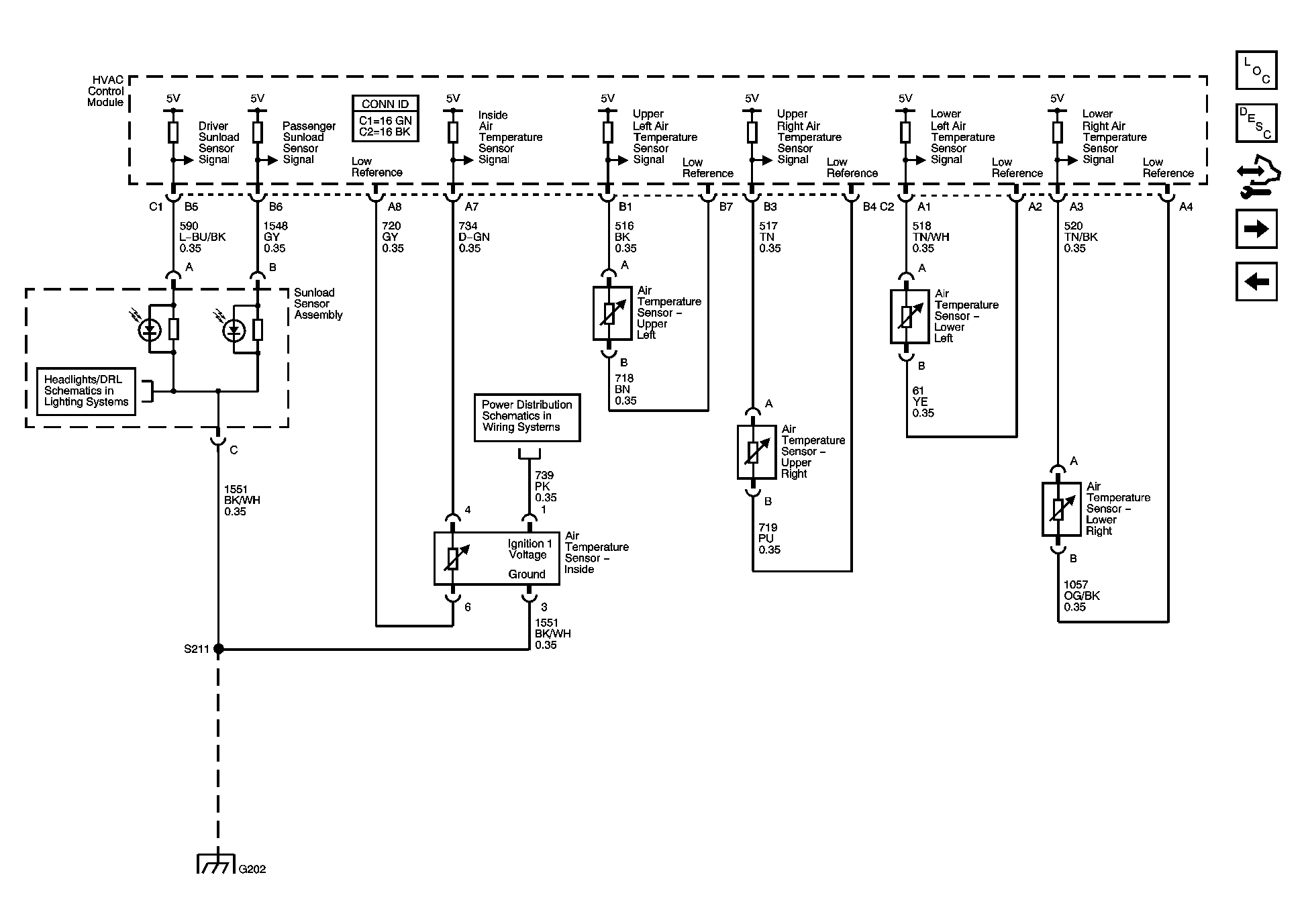

Fig 4: Air Temperature and Sunload Sensors Schematic
GM1438971Courtesy of GENERAL MOTORS CORP.
Fig 5: Air Delivery/Temperature Controls Schematic
GM1438982Courtesy of GENERAL MOTORS CORP.
