Harness Routing Views

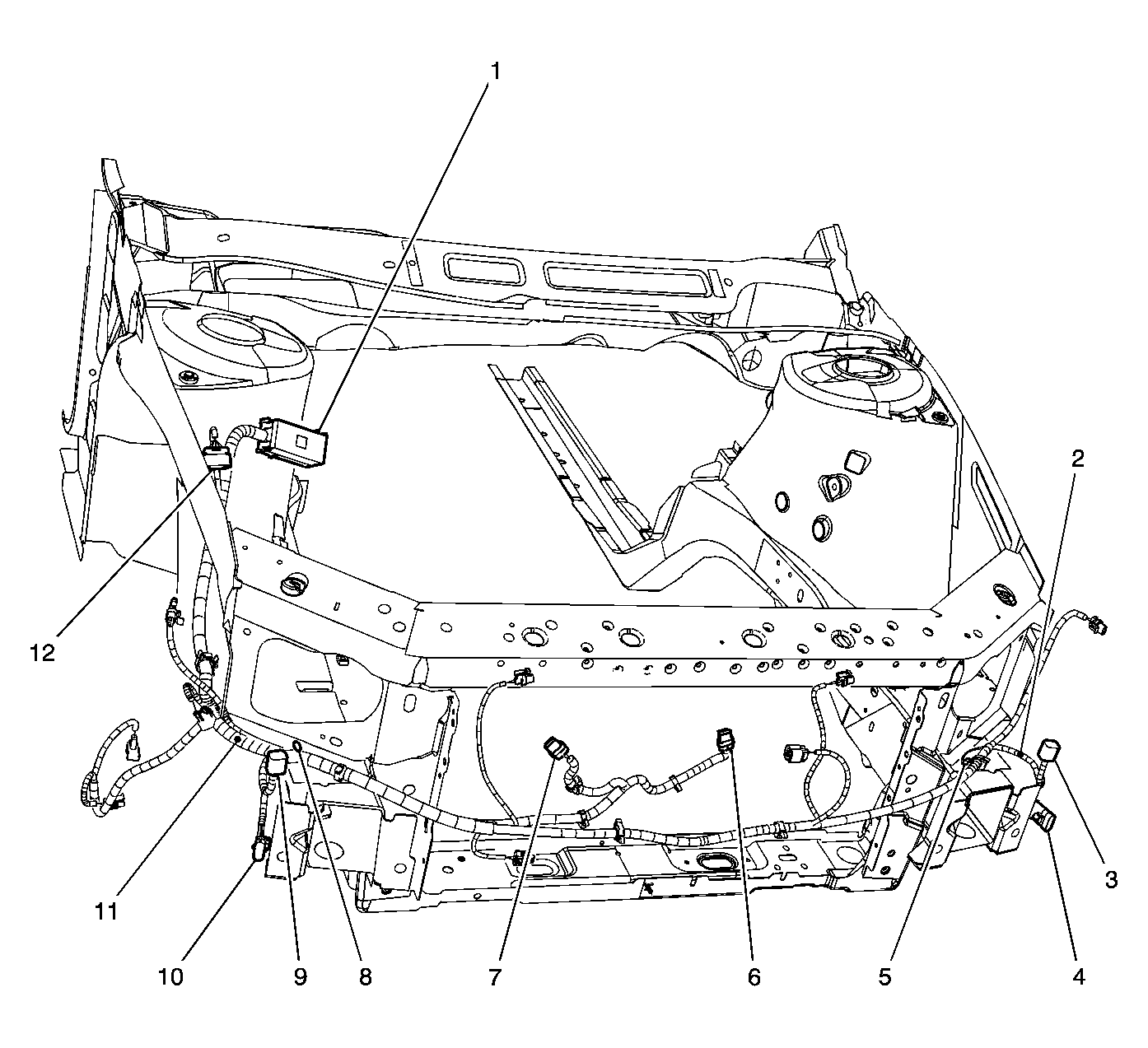

Fig 1: Forward Lamp Harness
GM1456729Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood C3
2 S112
3 C141
4 C143
5 G101
6 Cooling Fan - Left Connector
7 Cooling Fan - Right Connector
8 G100
9 C142
10 C144
11 S124
12 C120

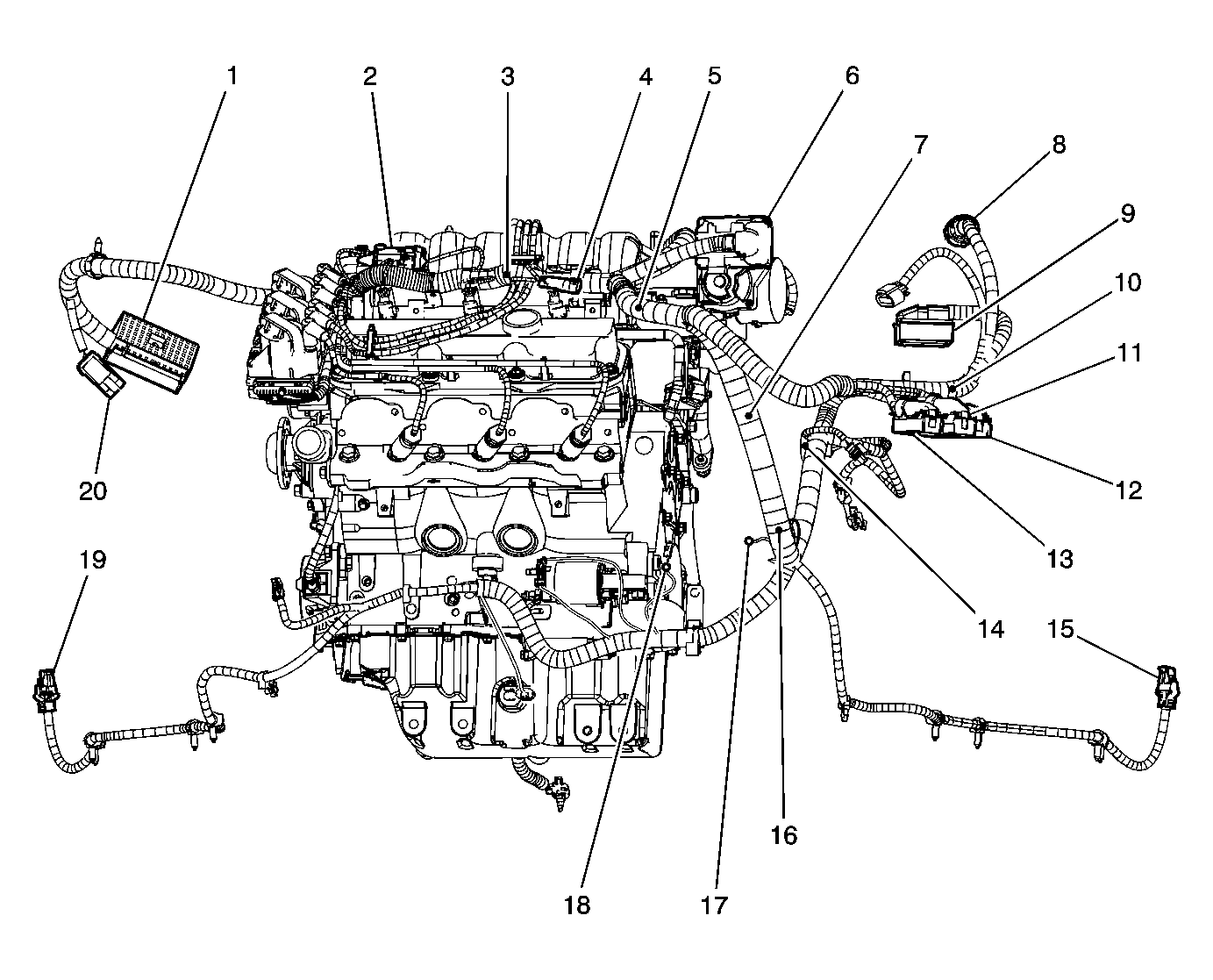

Fig 2: Front of the Engine (L26)
GM1456719Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood C1
2 C110
3 S109
4 C126
5 S102
6 Throttle Actuator Control (TAC) Module Connector
7 S101
8 C101
9 Electronic Brake Control Module (EBCM) Connector
10 S117 (NU3)
11 Powertrain Control Module (PCM) C2 Connector
12 Powertrain Control Module (PCM) C3 Connector
13 Powertrain Control Module (PCM) C1 Connector
14 C100
15 Wheel Speed Sensor (WSS) - LF Connector
16 S114 (NU3)
17 G115 (NU3)
18 G115 (JL9)
19 Wheel Speed Sensor (WSS) - RF Connector
20 C104

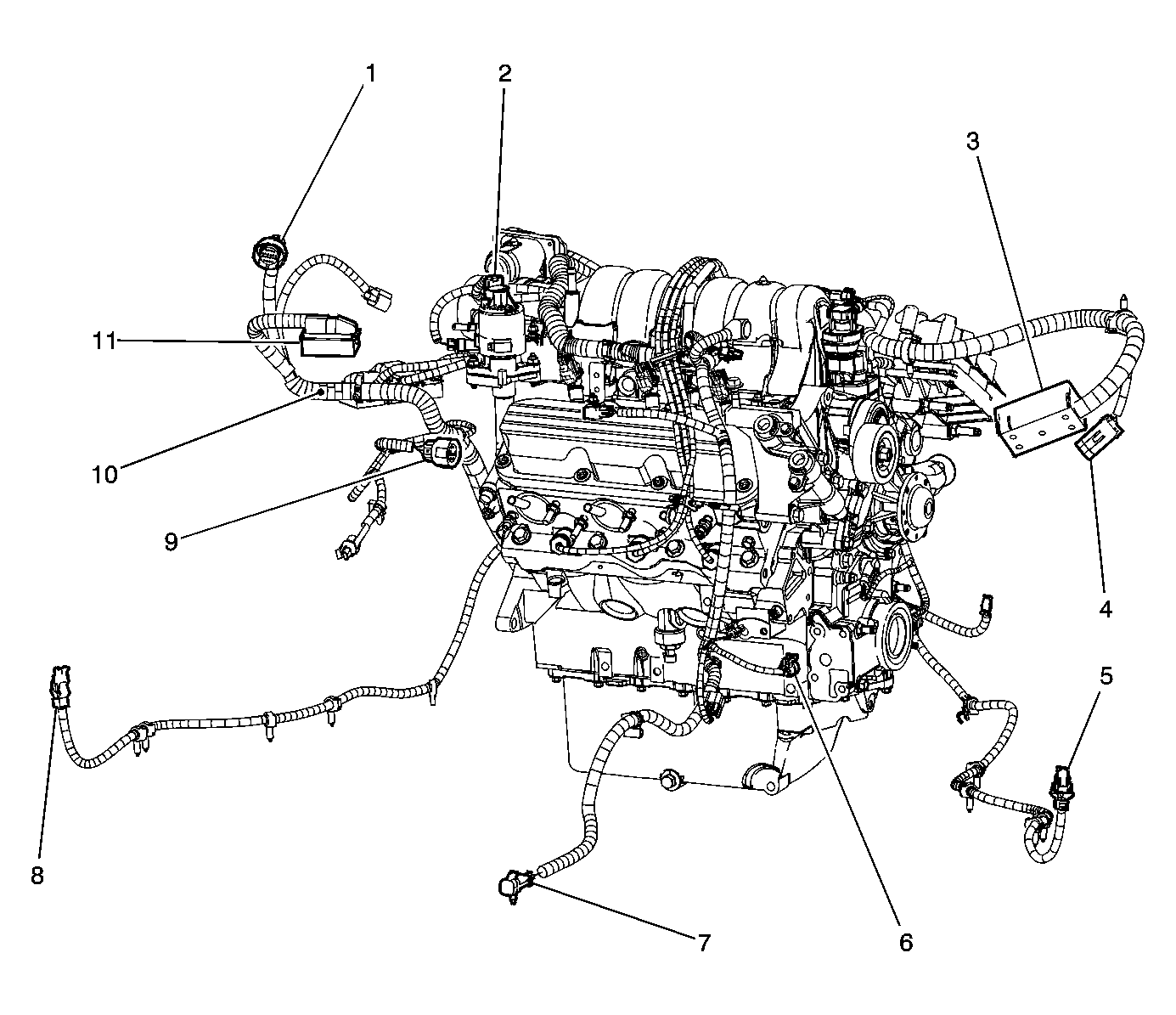

Fig 3: Rear of the Engine (L26)
GM1456723Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C101
2 Evaporative Emission (EVAP) Canister Purge Solenoid
3 Fuse Block - Underhood C1
4 C104
5 Wheel Speed Sensor (WSS) - RF Connector
6 Engine Oil Pressure (EOP) Sensor Connector
7 Heated Oxygen Sensor (HO2S) Connector
8 Wheel Speed Sensor (WSS) - LF Connector
9 C100
10 S113 (NU3)
11 Electronic Brake Control Module (EBCM) Connector
Fig 4: Front of the Engine (LY7)
GM1517337Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C107
2 S121
3 S120
4 S110
5 S119
6 C109
7 S103
8 S131
9 S133
10 G131
11 Engine Coolant Temperature (ECT) Sensor
12 Starter Solenoid
13 Starter
14 Engine Oil Pressure (EOP) Sensor
Fig 5: Rear Cylinder Head (LY7)
GM1517690Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cylinder Block
2 Throttle Actuator Control (TAC) Module Connector
3 S108
4 Engine Control Module (ECM) C1 Connector
5 C107
6 G115
7 S131
8 S130
9 G130

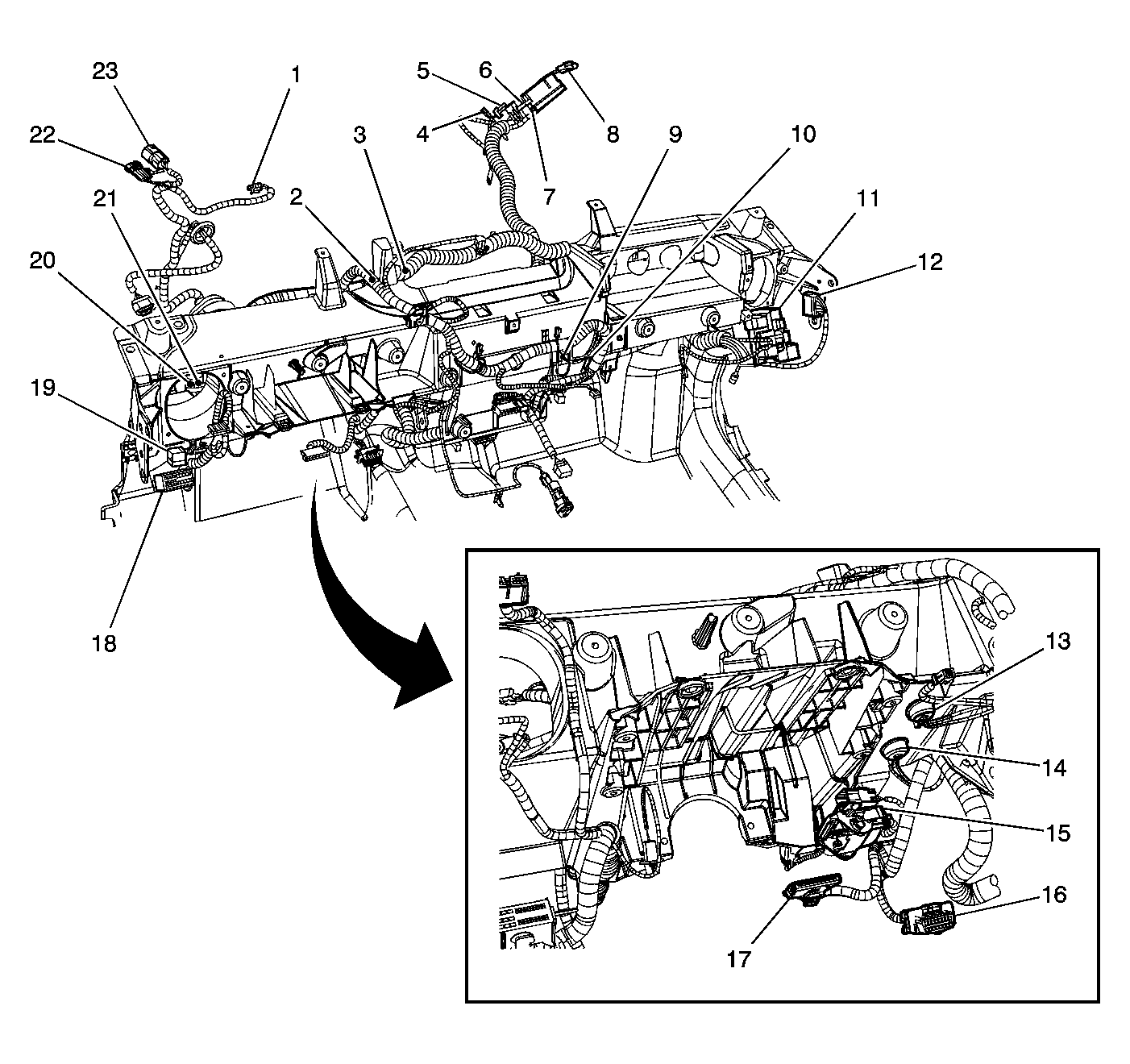

Fig 6: I/P Harness
GM1456703Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Fluid Level Switch
2 S213
3 S211
4 C104
5 C108
6 Fuse Block - Underhood C2
7 Fuse Block - Underhood C4
8 C120
9 G201
10 C210
11 Fuse Block - I/P
12 C200
13 G200
14 G202
15 C201
16 SP205
17 Data Link Connector (DLC)
18 Body Control Module (BCM) C1
19 C208
20 S204
21 S216
22 C102
23 C101

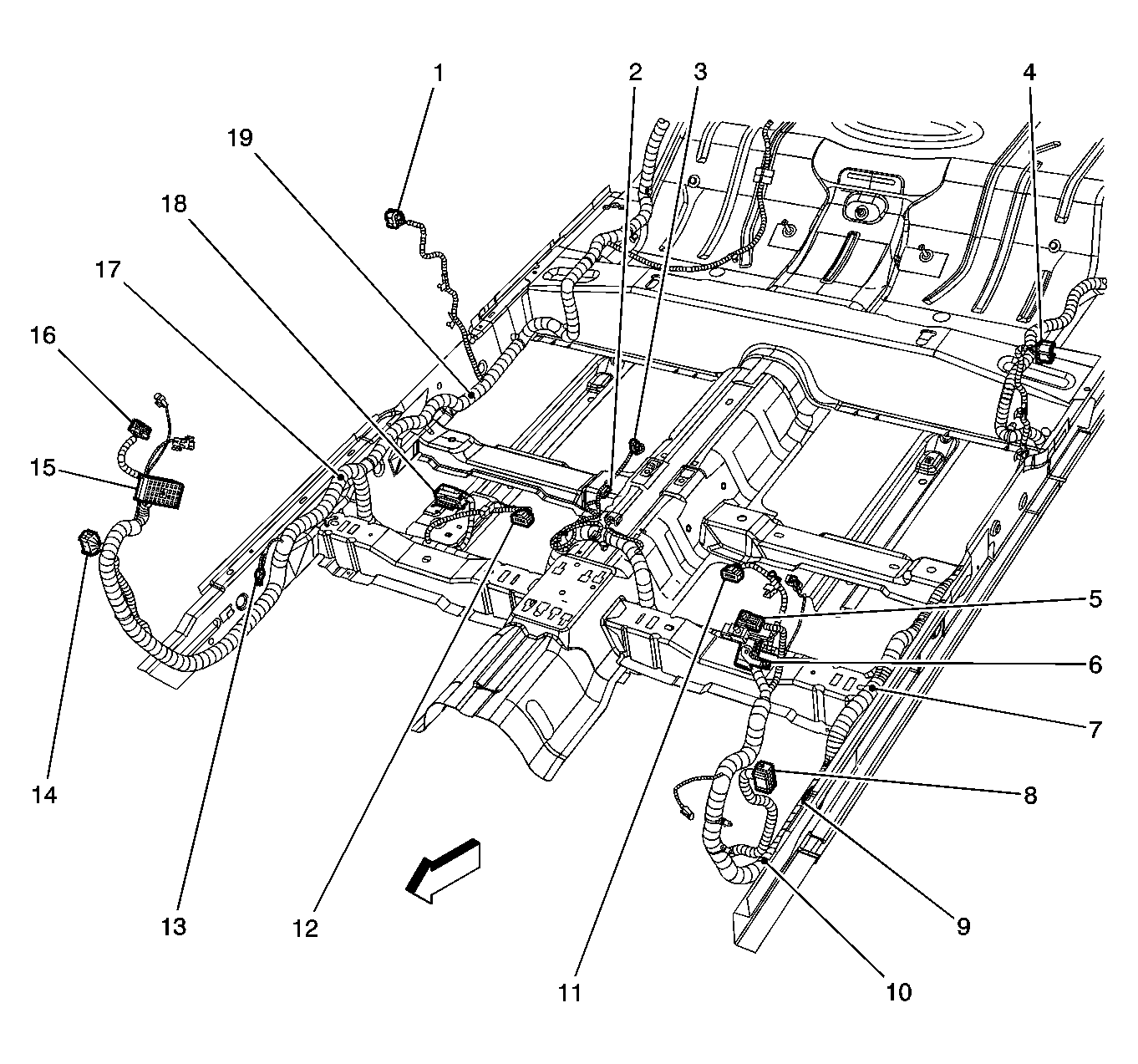

Fig 7: Body Harness - Front
GM1456696Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C356
2 C241
3 C240
4 C355
5 C208
6 Body Control Module (BCM) C2
7 S303
8 C301
9 G301
10 S350
11 C311
12 C313
13 G302
14 C302
15 Fuse Block - I/P C2
16 C200
17 S300
18 Inflatable Restraint Sensing and Diagnostic Module (SDM)
19 S406

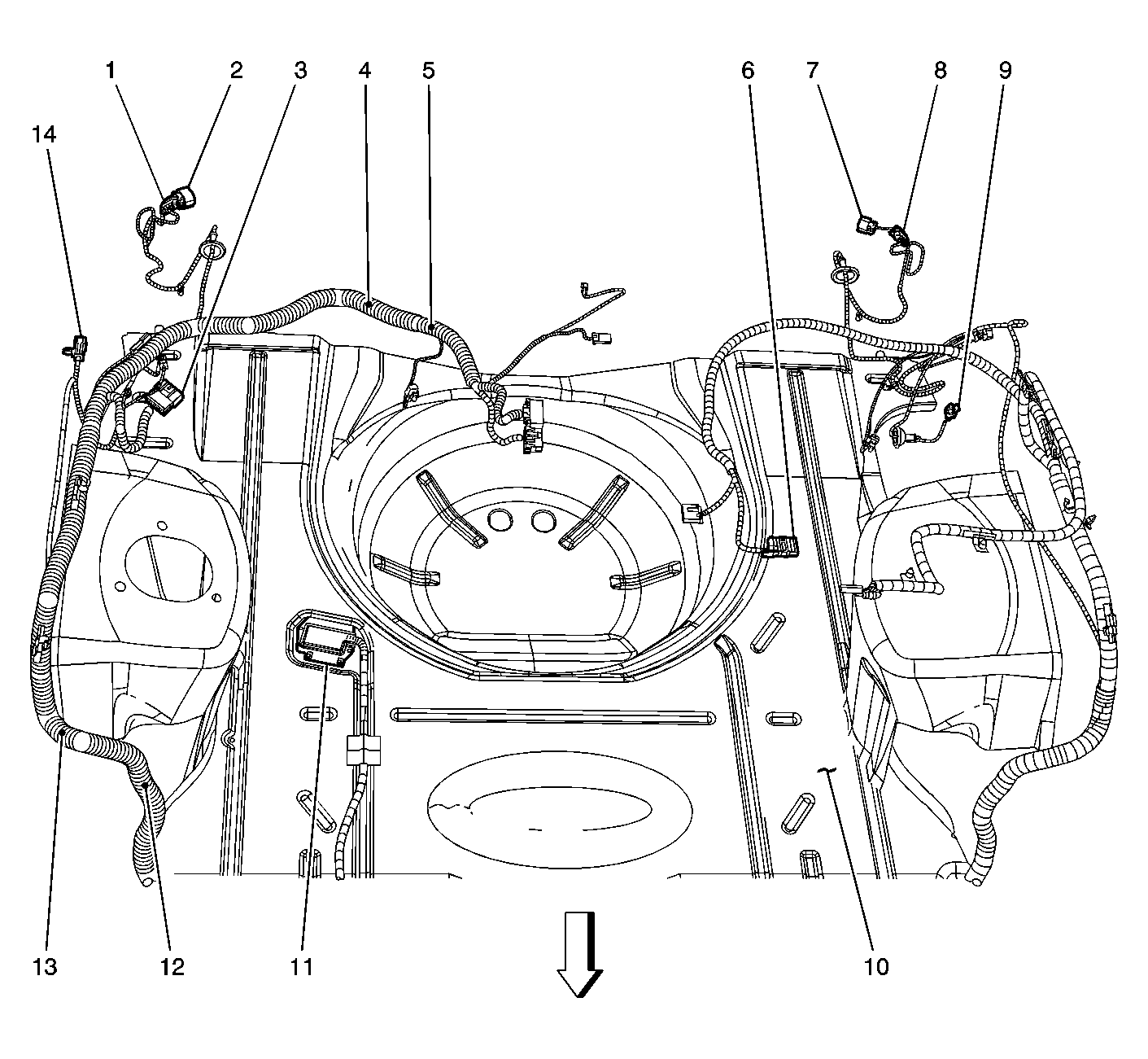

Fig 8: Body Harness - Rear
GM1456698Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C402
2 C450
3 C390
4 S360
5 S361
6 Rear Object Sensor Control Module Connector (UD7)
7 C401
8 C406
9 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
10 Rear Floor Pan
11 C405
12 S420
13 S407
14 C400
Fig 9: Console Harness
GM1456699Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet
2 C240
Fig 10: Steering Column
GM1456738Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Angle Sensor
2 C201
3 A/T Shiftlock Solenoid Connector
4 Horn Switch Connector
5 C277
6 Steering Wheel Controls
7 Multifunction Accessory Switch
8 Body Control Module (BCM) Connector

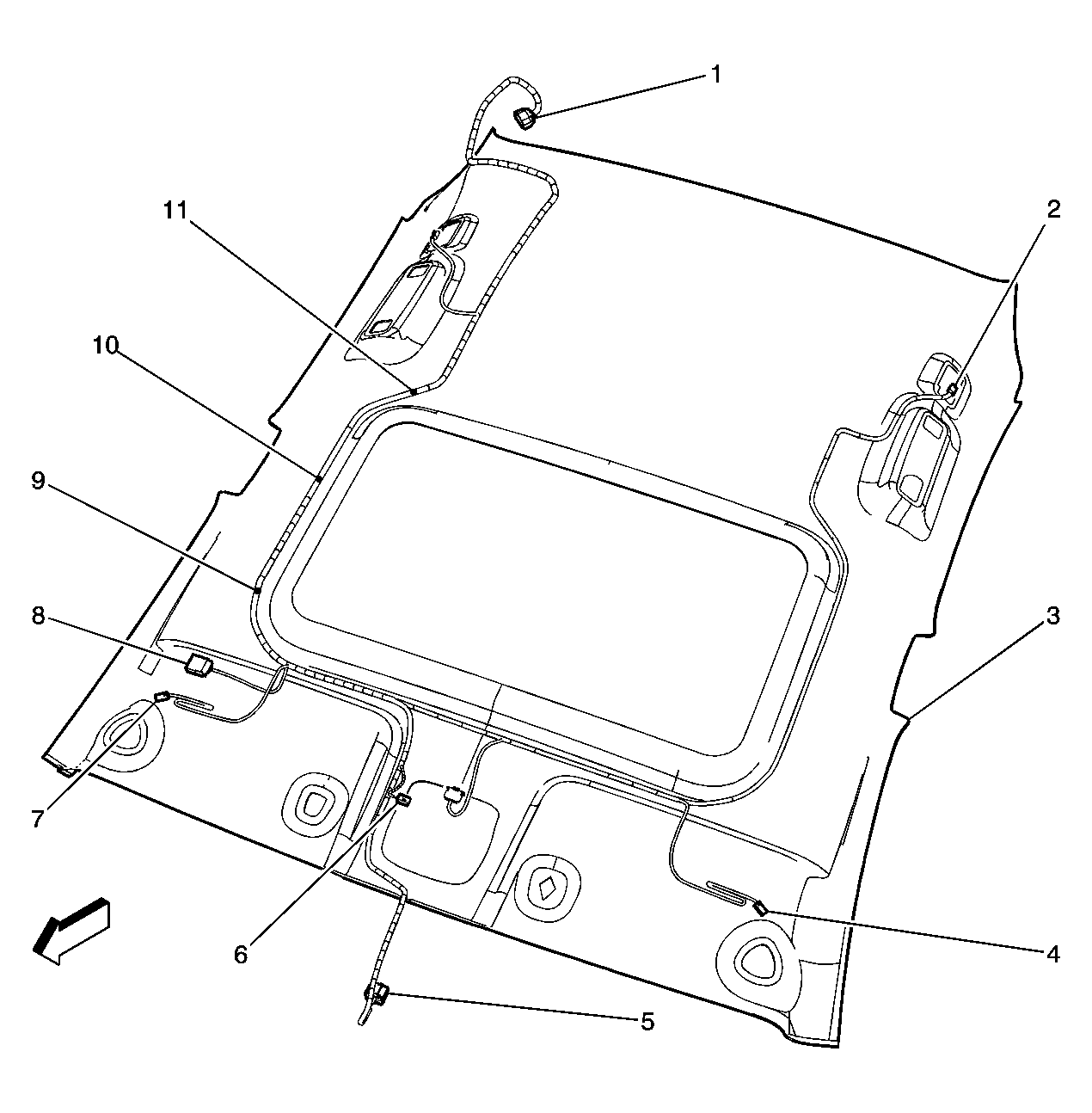

Fig 11: Headliner Harness (CF5)
GM1456725Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C390
2 Dome/Reading Lamp - Left Connector
3 Headliner
4 C317
5 Inside Rearview Mirror (ISRVM) Connector
6 Reading Lamp Overhead Console
7 C318
8 C398
9 S394
10 S393
11 S398

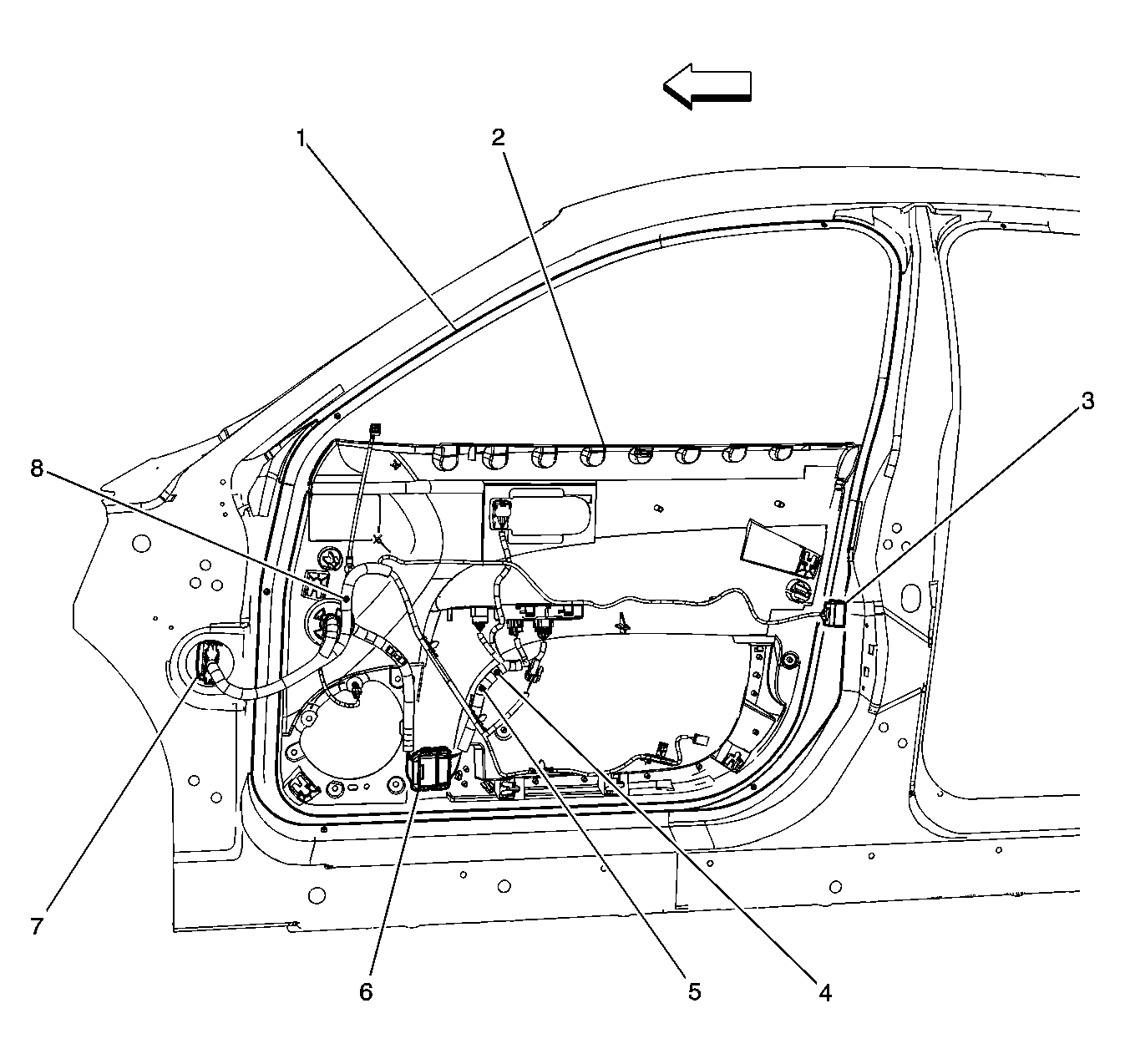

Fig 12: Driver Door Frame and Trim Harnesses
GM1456717Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Trim Panel
3 Door Latch Connector
4 S502
5 S501
6 C501
7 C260
8 S500

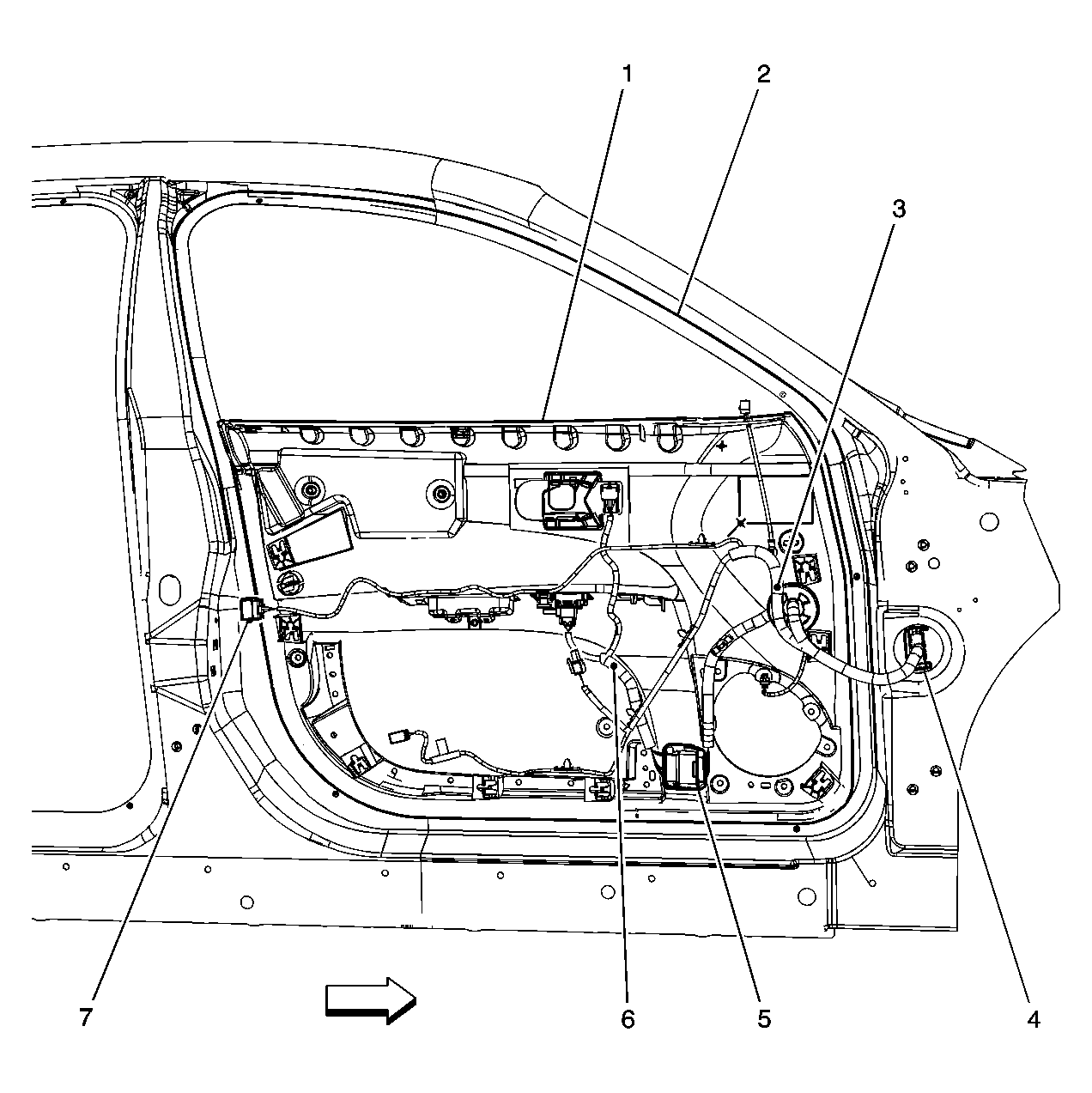

Fig 13: Passenger Door Frame and Trim Harnesses
GM1456714Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Trim Panel
2 Door Frame
3 S604
4 C261
5 C601
6 S605
7 Door Latch Connector

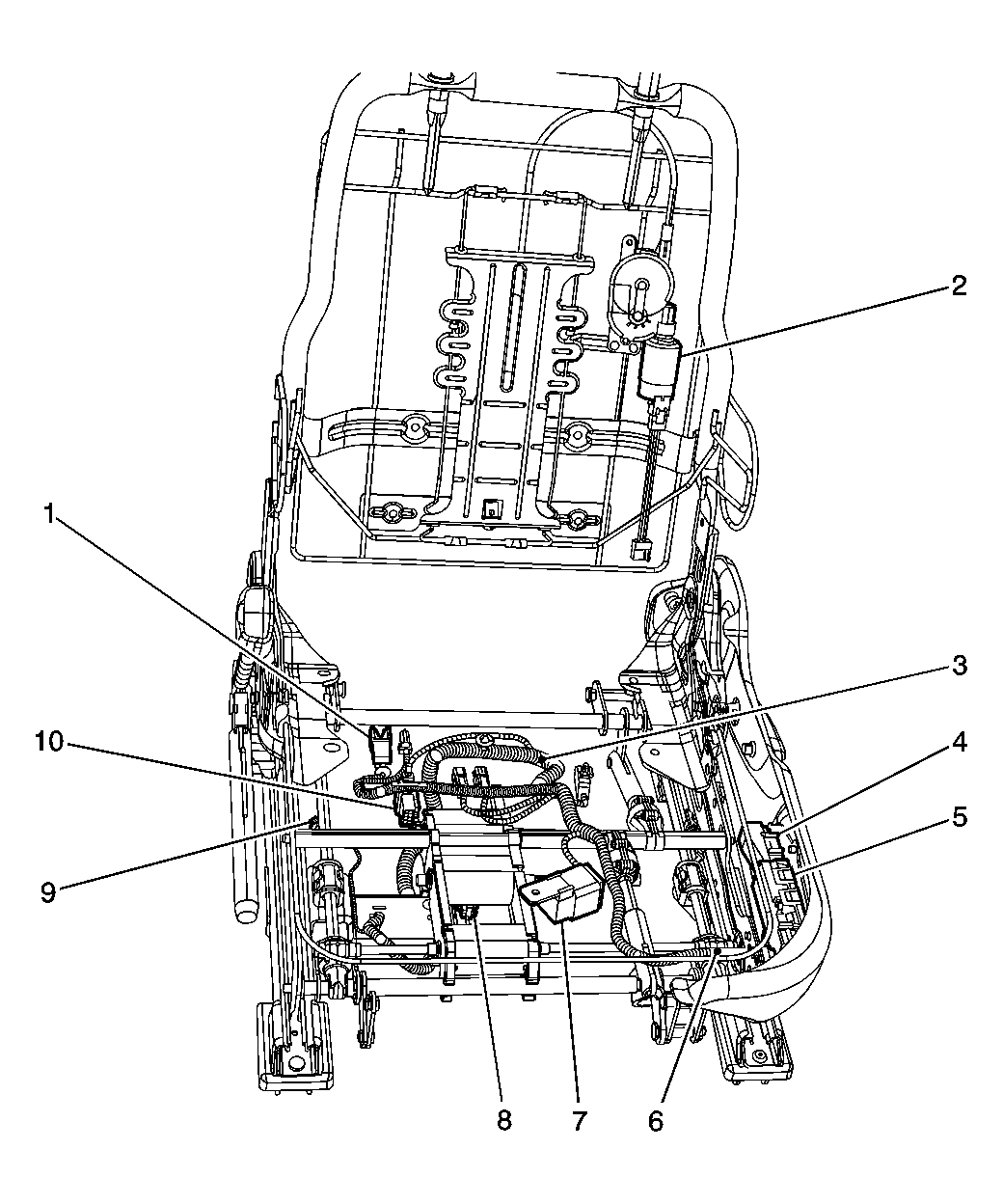

Fig 14: Driver Seat
GM1456692Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Pretensioner - Left
2 Lumbar Motor
3 S330
4 Lumbar Adjuster Switch - Driver
5 Seat Adjuster Switch - Driver
6 S331
7 Heated Seat Relay
8 C311
9 C316
10 Seat Adjuster Motor Assembly Connector

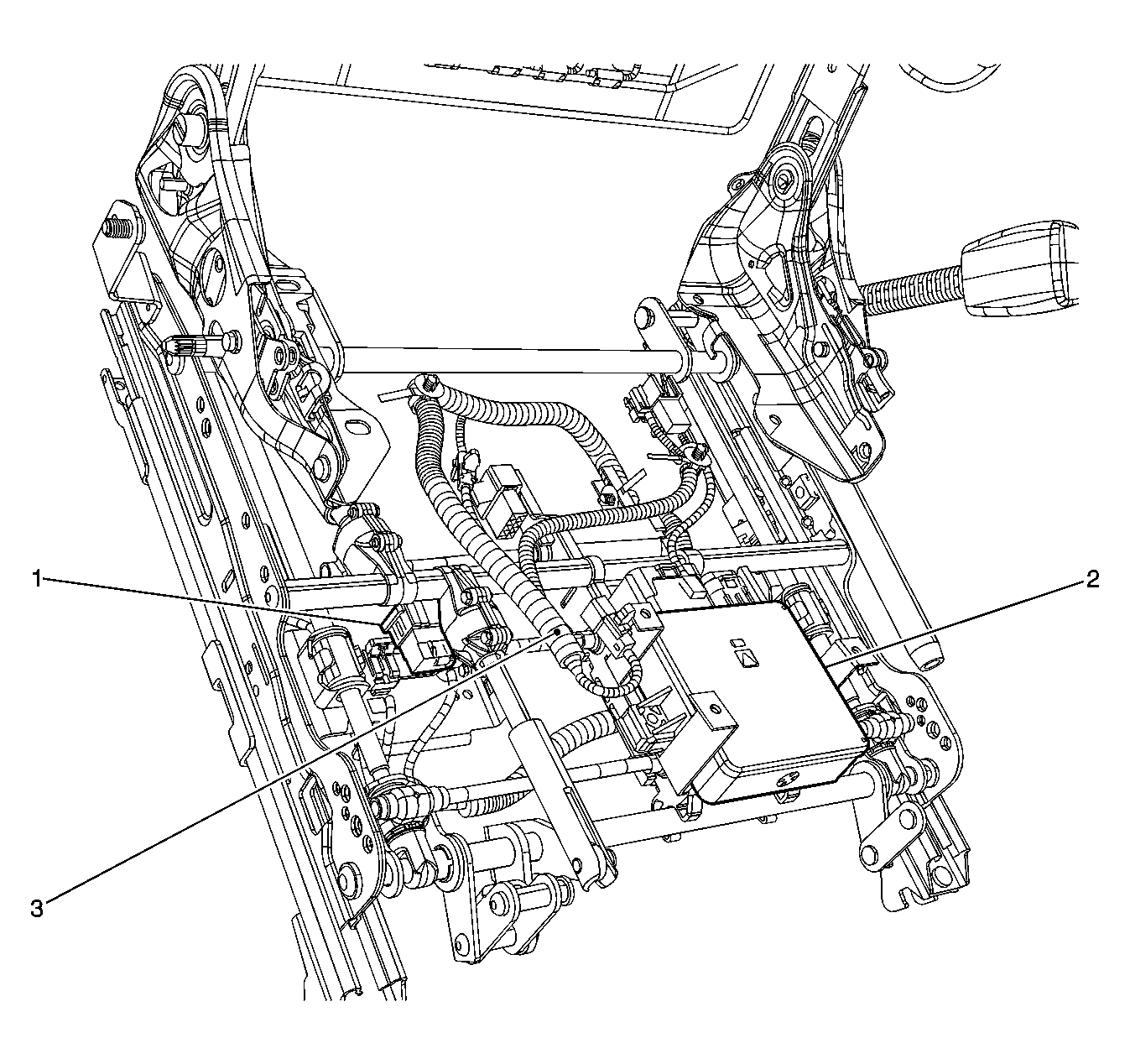

Fig 15: Passenger Seat
GM1456695Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C313
2 Inflatable Restraint Passenger Presence System (PPS) Module
3 S333
Fig 16: LR Door Harness
GM1456707Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window/Door Lock Switch Connector
2 Door Frame
3 Door Lock Actuator
4 Door Trim Panel
5 Window Motor Connector
6 C355

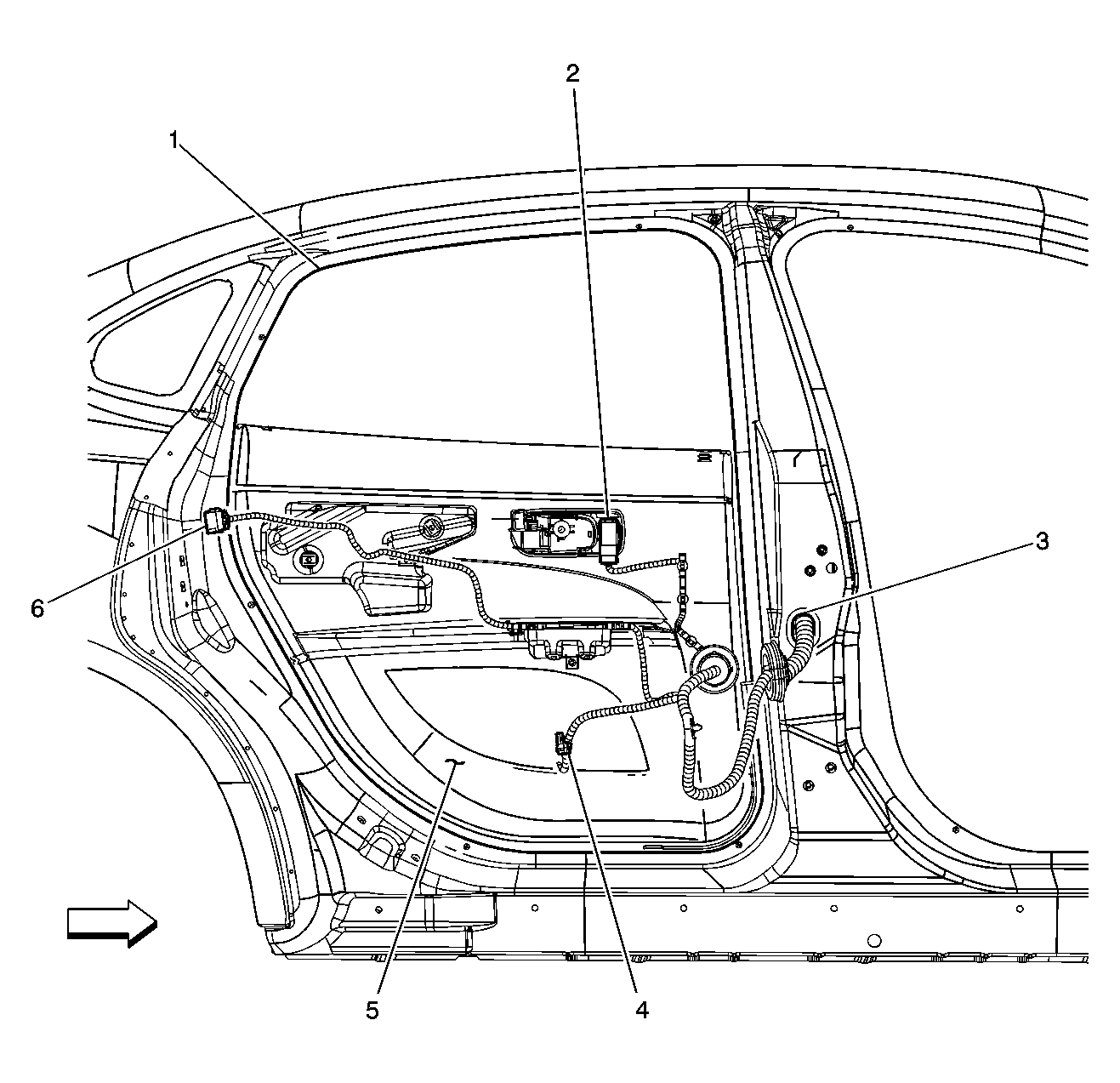

Fig 17: RR Door Harness
GM1456710Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Window/Door Lock Switch Connector
3 C356
4 Window Motor
5 Door Trim Panel
6 Door Latch Assembly Connector

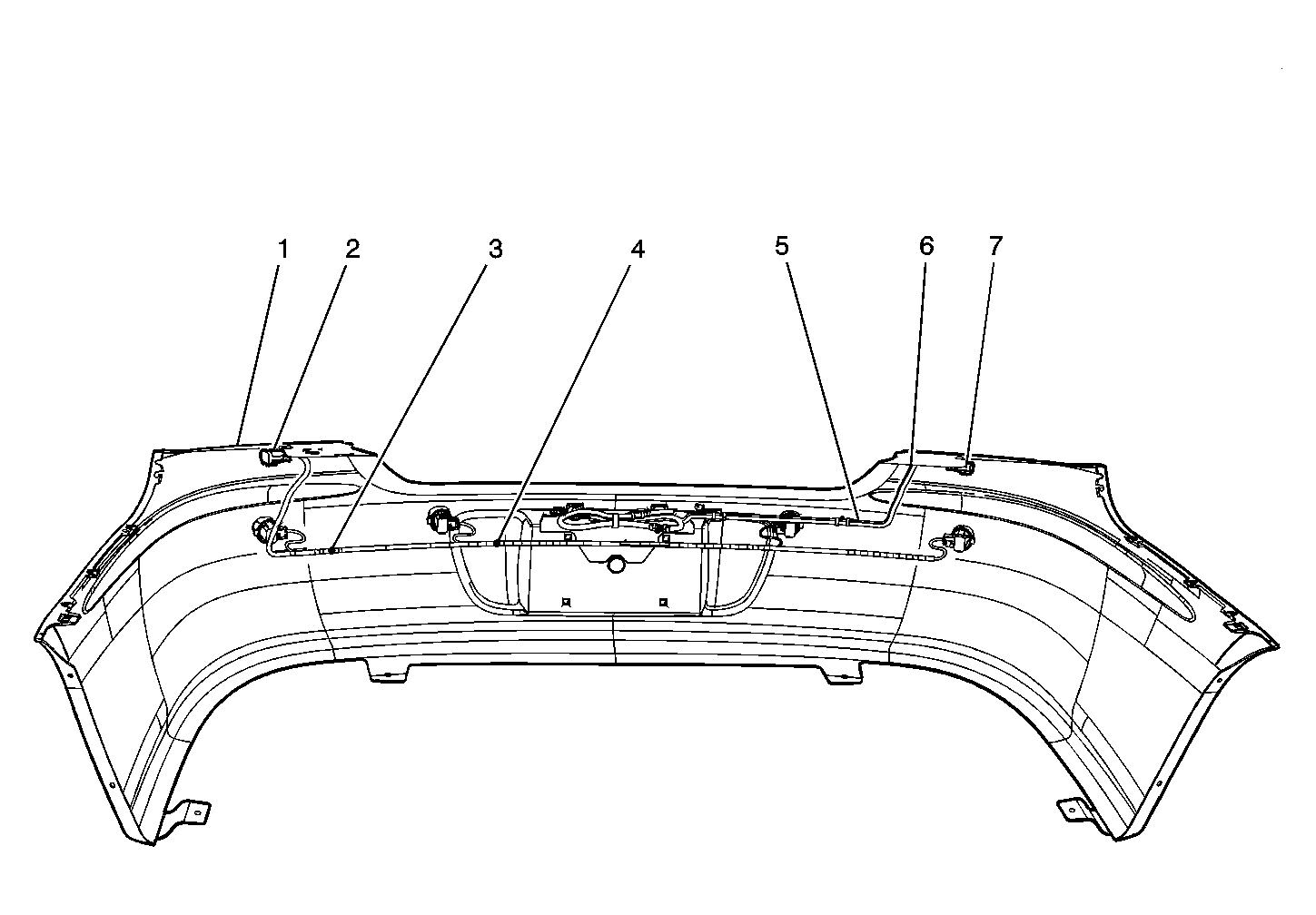

Fig 18: Object Sensor and License Lamp Harnesses
GM1456735Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Fascia
2 C450
3 S450
4 S451
5 S401
6 S402
7 C406
