Audible Warnings Schematics

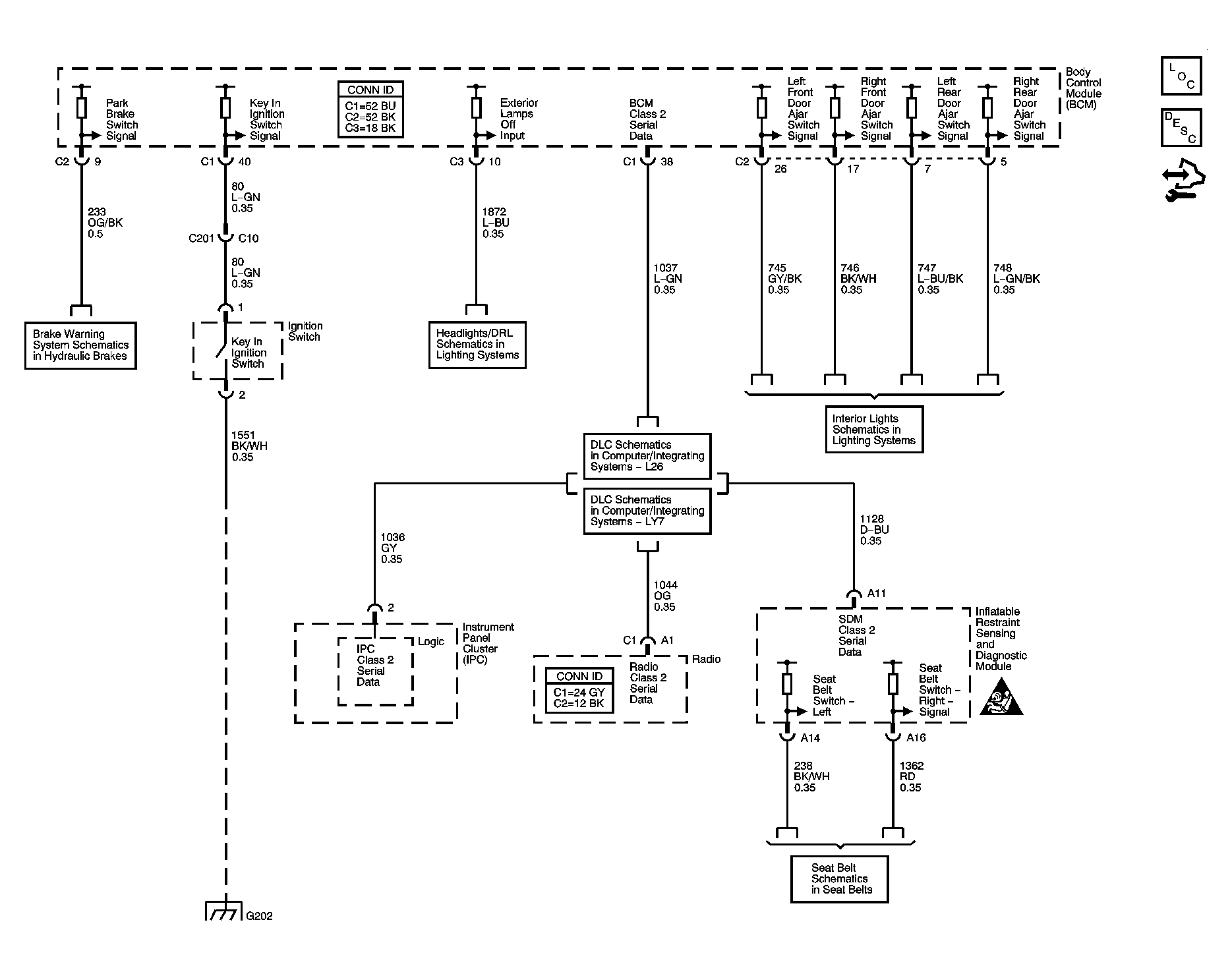

Fig 1: Audible Warnings Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
