Console Replacement - Rear Floor
Console Replacement - Rear Floor

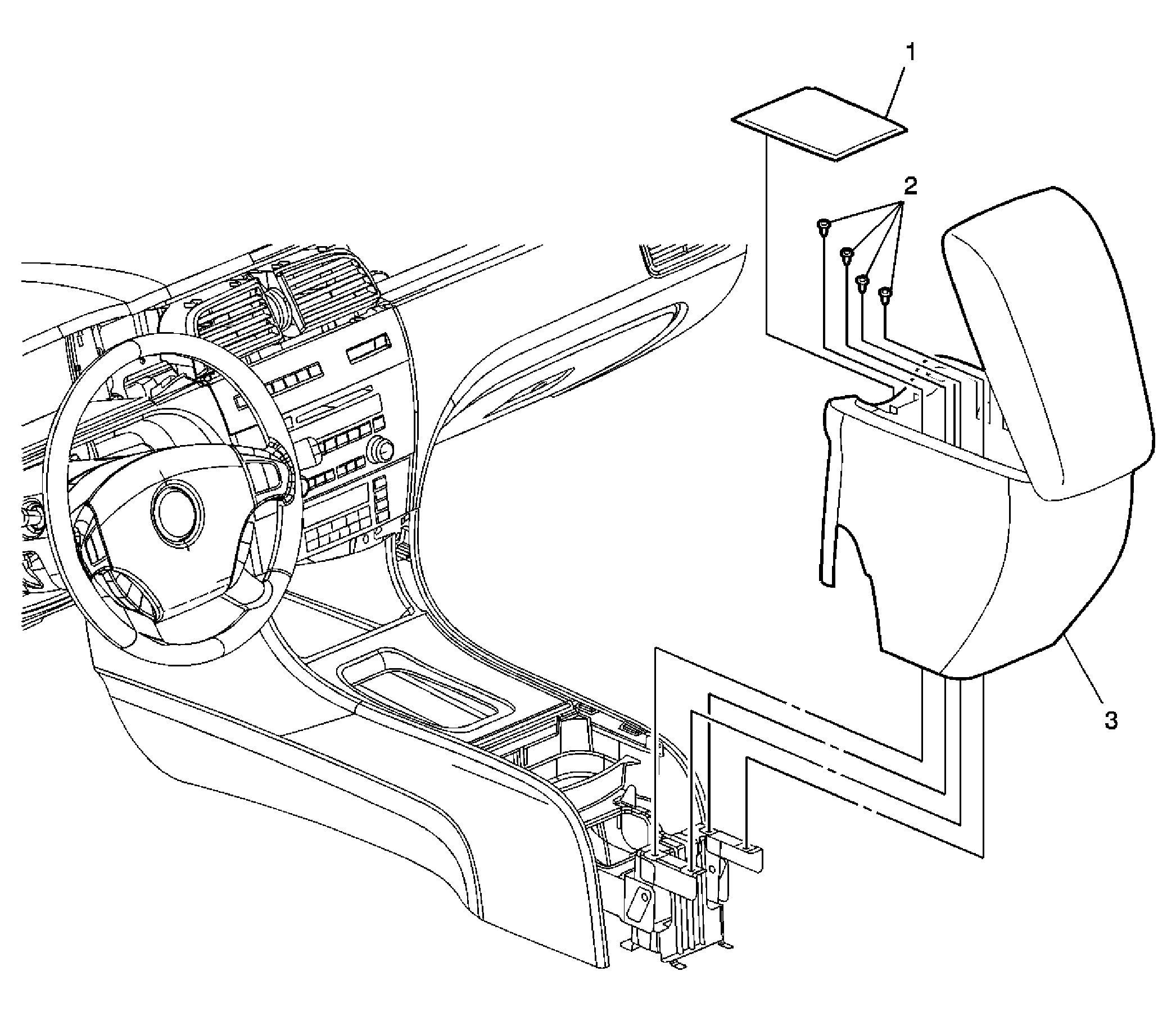

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Mat, Front Floor Console Rear Compartment |
| 2 | Screw, Front Floor Console Rear Compartment (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 3 | Console Assembly, Front Floor Rear Tip: Disconnect the electrical connector when removing the console from the vehicle. |
