Trim Panel Replacement - Rear Window Shelf

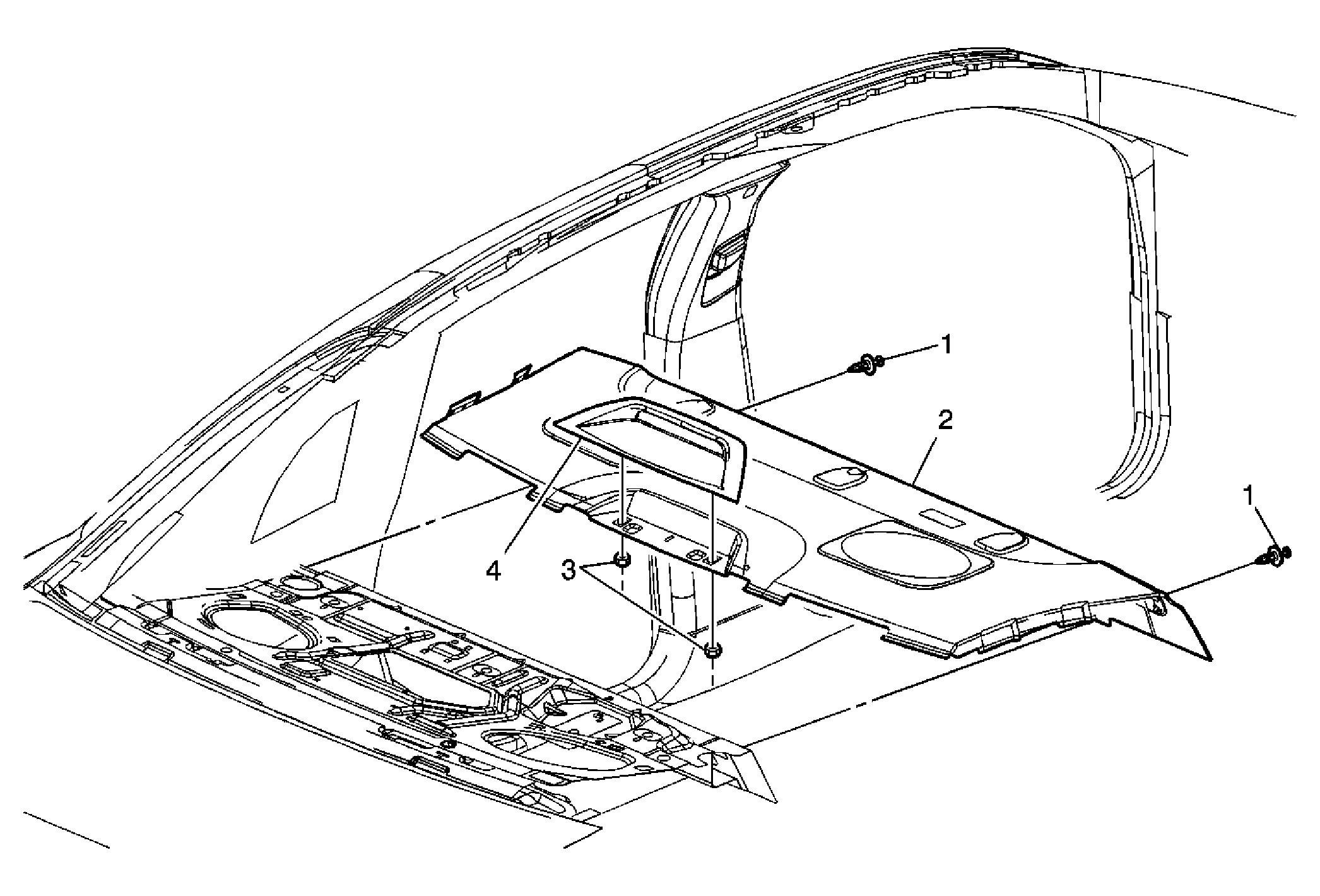

Fig 1: Trim Panel - Rear Window Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Preliminary Procedure Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear . Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-folding) or Seat Back Replacement - Rear (Folding) . Remove the rear upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper .
1	Retainer, Rear Window Panel Trim (Qty: X)
2	Trim Assembly, Rear Window Panel Tip: Lift the panel and remove the outside seat belts through the slots in the trim panel. Lift the panel and remove the center seat belt escutcheon, then pass it and the center seat belt through the slot in the trim panel. Slide the panel forward to disengage the integral hook from the retaining hole. Disconnect the electrical connector from the high mount stop lamp.
