Interior Lights Schematics

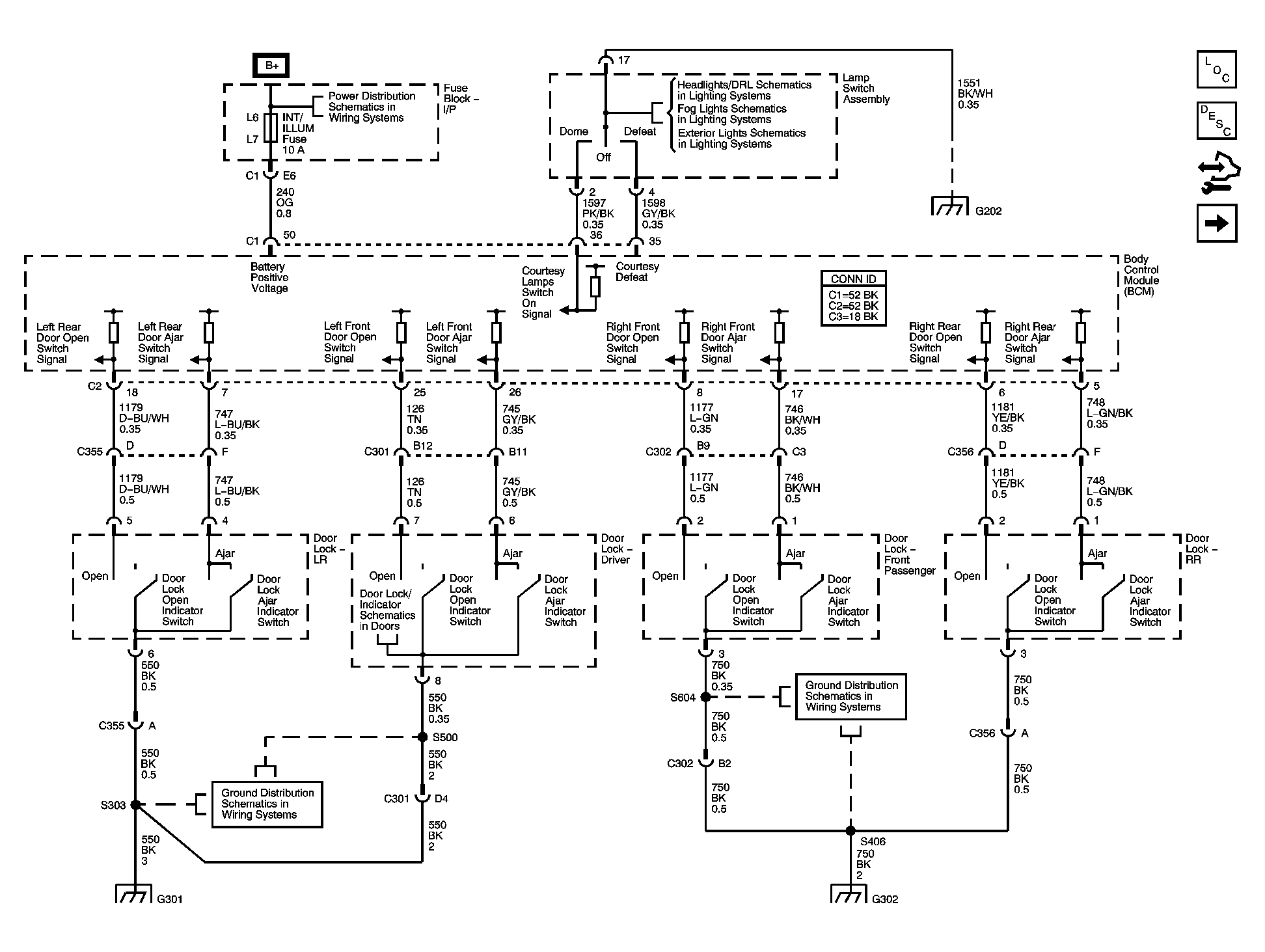

Fig 1: Lamp Controls Schematic
GM1464420Courtesy of GENERAL MOTORS CORP.

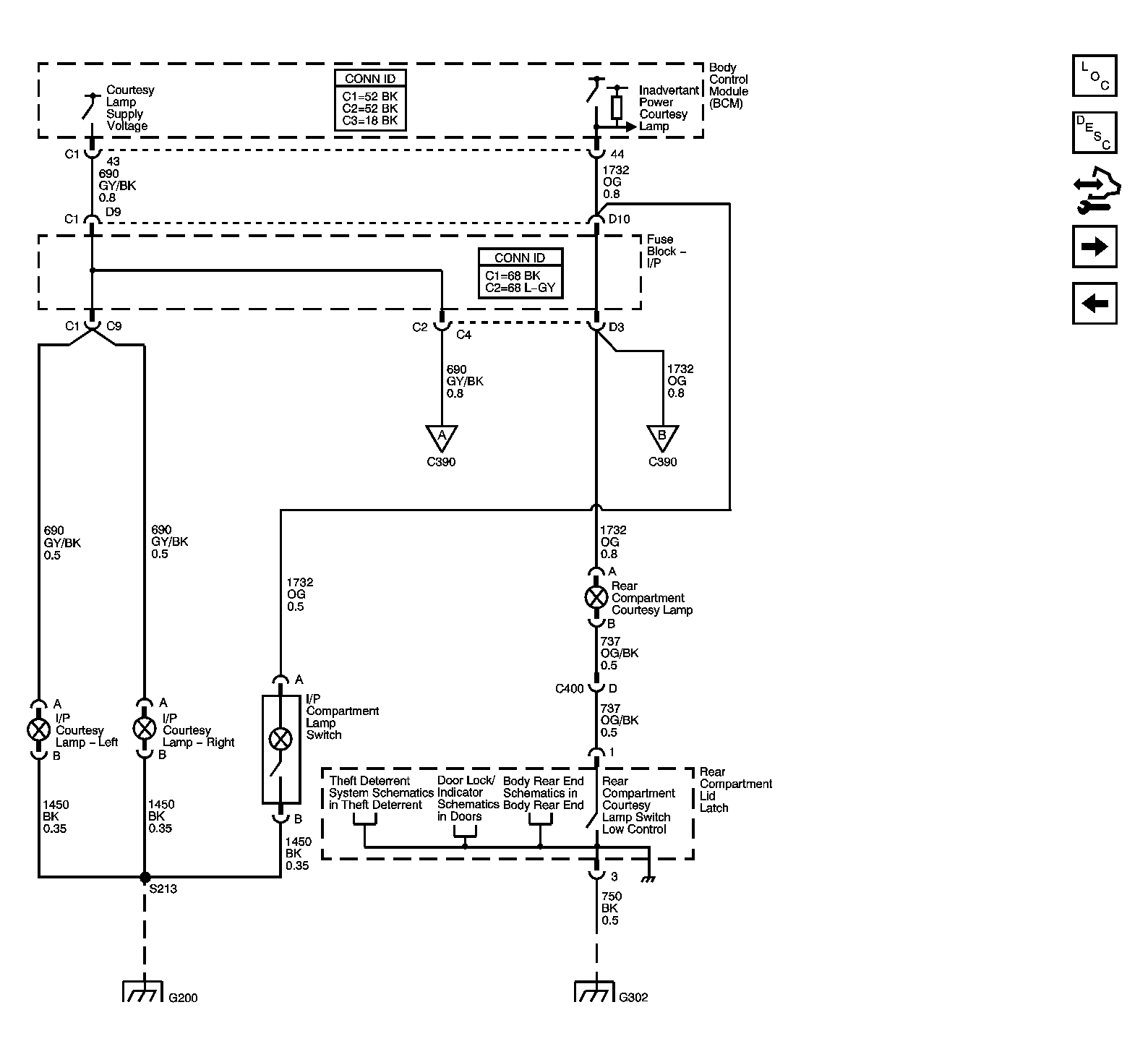

Fig 2: Courtesy Lamps Schematic
GM1464421Courtesy of GENERAL MOTORS CORP.

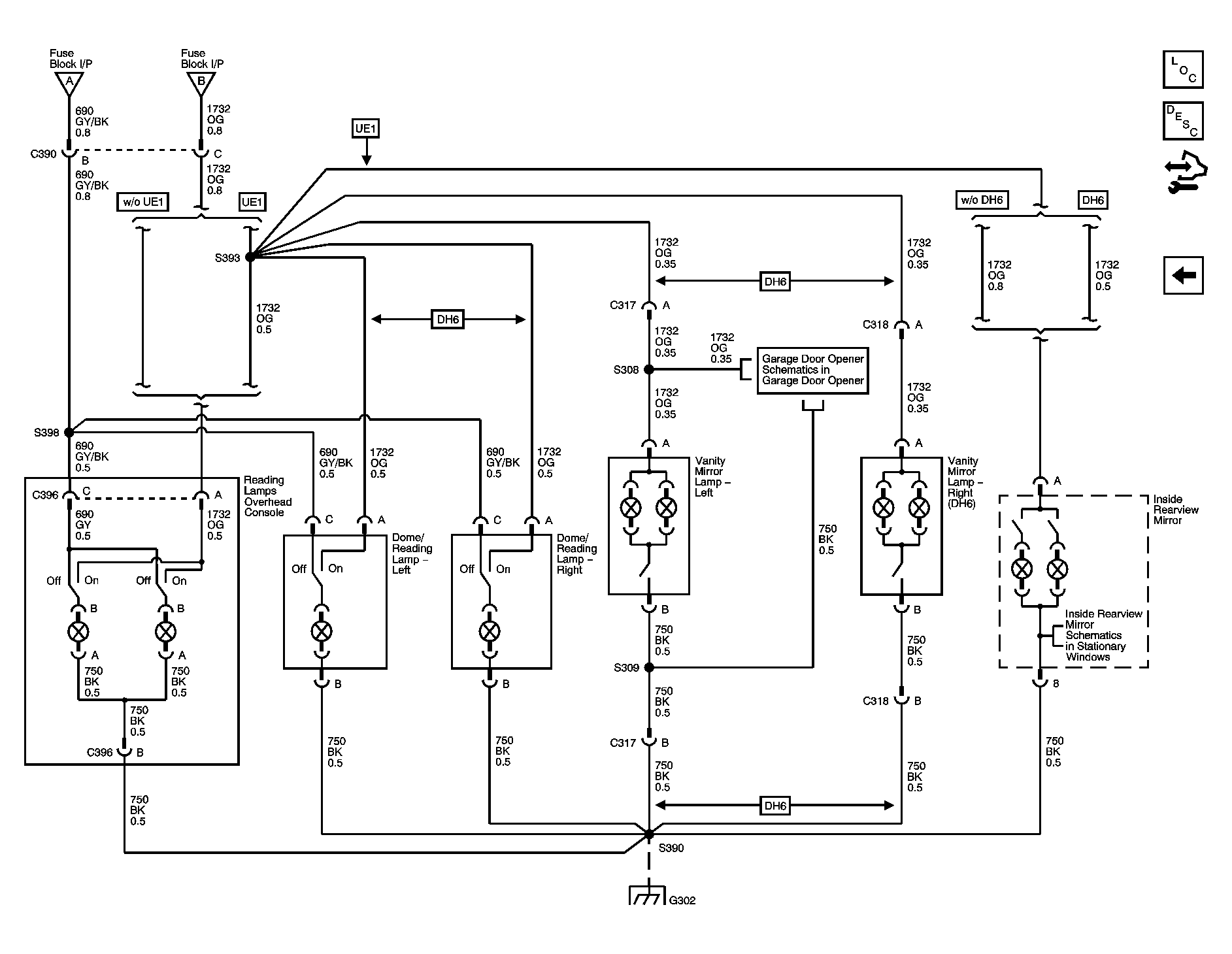

Fig 3: Overhead Lighting Schematic
GM1464422Courtesy of GENERAL MOTORS CORP.
