Trim Plate Replacement - Console Front
Trim Plate Replacement - Console Front

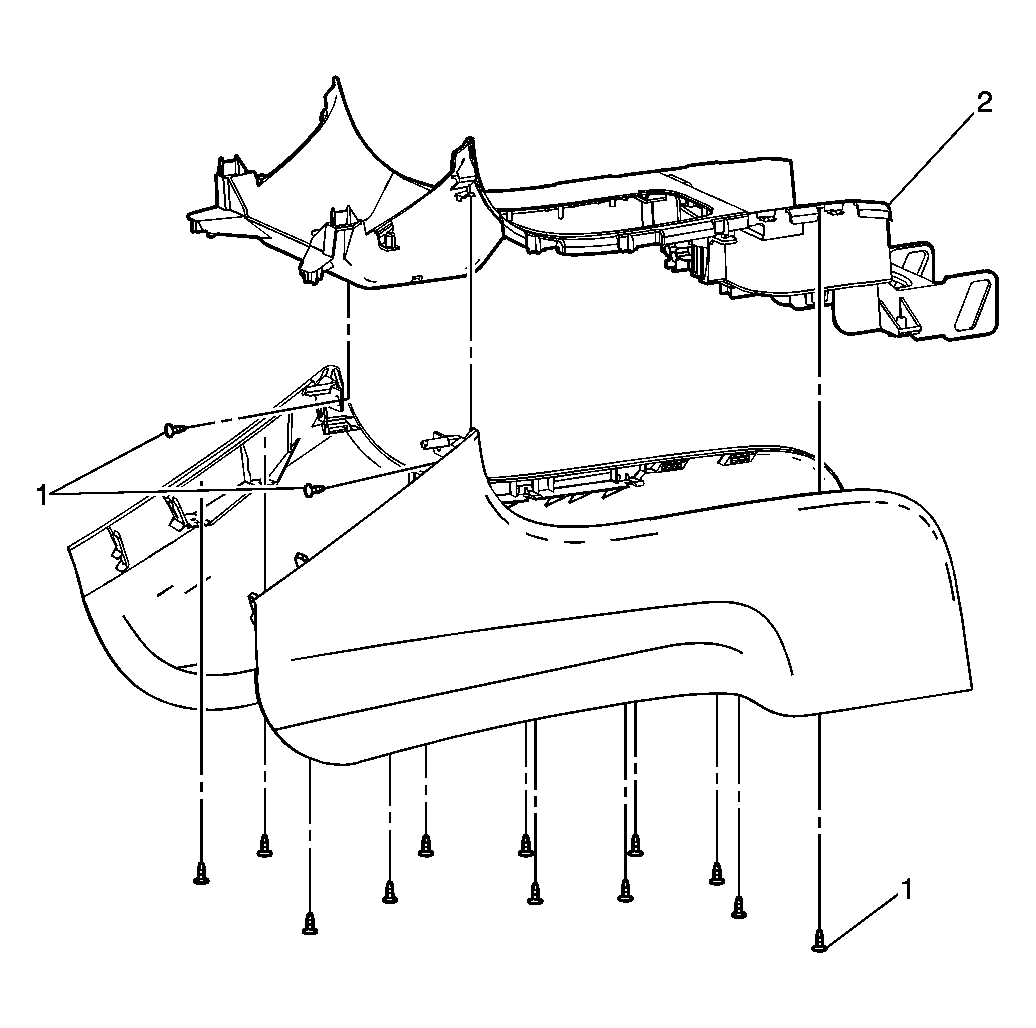

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front floor console. Refer to Console Replacement - Front Floor . |
|
| 1 | Screw, Front Floor Console Trim Plate (Qty: 14) Tighten: 2 N.m (18 lb in) |
| 2 | Trim Plate Assembly, Front Floor Console |
