Steering Column Filler Replacement
Steering Column Filler Replacement

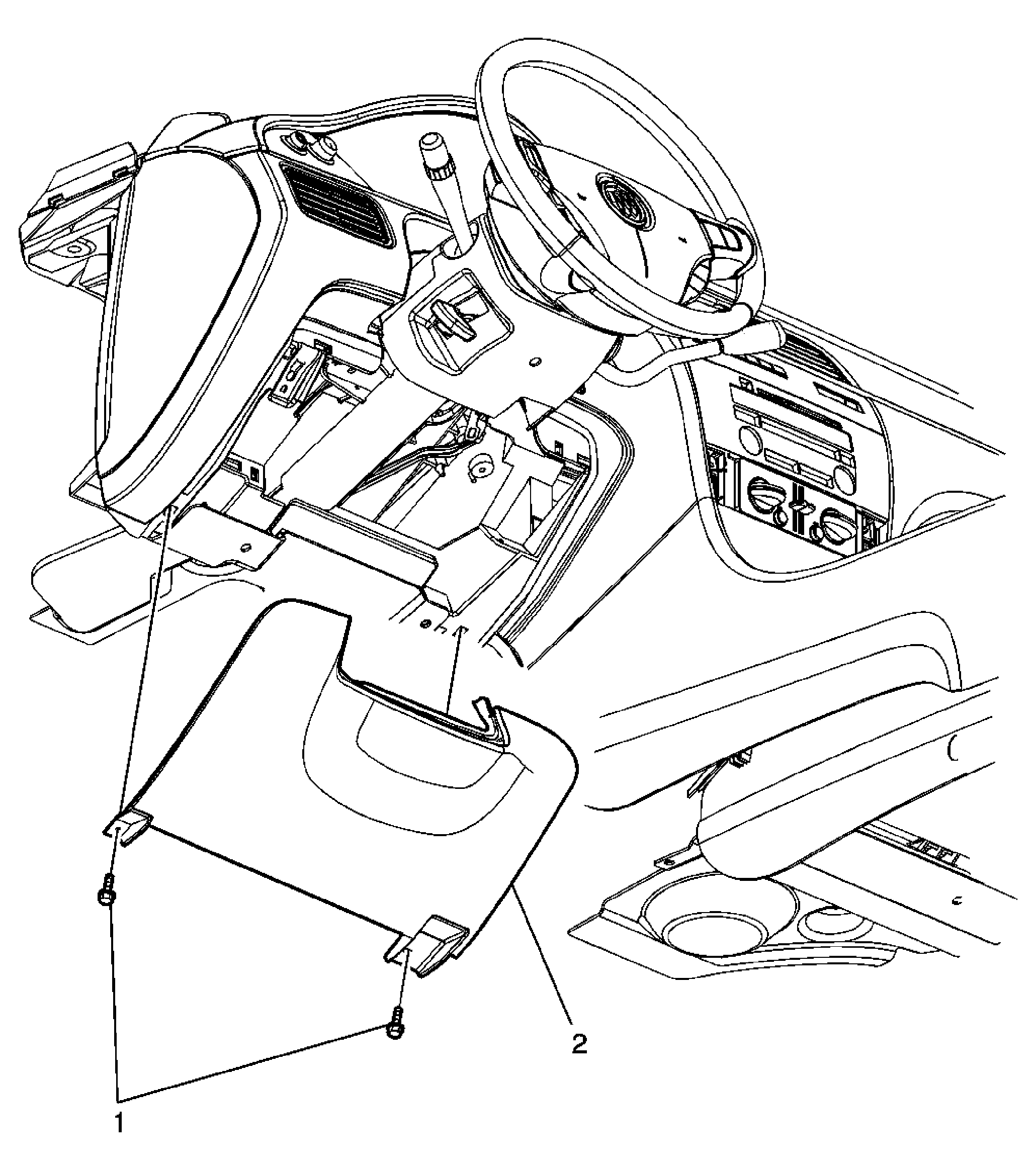

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Screw, Instrument Panel Steering Column Opening (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 2 | Filler Assembly, Instrument Panel Steering Column Opening Tip: Pull away from the instrument panel from the top of the filler panel to disengage the clips. |
