Instrument Panel, Gages, and Console Component Views

Fig 1: Rear of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Remote Control Door Lock Receiver (RCDLR)
3	Navigation Antenna
4	Rear Window Shelf
5	Rear Parking Assist (RPA) Module
6	Electronic Compass Module
7	Rear Compartment Courtesy Lamp

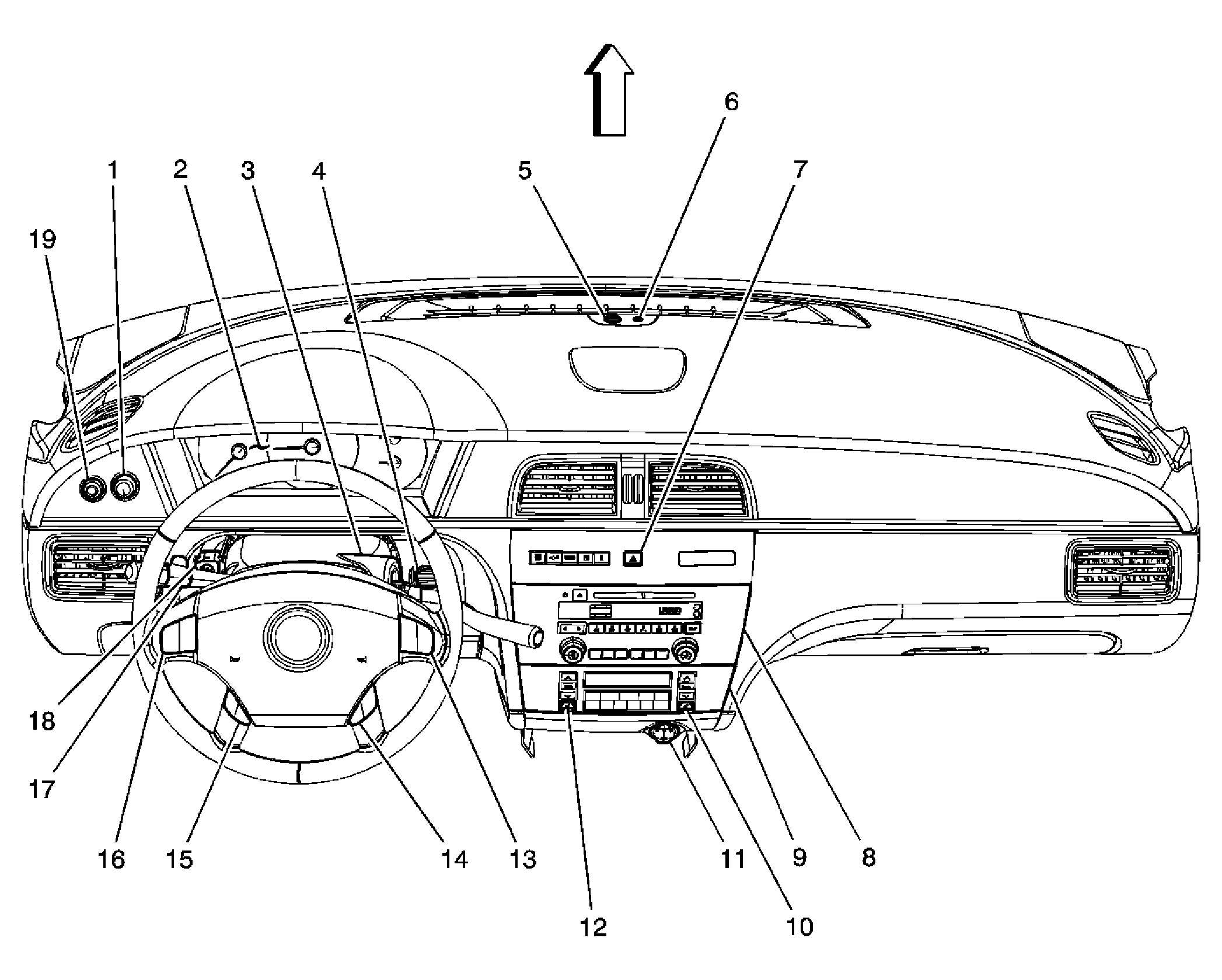

Fig 2: Front of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lamp Switch Assembly - Fog Lamp
2	Instrument Panel Cluster (IPC)
3	Ignition Switch
4	Air Temperature Sensor - Inside
5	Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (C67)
6	Theft LED
7	Driver Information Center (DIC)
8	Radio
9	HVAC Control Module
10	Heated Seat Switch - Front Passenger
11	Cigar Lighter
12	Heated Seat Switch - Driver
13	Steering Wheel Controls - Right
14	Cruise Control Switch
15	Voice Recorder / Cruise Switch Assembly
16	Steering Wheel Controls - Left
17	Turn Signal / Multifunction Switch
18	I/P Dimmer Switch
19	Lamp Switch Assembly - Interior Lamps

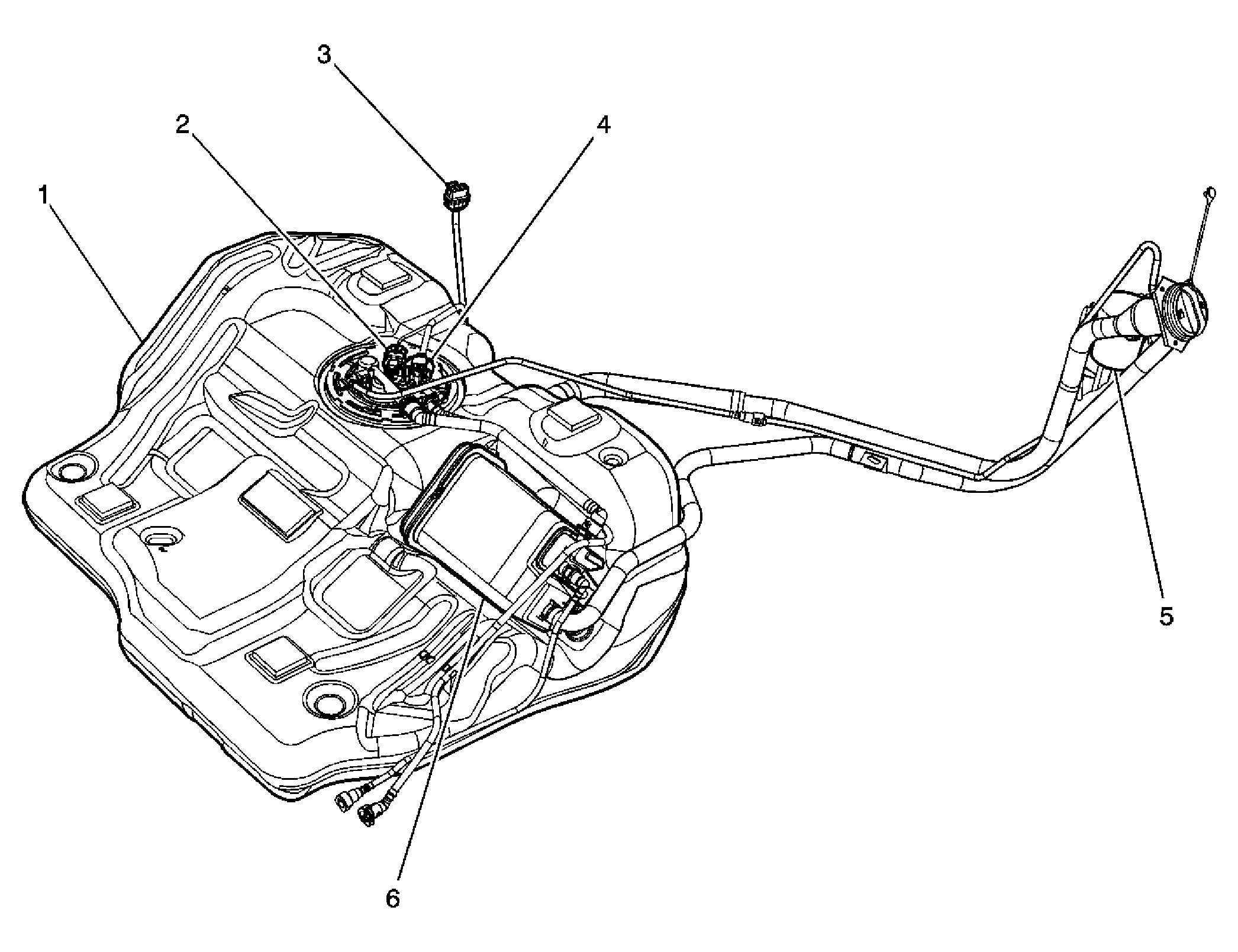

Fig 3: Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank
2	Fuel Tank Pressure (FTP) Sensor
3	C405
4	Fuel Pump and Sender Assembly
5	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
6	EVAP Canister

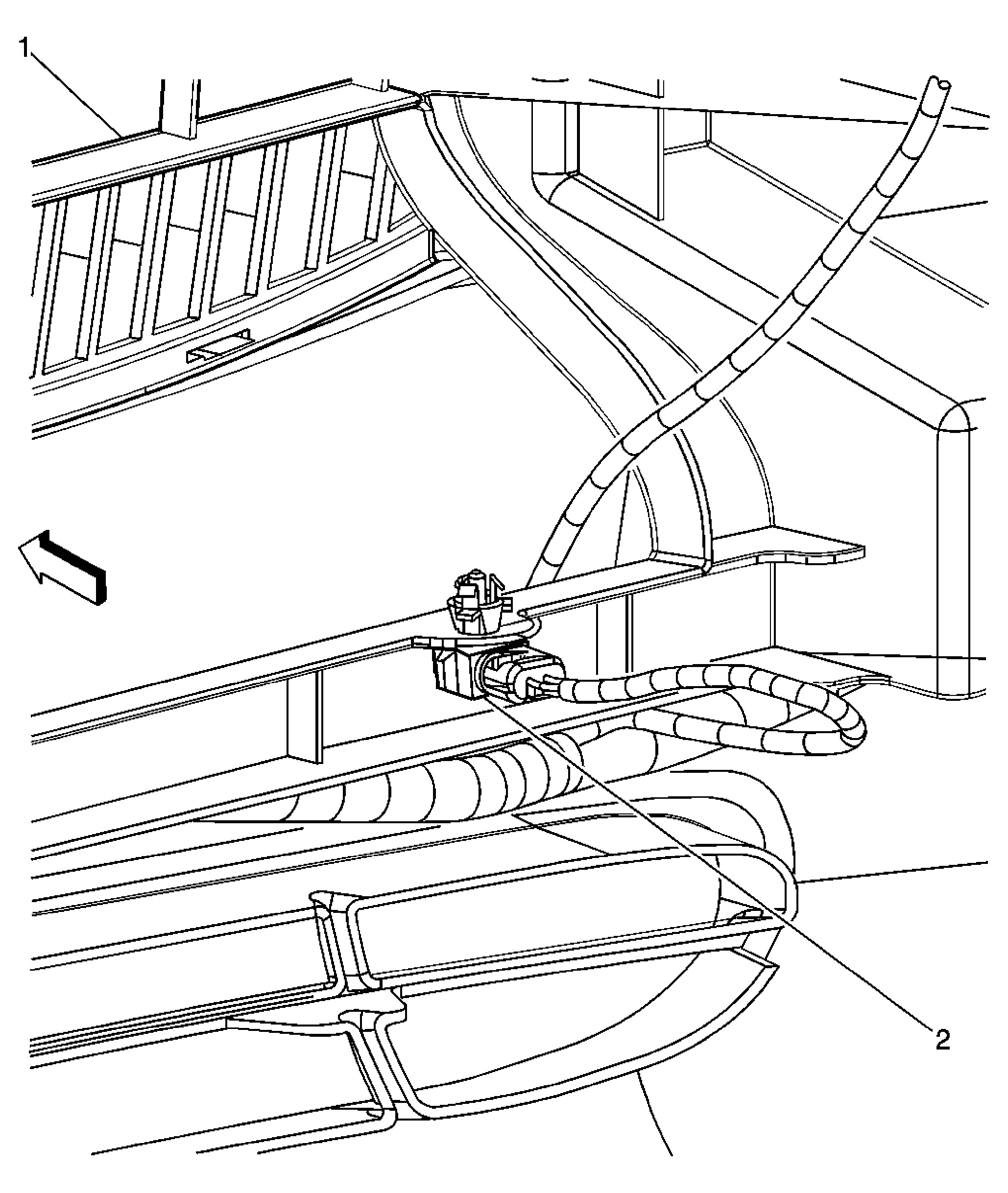

Fig 4: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Radiator Grill
2	Ambient Air Temperature Sensor
