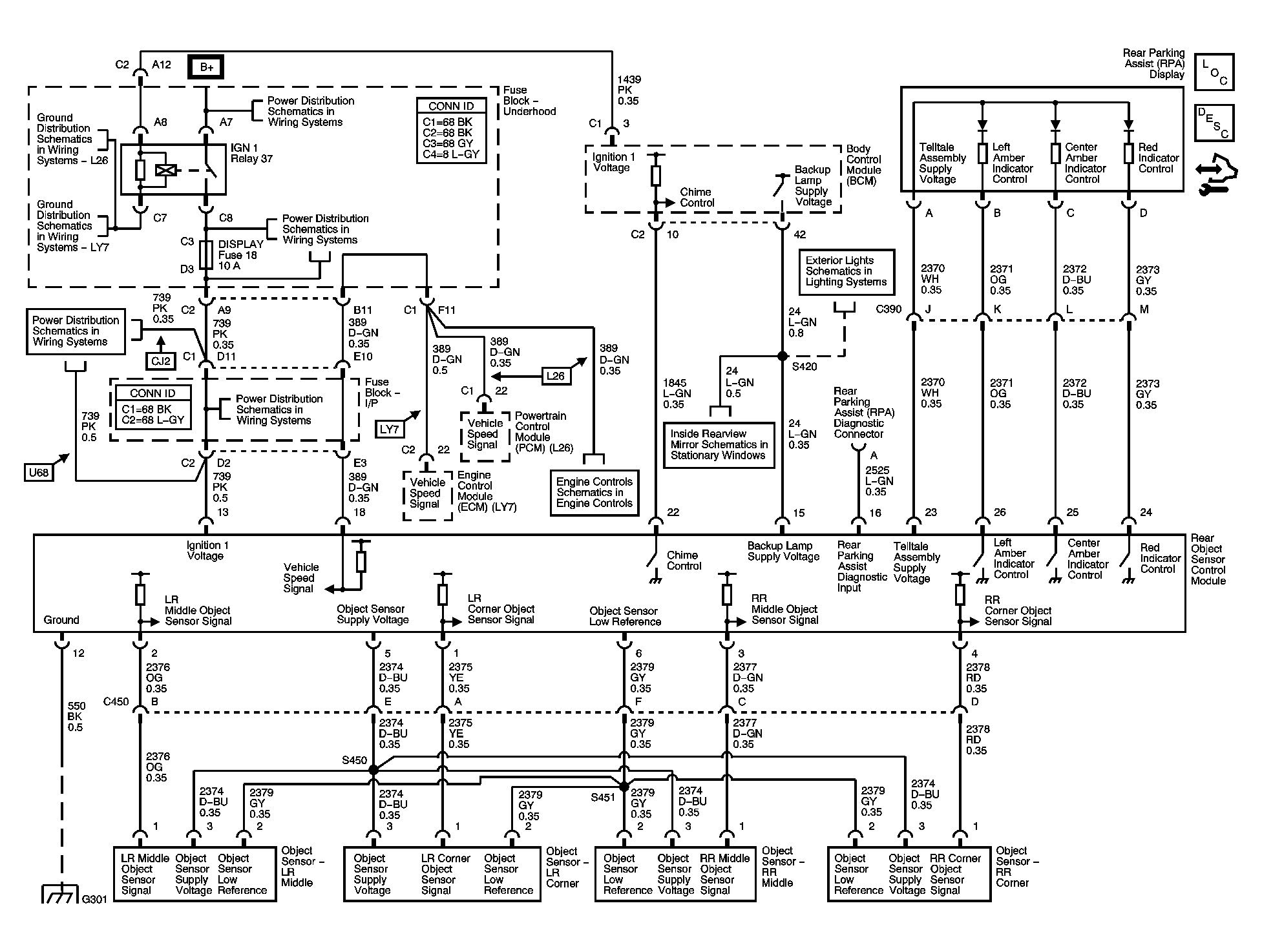

Home >> Buick >> 2005 >> Allure CX >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Rear Parking Assist System >> Schematic and Routing Diagrams >> Rear Parking Assist Schematics
