Oil Pump Bolts

Oil Pump Bolts

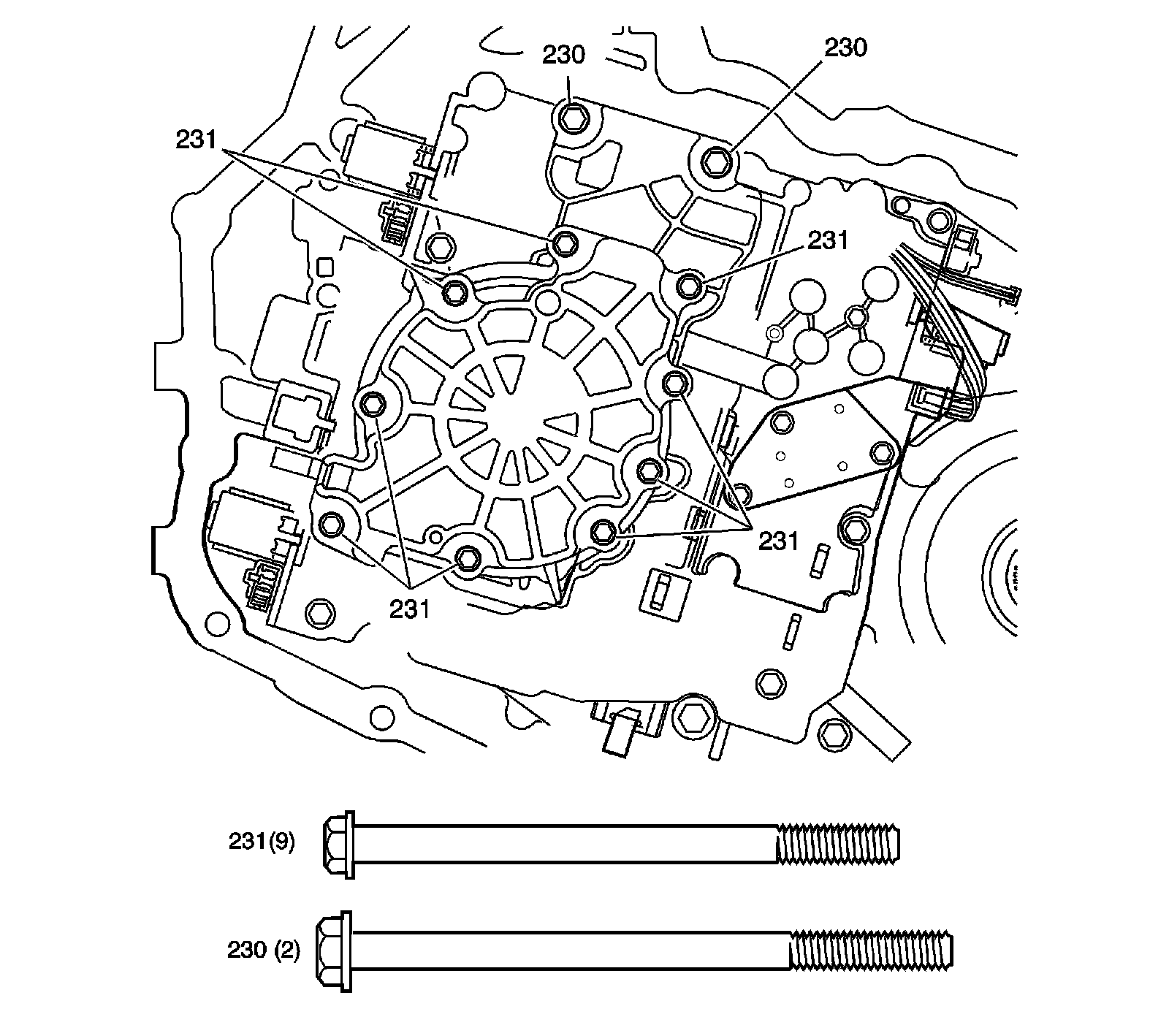

Oil Pump Bolts:





230 - Pump Body to Case Bolt M6 X 1.0 X 95.0 (2)
230 - Pump Body to Case Bolt M6 X 1.0 X 95.0 (2)
231 - Pump Cover to Case Cover Bolt M6 X 1.0 X 87.5 (9)
231 - Pump Cover to Case Cover Bolt M6 X 1.0 X 87.5 (9)
231 - Pump Cover to Case Cover Bolt M6 X 1.0 X 87.5 (9)
231 - Pump Cover to Case Cover Bolt M6 X 1.0 X 87.5 (9)
