Brake Fluid Pressure Sensor/Switch: Locations

Hydraulic Brakes Component Views

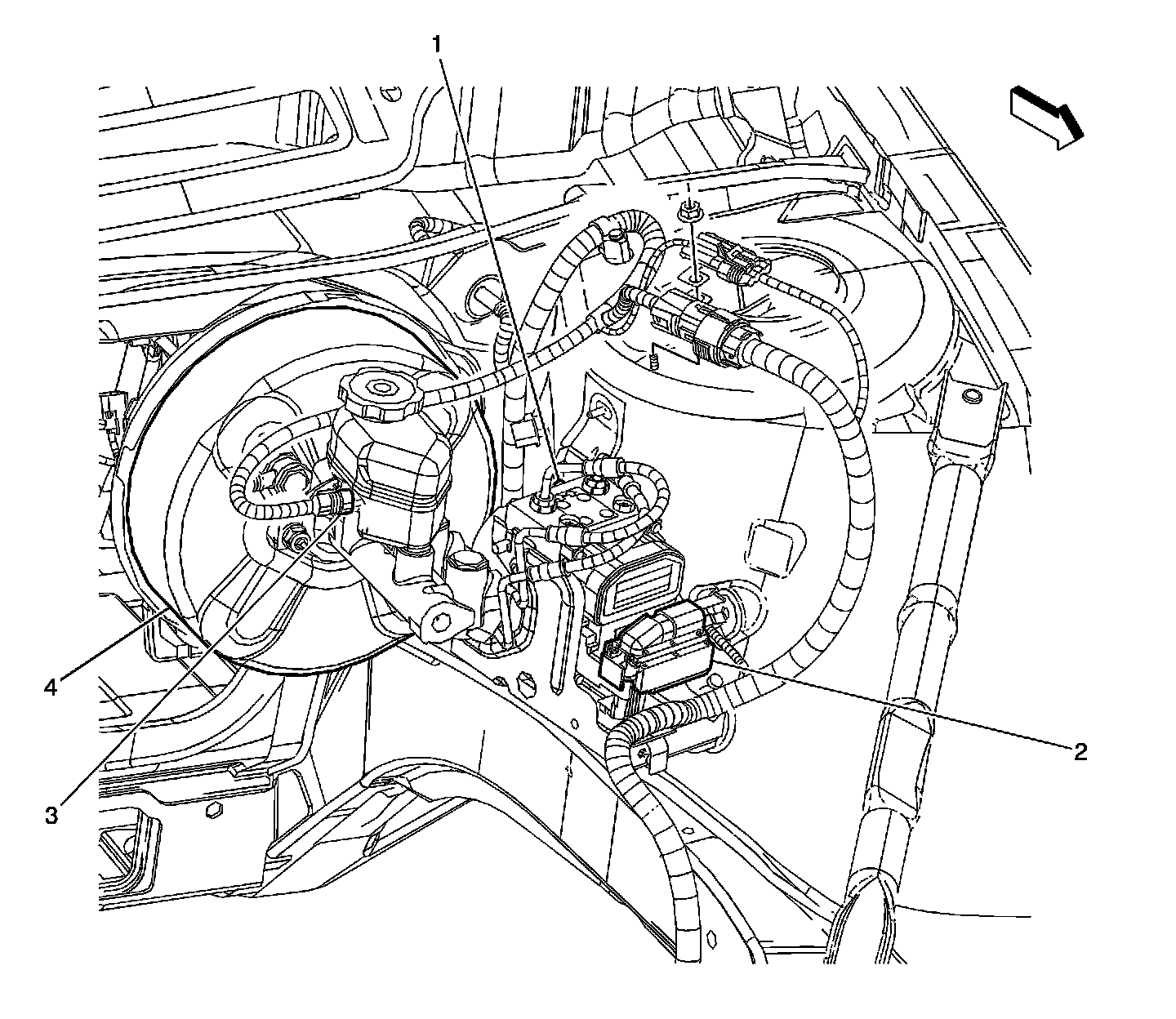

LR of the Engine Compartment

1 - Brake Pressure Sensor
2 - Electronic Brake Control Module (EBCM)
3 - Brake Fluid Level Switch
4 - Power Brake Booster

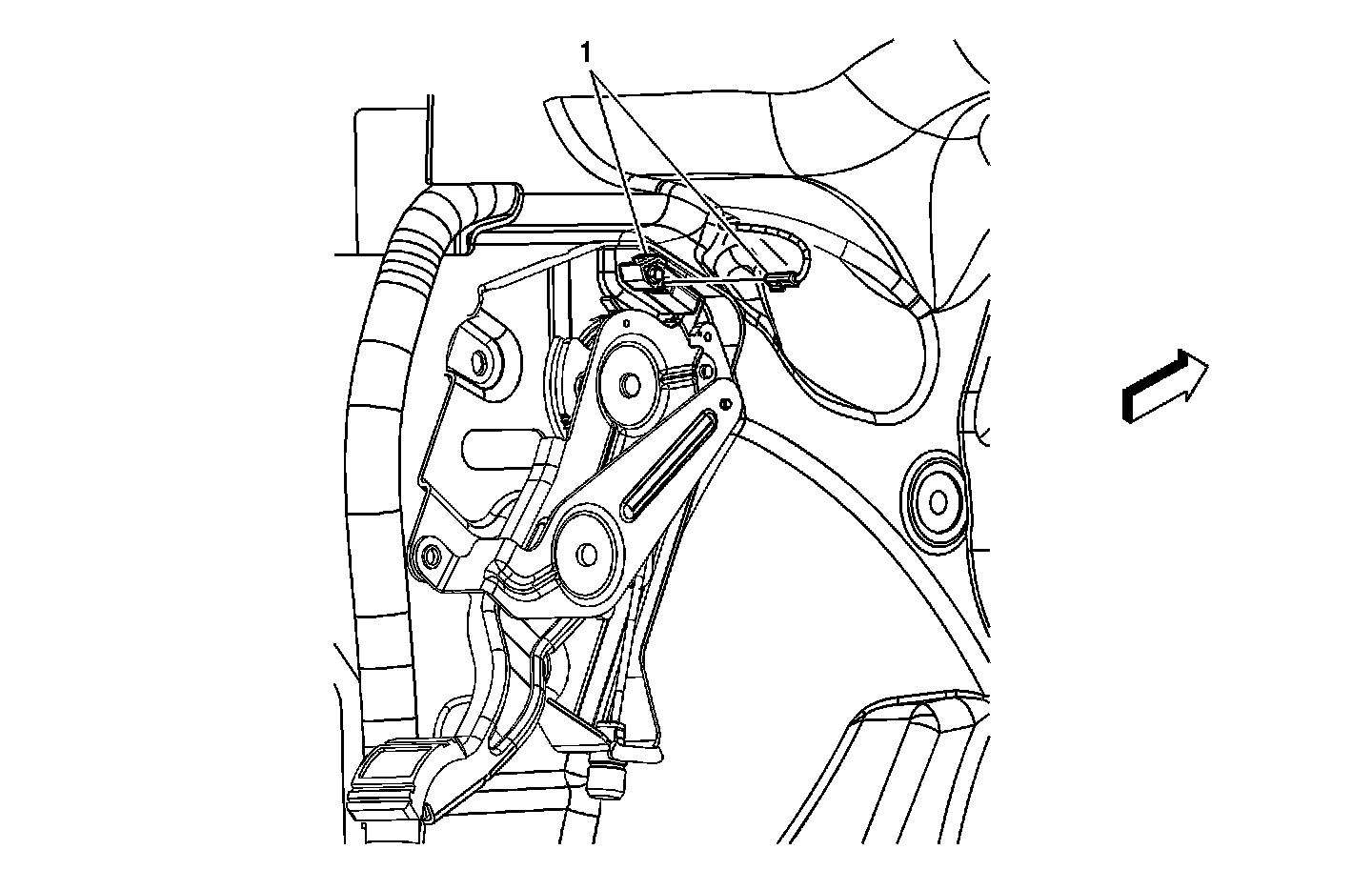

Park Brake Switch

1 - Park Brake Switch
