Seat Belt Buckle Switch: Locations

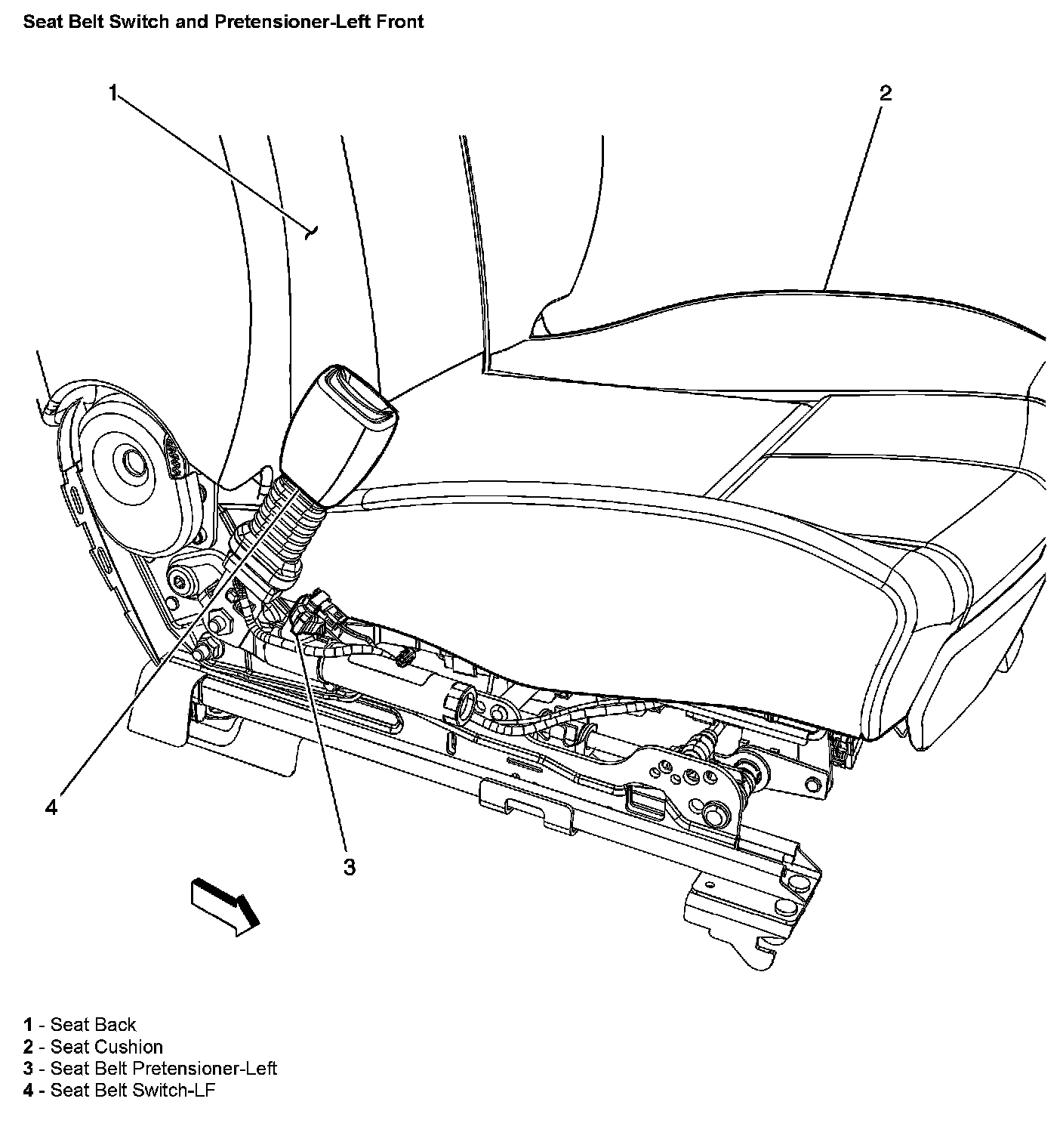

Seat Belt Switch And Pretensioner - Left Front:

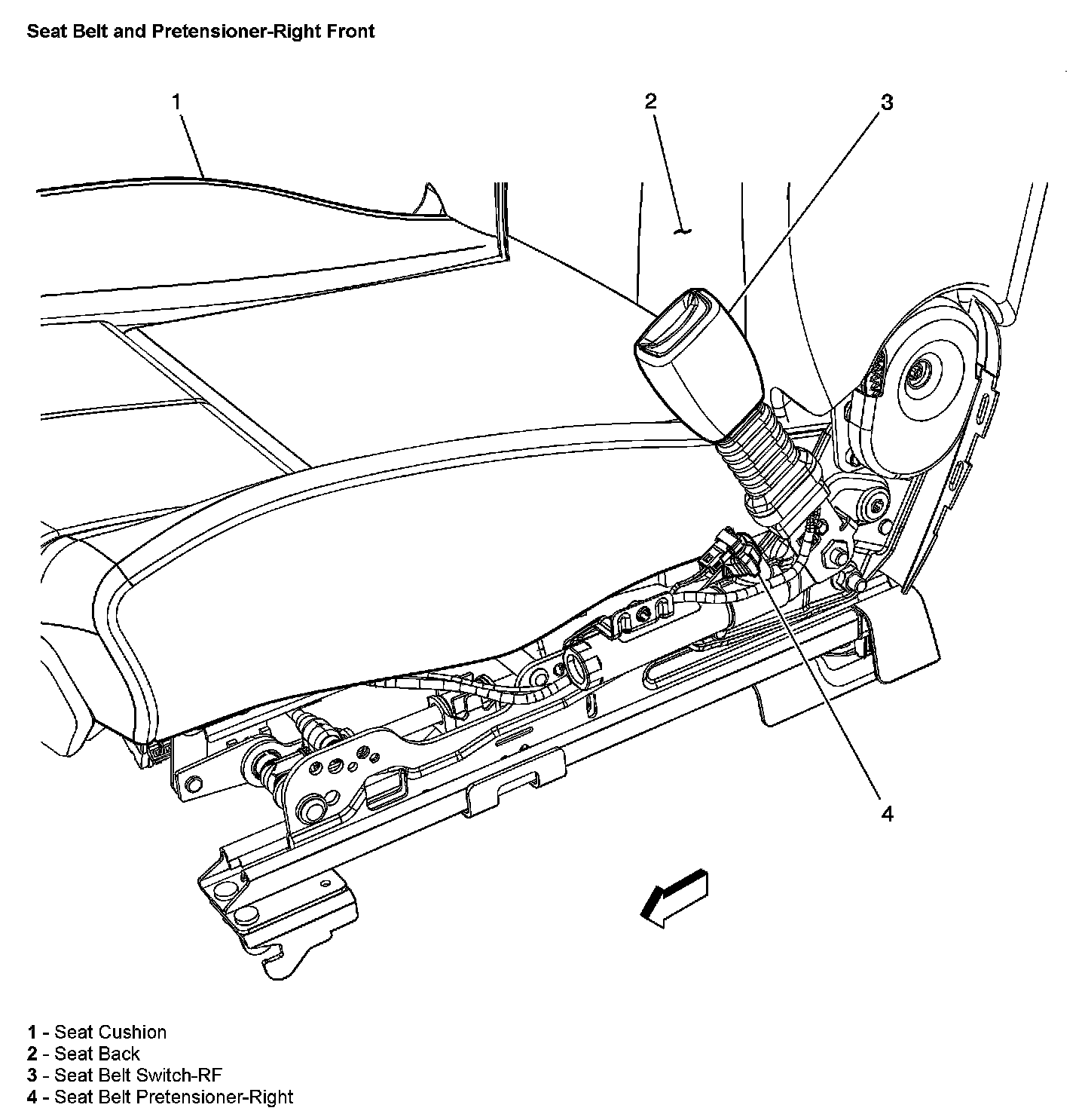

Seat Belt and Pretensioner - Right Front:
