Home >> Buick >> 2005 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Locations

Air Bag: Locations

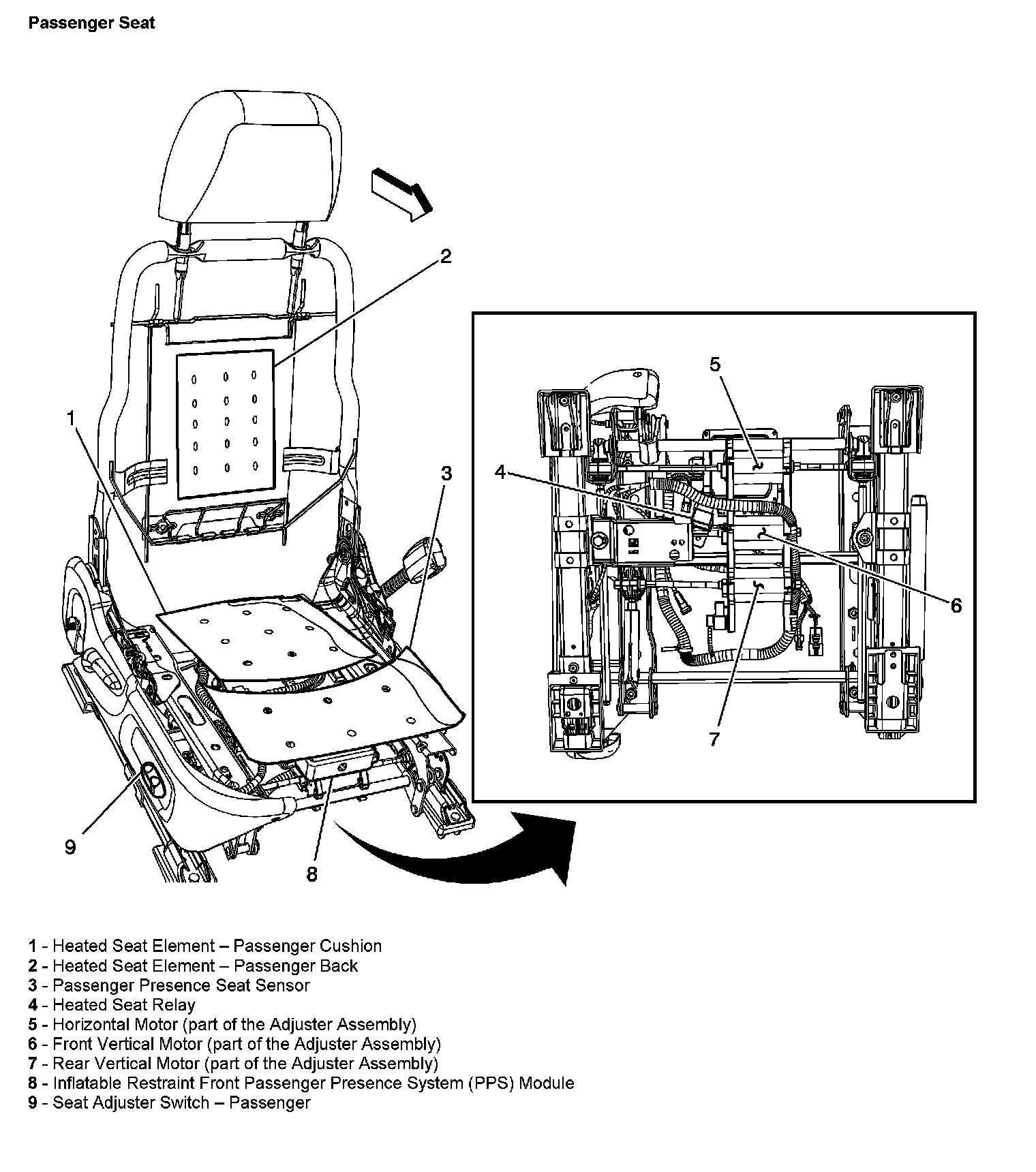

Passenger Seat:

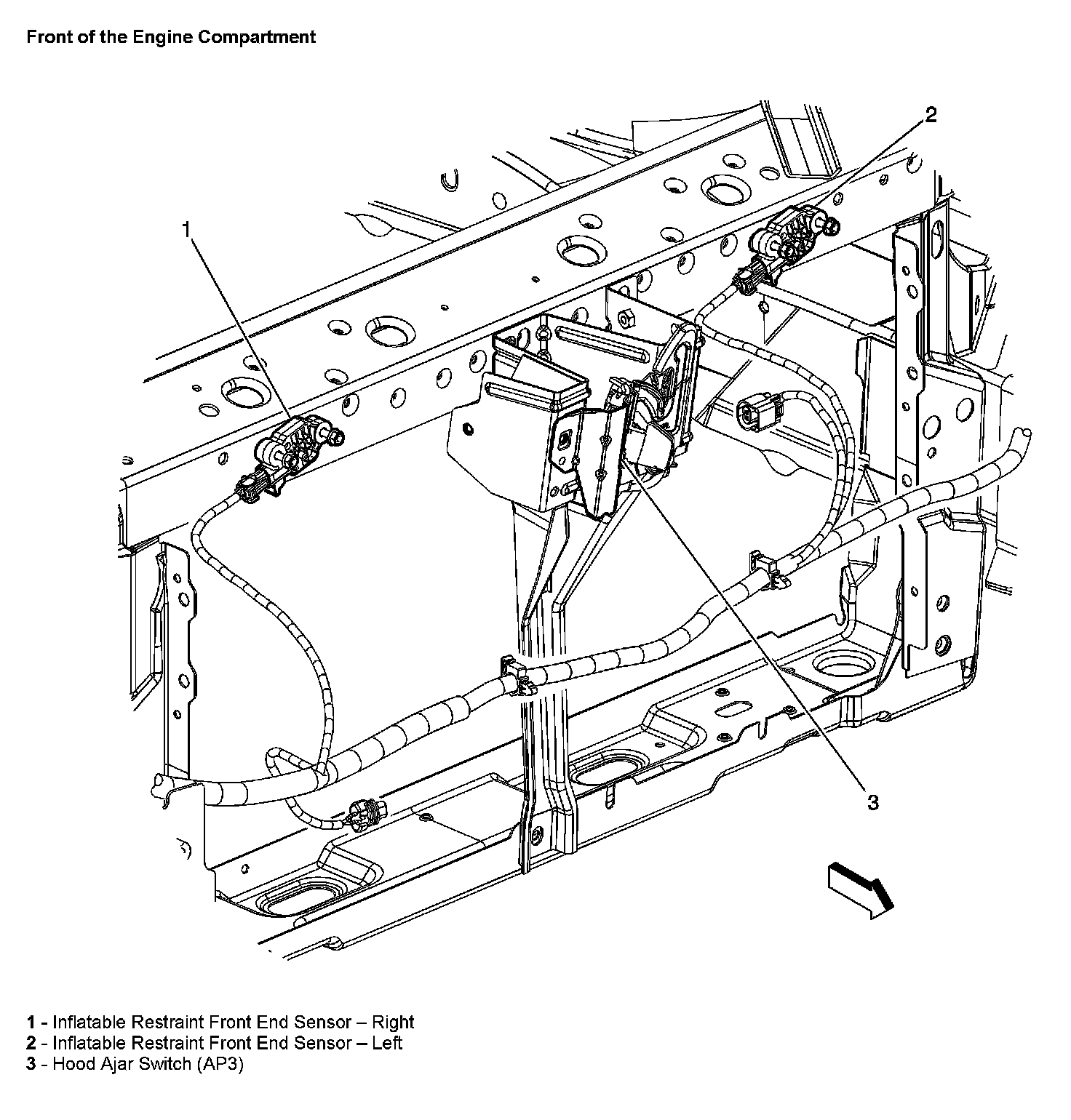

Front Of The Engine Compartment:

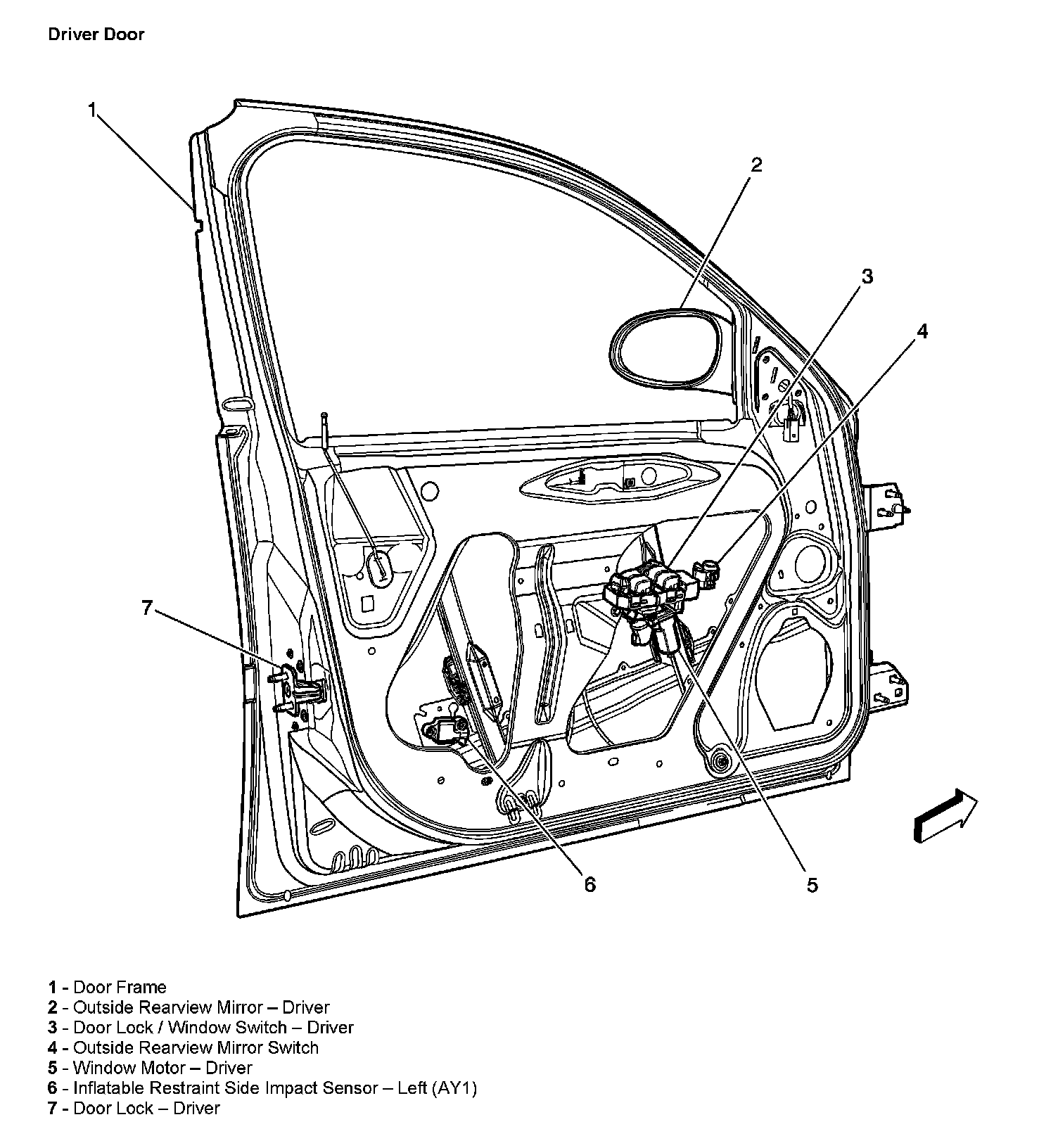

Driver Door:

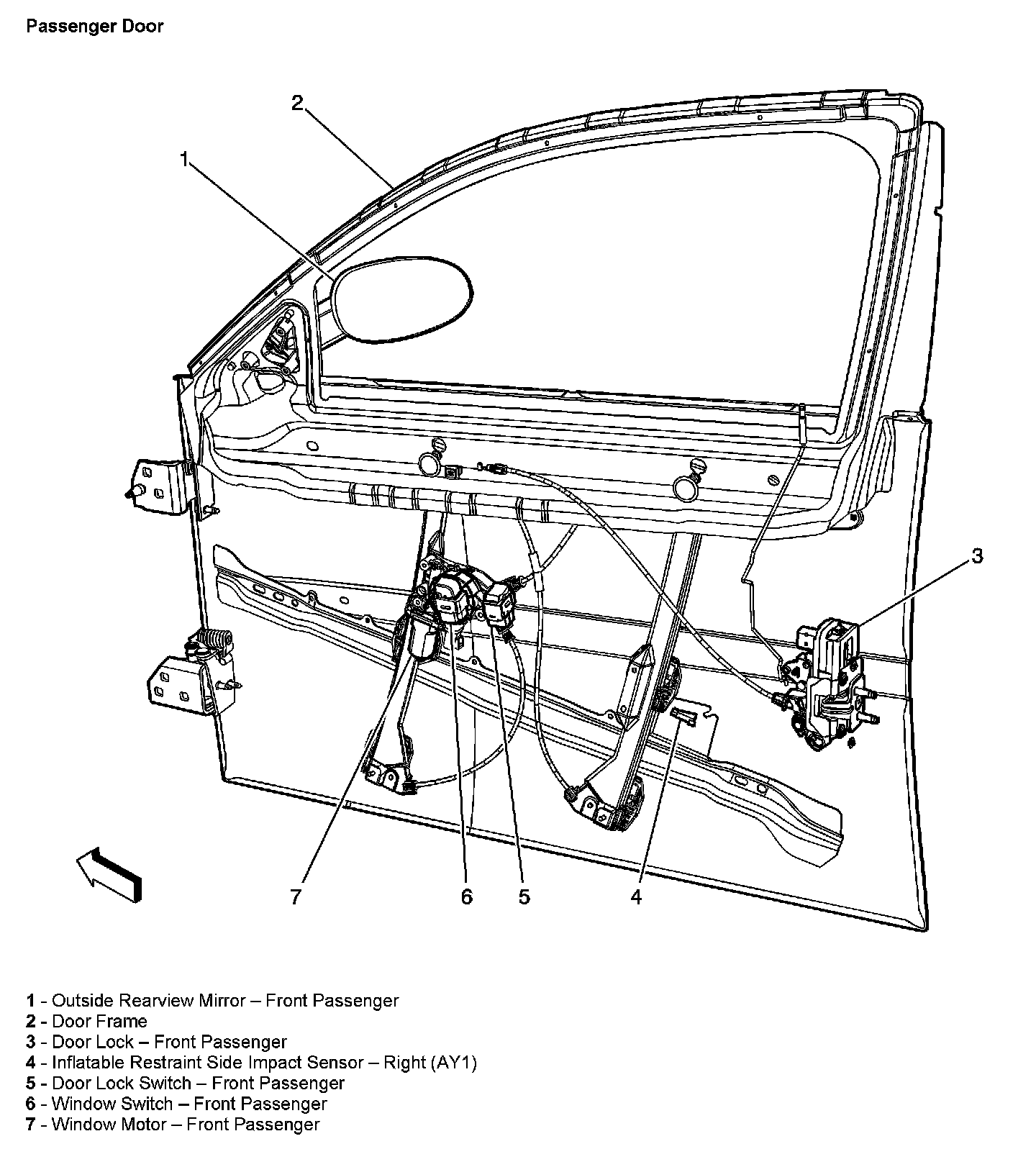

Passenger Door:

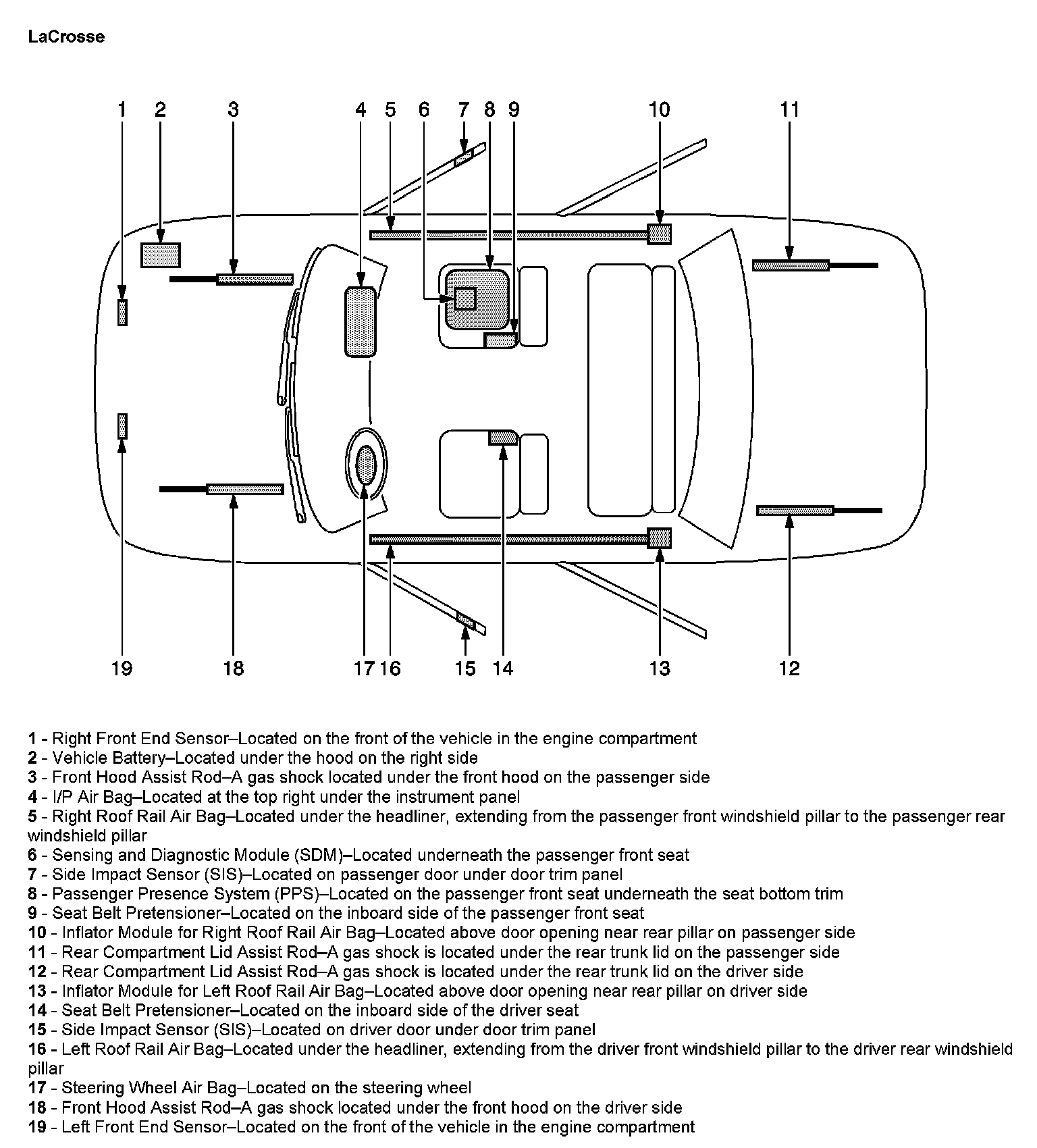

LaCrosse:
