Camshaft Position (CMP) Sensor Replacement - Bank 1 (Right) Exhaust

CAMSHAFT POSITION (CMP) SENSOR REPLACEMENT - BANK 1 (RIGHT) EXHAUST

REMOVAL PROCEDURE
1. Turn the ignition OFF.
2. Remove the ECM bracket bolts and reposition the ECM bracket in order to provide access.

IMPORTANT: Do not remove the engine control module (ECM) from the ECM bracket.

Do not remove the ECM redundant ground wire from the ECM.

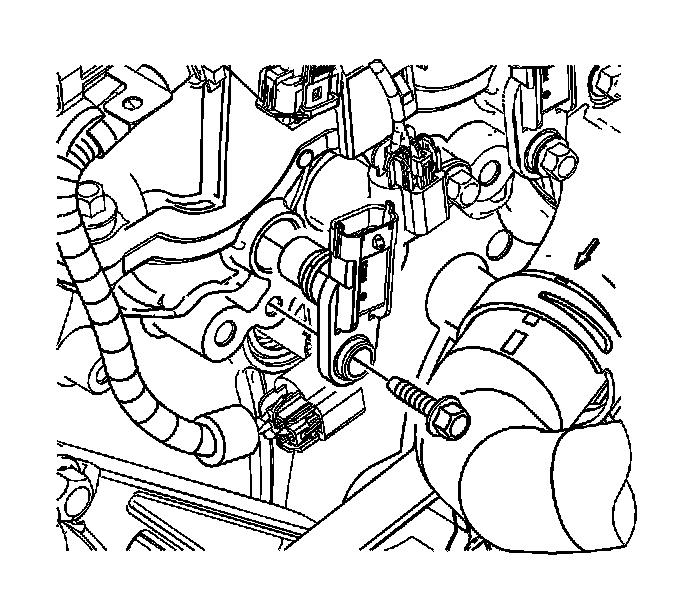

3. Remove the camshaft position (CMP) sensor electrical connector.




4. Remove the CMP sensor bolt.
5. Remove the CMP sensor.

INSTALLATION PROCEDURE

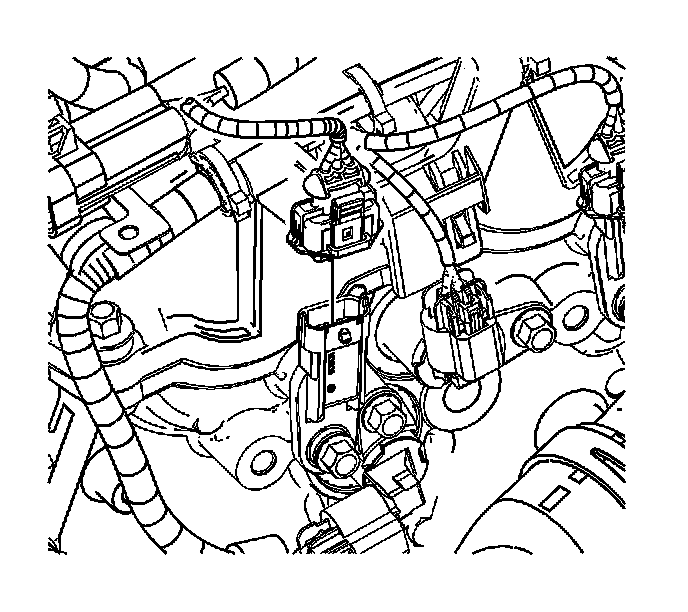

1. Install the CMP sensor.
2. Install the CMP sensor bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the CMP sensor bolt to 10 N.m (89 lb in).




3. Install the CMP sensor electrical connector.
4. Install the ECM bracket with the ECM.
