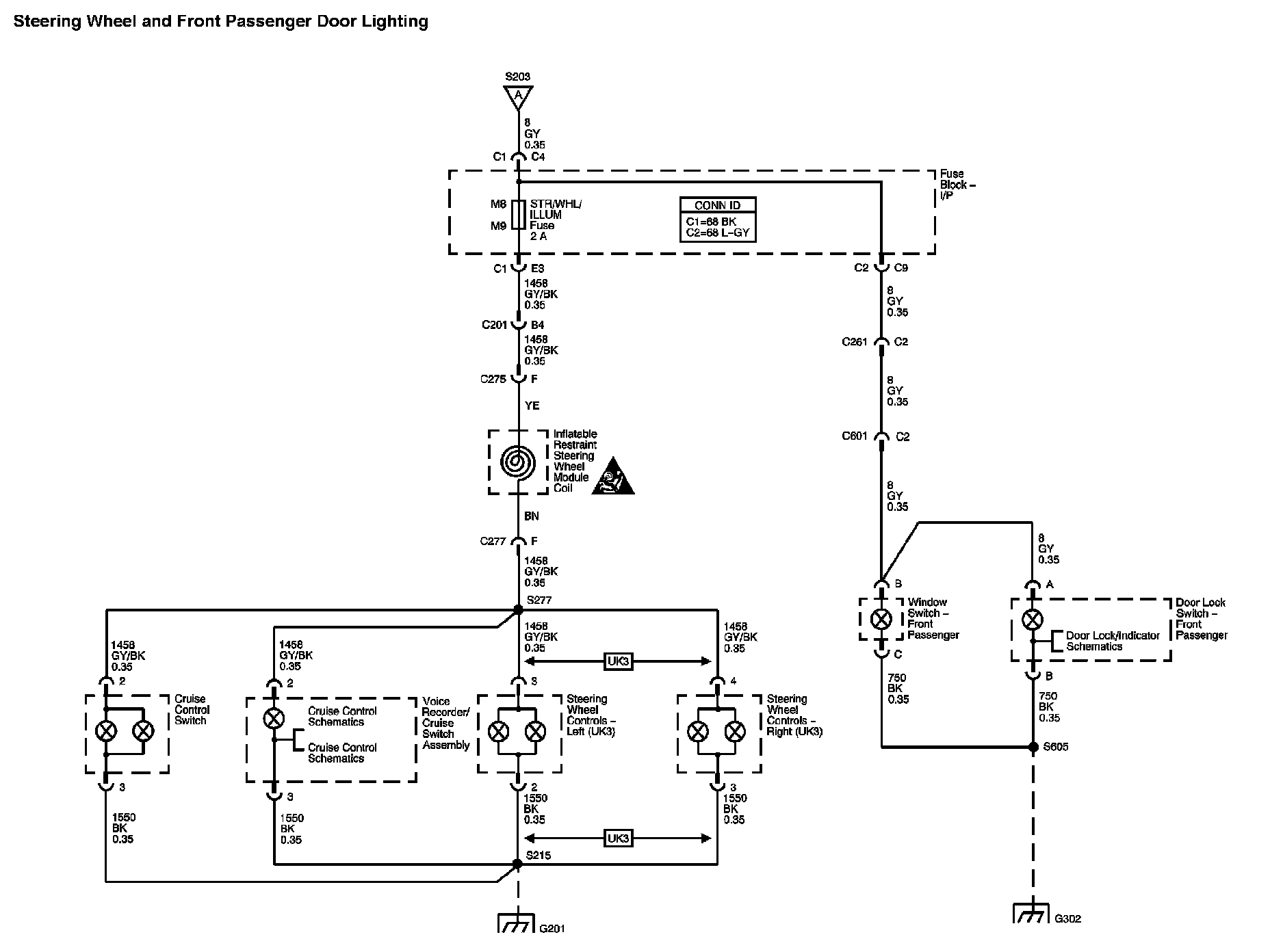

Interior Lights Dimming Diagram 2



Interior Lights Dimming Diagram 2:






Previous Diagram Interior Lights Dimming Diagram 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
