Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Right

SECONDARY CAMSHAFT INTERMEDIATE DRIVE CHAIN TENSIONER REPLACEMENT - RIGHT

Removal Procedure
1. Remove the engine front cover. Service and Repair

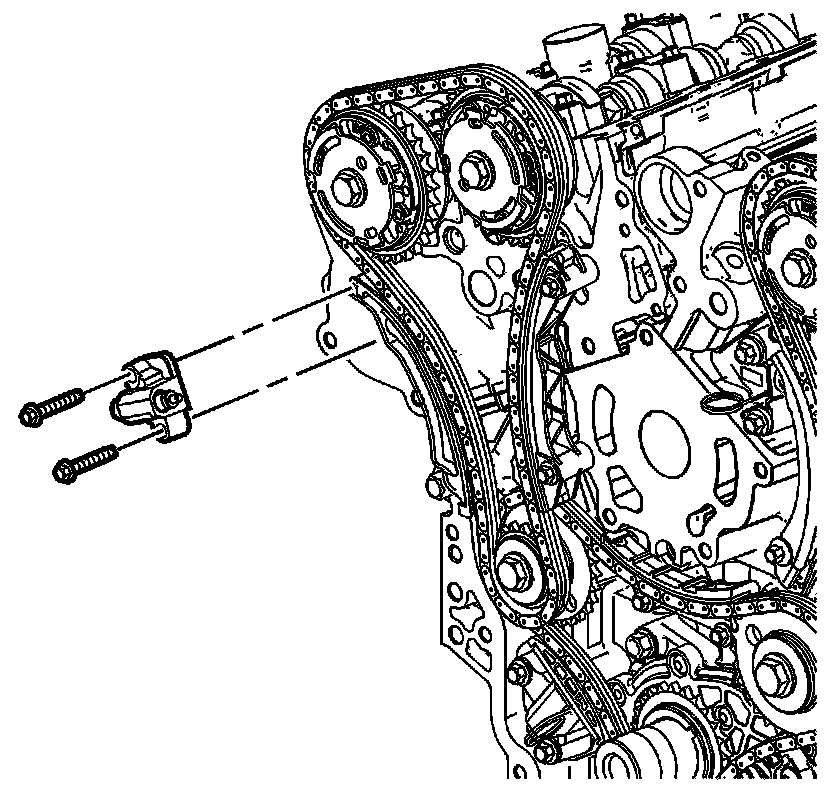

2. Remove the right bank secondary camshaft drive chain tensioner. 22. Secondary Timing Chain Tensioner Removal - Right

Installation Procedure





1. Install the right bank secondary camshaft drive chain tensioner. 127. Secondary Timing Chain Tensioner Installation - Right

2. Install the engine front cover. Service and Repair
