Secondary Timing Chain Tensioner Shoe Replacement - Left



SECONDARY TIMING CHAIN TENSIONER SHOE REPLACEMENT - LEFT

Removal Procedure
1. Remove the engine front cover. Service and Repair

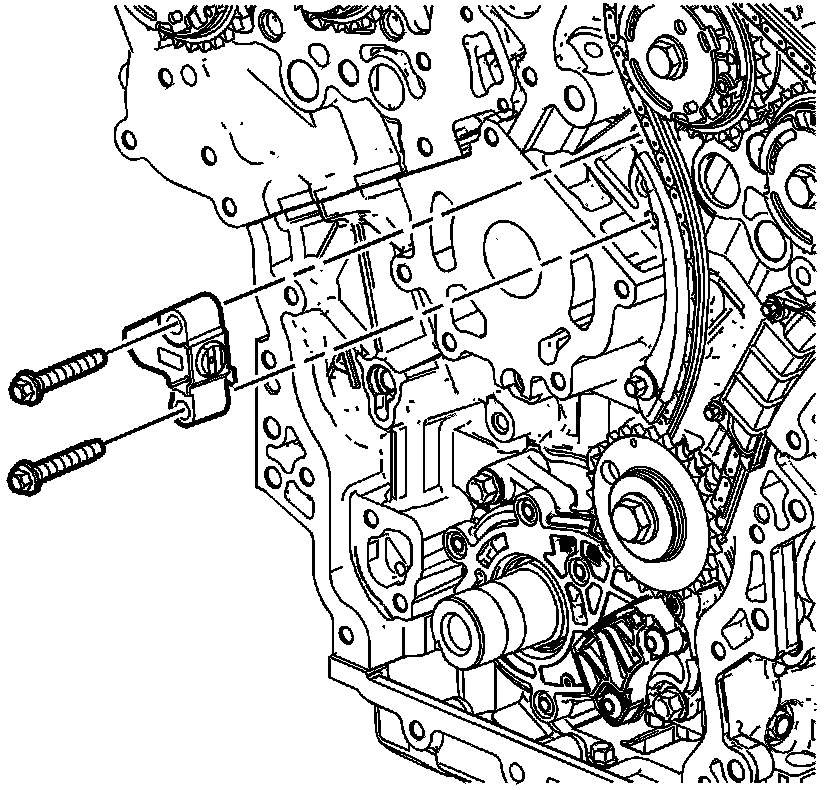

2. Remove the left bank secondary camshaft drive chain tensioner. 31. Secondary Timing Chain Tensioner Removal - Left

Installation Procedure





1. Install the left bank secondary camshaft drive chain tensioner. 118. Secondary Timing Chain Tensioner Installation - Left

2. Install the engine front cover. Service and Repair
