Secondary Timing Chain Guide Replacement - Right



SECONDARY TIMING CHAIN GUIDE REPLACEMENT - RIGHT

Removal Procedure
1. Remove the engine front cover. Service and Repair

2. Remove the right bank secondary camshaft drive chain tensioner. 22. Secondary Timing Chain Tensioner Removal - Right

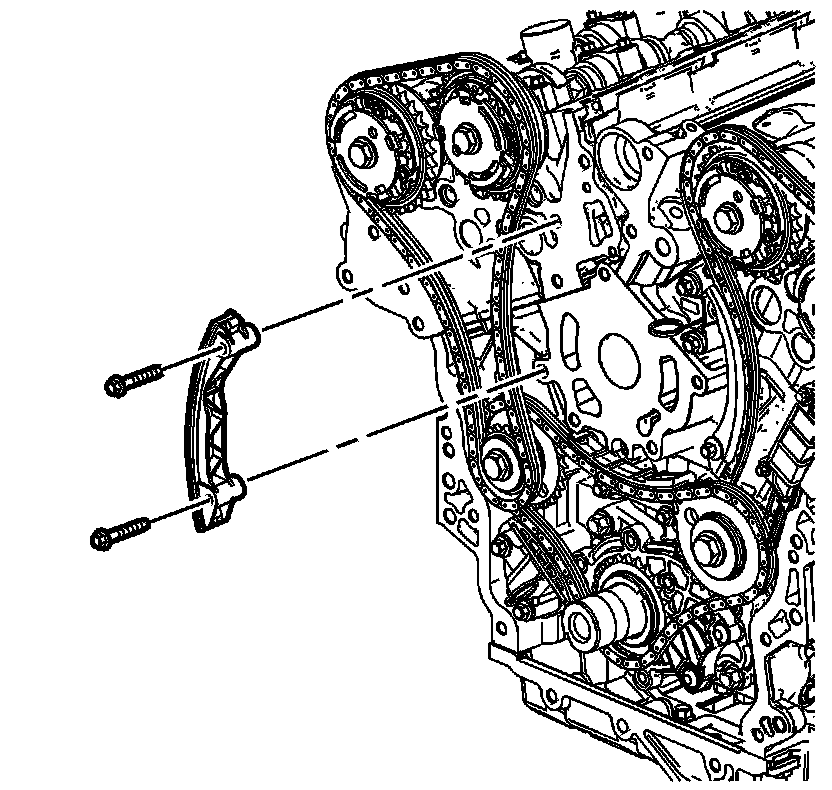

3. Remove the right bank secondary camshaft drive chain guide. 24. Secondary Timing Chain Guide Removal - Right

Installation Procedure





1. Install the right bank secondary camshaft drive chain guide. 125. Secondary Timing Chain Guide Installation - Right

2. Install the right bank secondary camshaft drive chain tensioner. 127. Secondary Timing Chain Tensioner Installation - Right

3. Install the engine front cover. Service and Repair
