Idler Pulley: Service and Repair


Drive Belt Idler Pulley Replacement

Removal Procedure

1. Important: Do not remove the belt from the air conditioning (A/C) compressor or water pump.

Remove the drive belt from the generator.

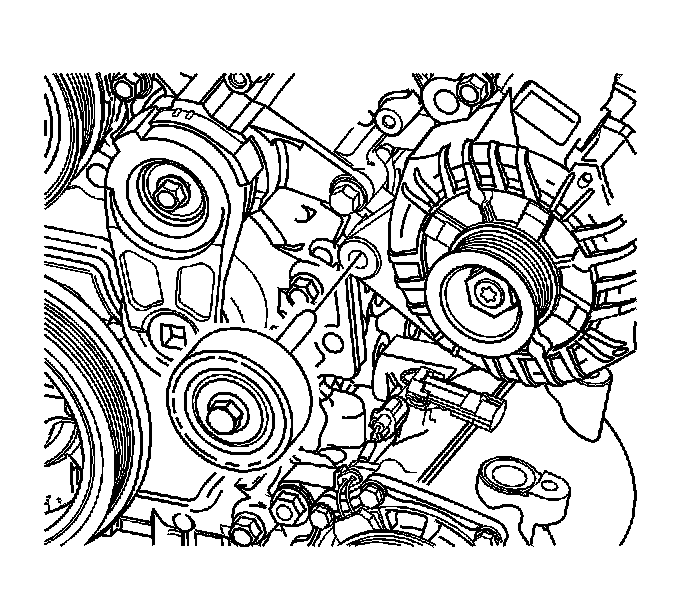

2. Remove the drive belt idler pulley bolt.
3. Remove the drive belt idler pulley.

Installation Procedure





1. Install the drive belt idler pulley.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the drive belt idler pulley bolt.
Tighten the drive belt idler pulley bolt to 50 Nm (37 ft. lbs.).
3. Install the drive belt.
