Rear Parking Assist Inoperative - Red Indicator Flashes



REAR PARKING ASSIST INOPERATIVE - RED INDICATOR FLASHES

DIAGNOSTIC AIDS
Before performing this procedure, ensure that the vehicle park brake is SET.

TEST

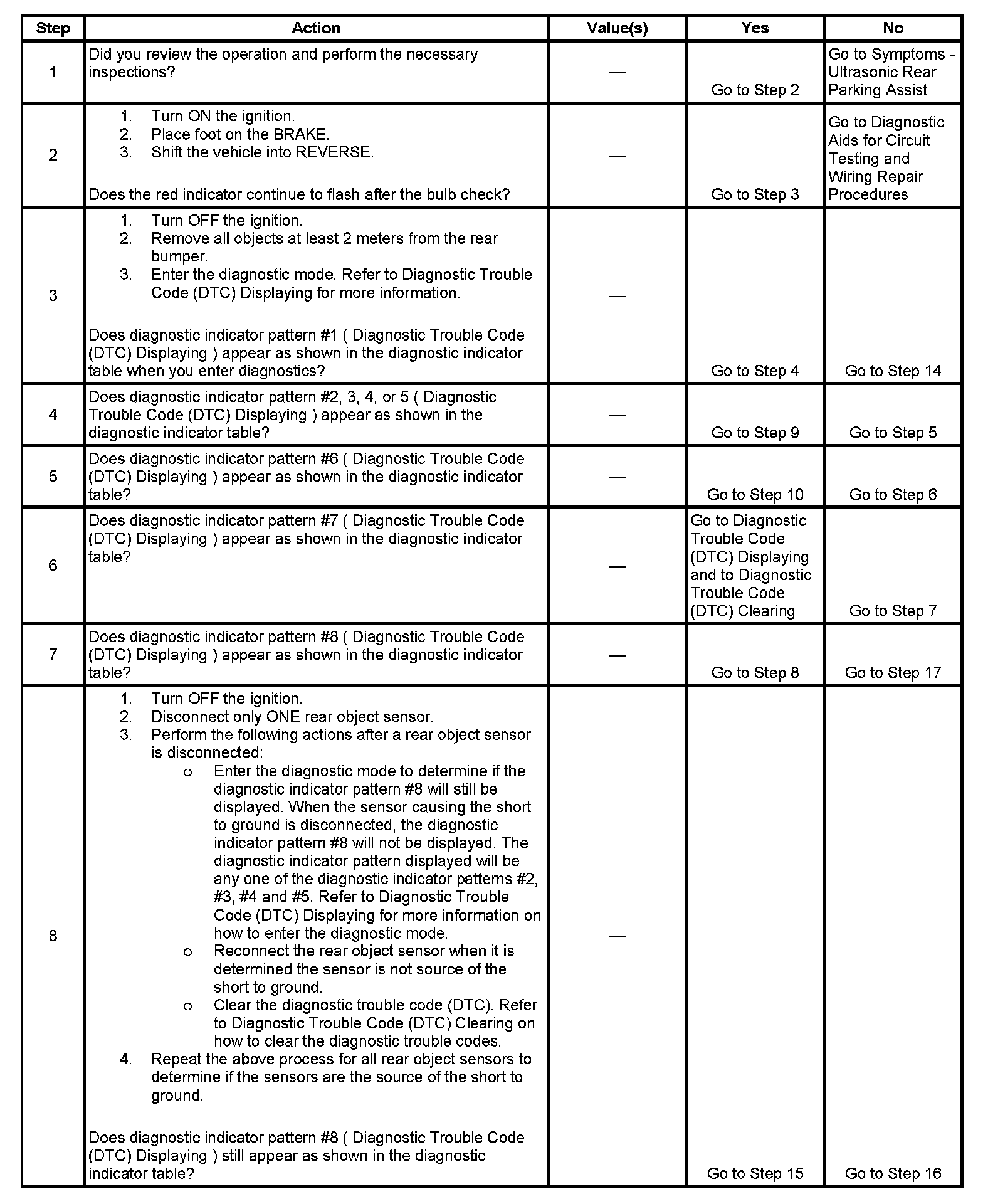

Steps 1-8:

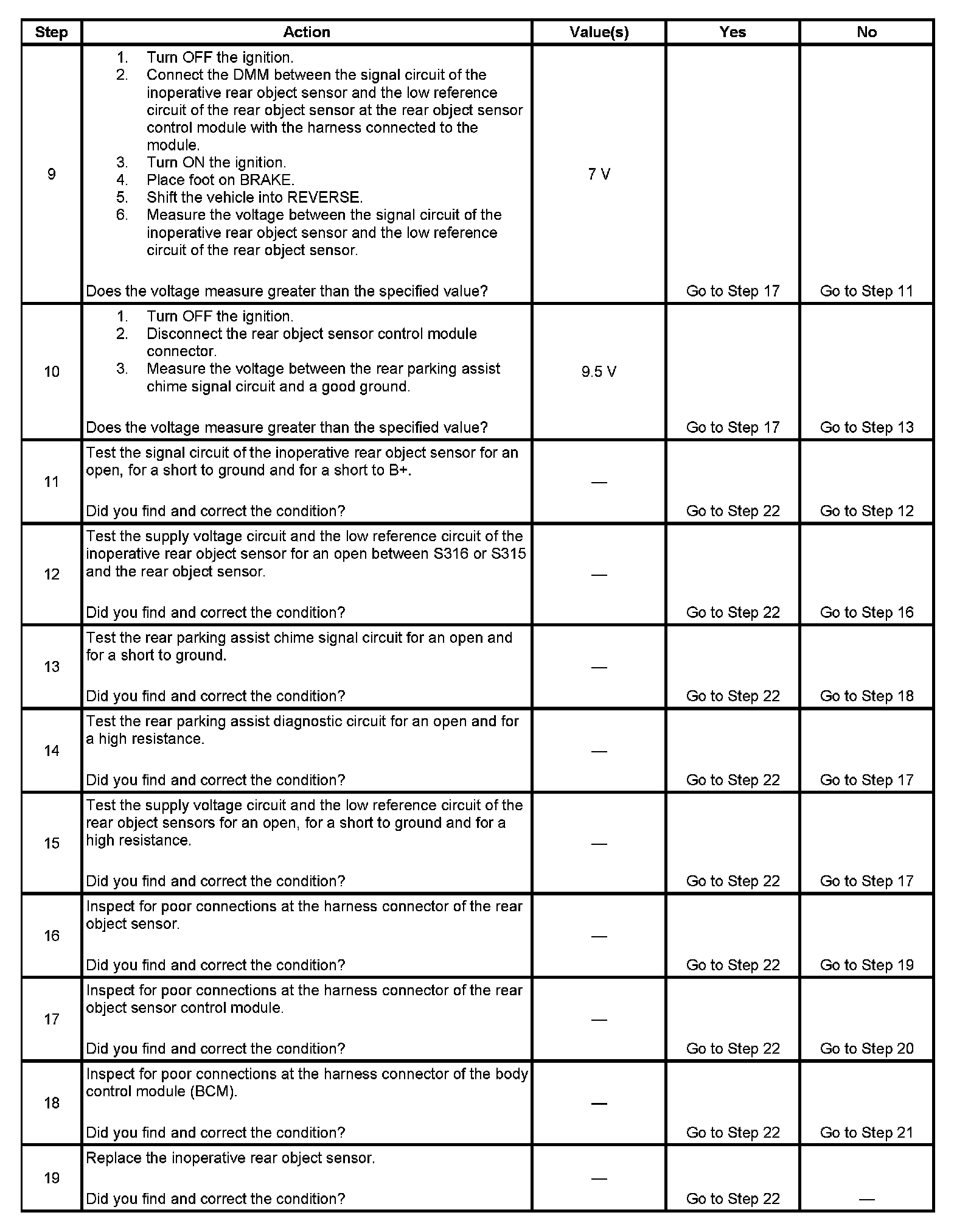

Steps 9-19:




Steps 20-22:
