Antenna Extension Cable Replacement

ANTENNA EXTENSION CABLE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left lower pillar garnish molding.
2. Remove the left instrument panel (I/P) insulator.
3. Disconnect the antenna extension cable (1) from the antenna cable.




4. Remove the radio.
5. Cut off the visible ends of the antenna extension cable.

INSTALLATION PROCEDURE




1. Route the antenna extension cable. Secure the cable.

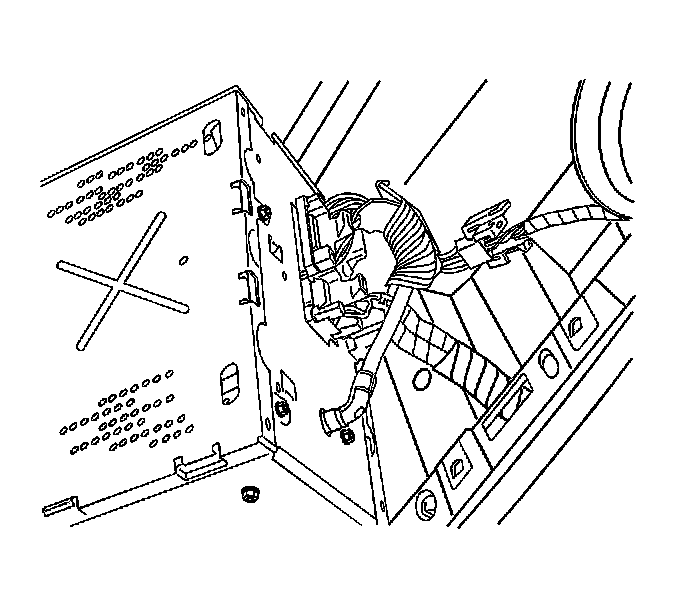

2. Connect the antenna extension cable to the radio. Install the radio.




3. Connect the antenna extension cable from the radio to the antenna cable (1).
4. Install the left lower pillar garnish molding.
5. Install the left I/P insulator.
