Instrument Cluster Schematics

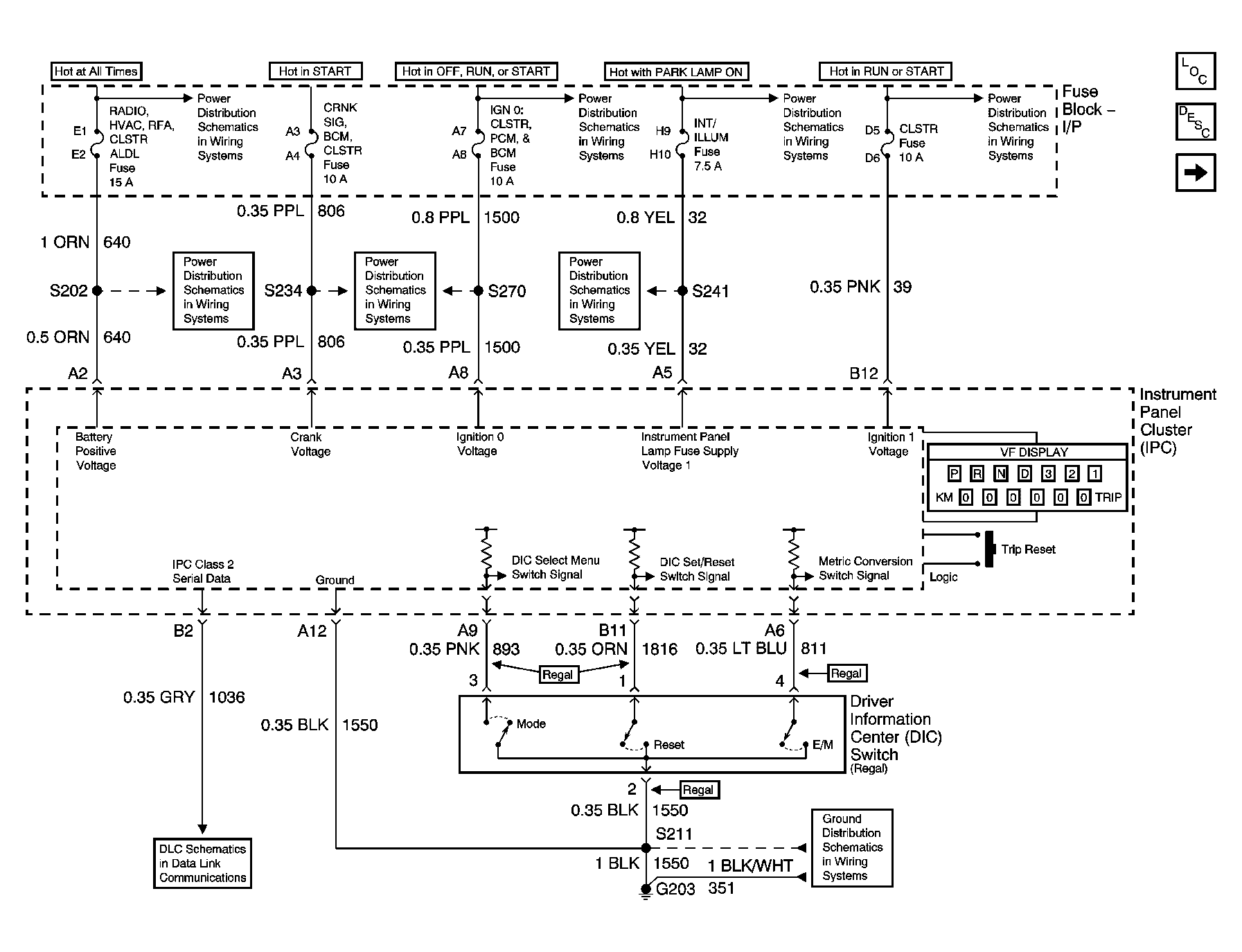

Fig 1: Power, Ground, DIC Switch, And DLC
GM1354615Courtesy of GENERAL MOTORS CORP.

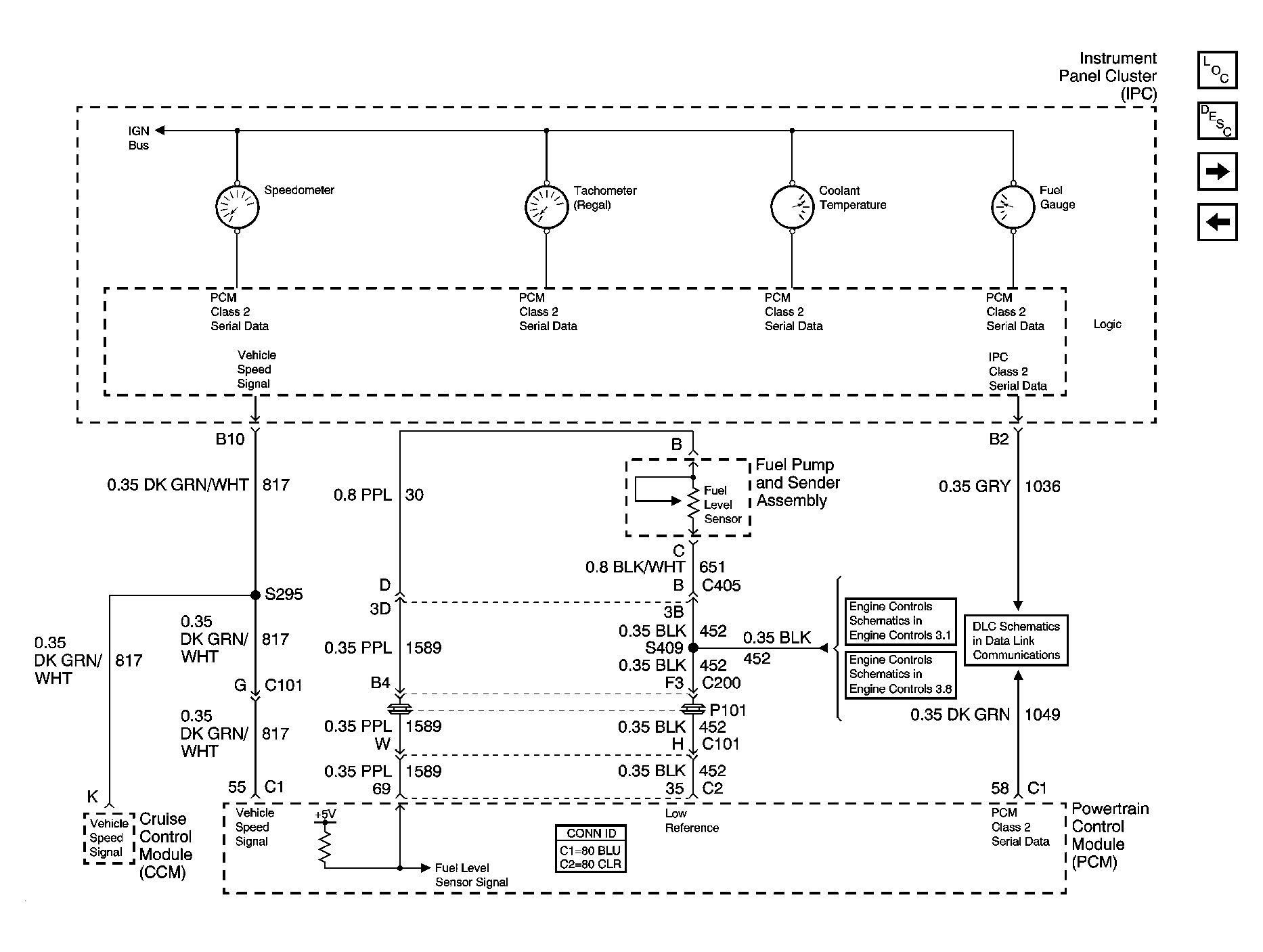

Fig 2: Gages
GM1218414Courtesy of GENERAL MOTORS CORP.

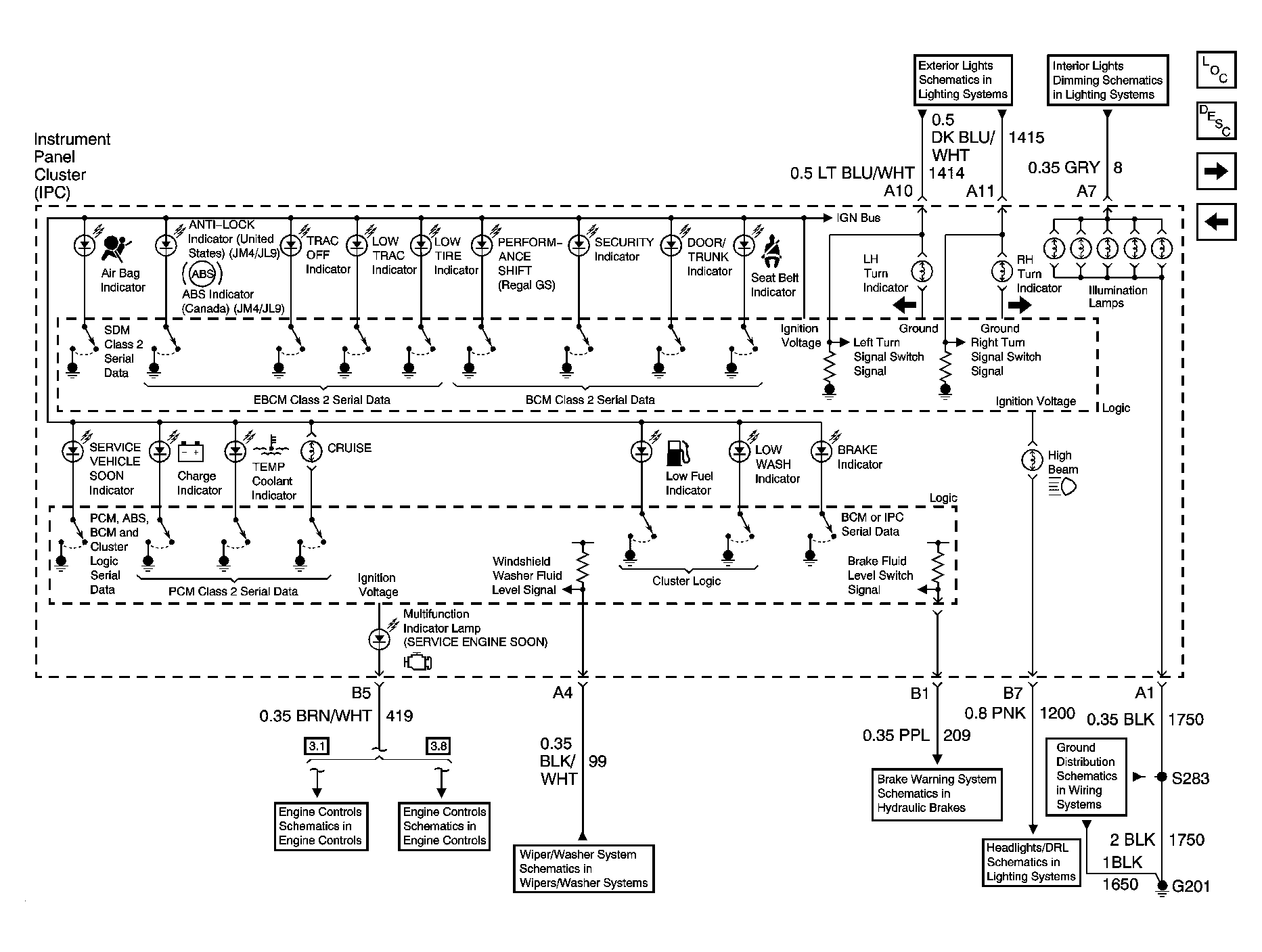

Fig 3: Indicators, Page 1 Of 2
GM1218418Courtesy of GENERAL MOTORS CORP.

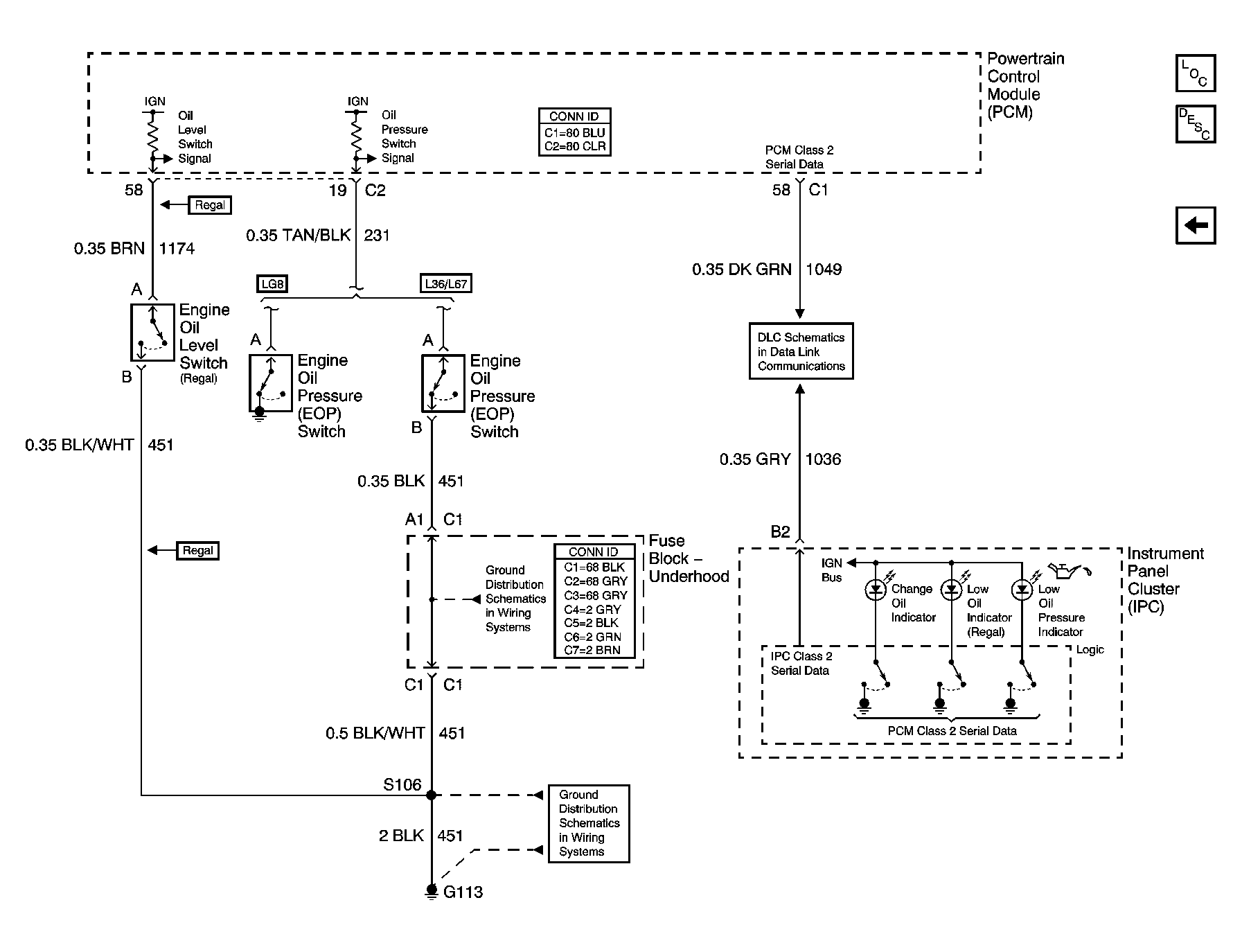

Fig 4: Indicators, Page 2 Of 2
GM1218420Courtesy of GENERAL MOTORS CORP.
