Interior Lights Schematics

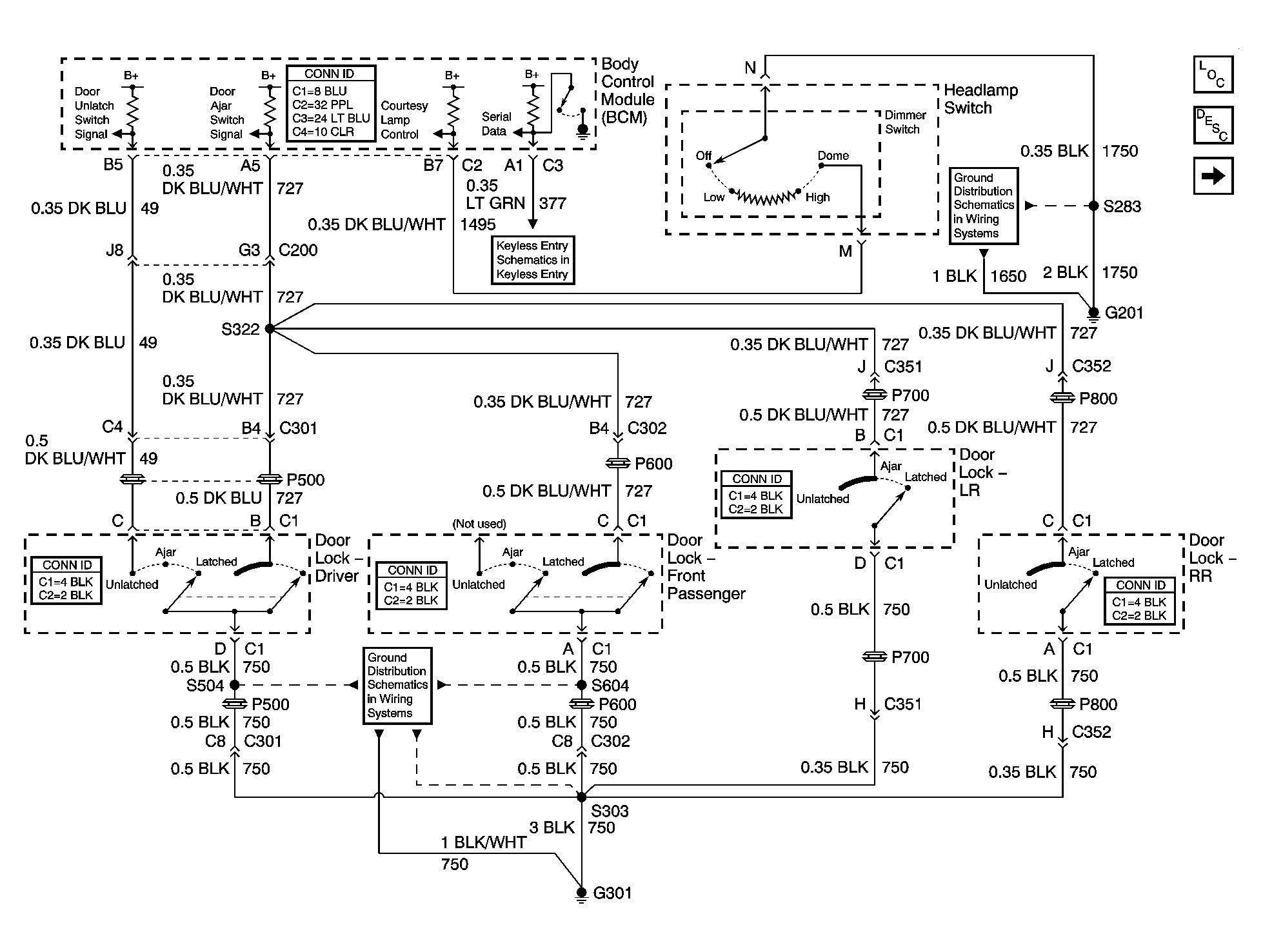

Fig 1: Lamp Controls Schematic
GM862541Courtesy of GENERAL MOTORS CORP.

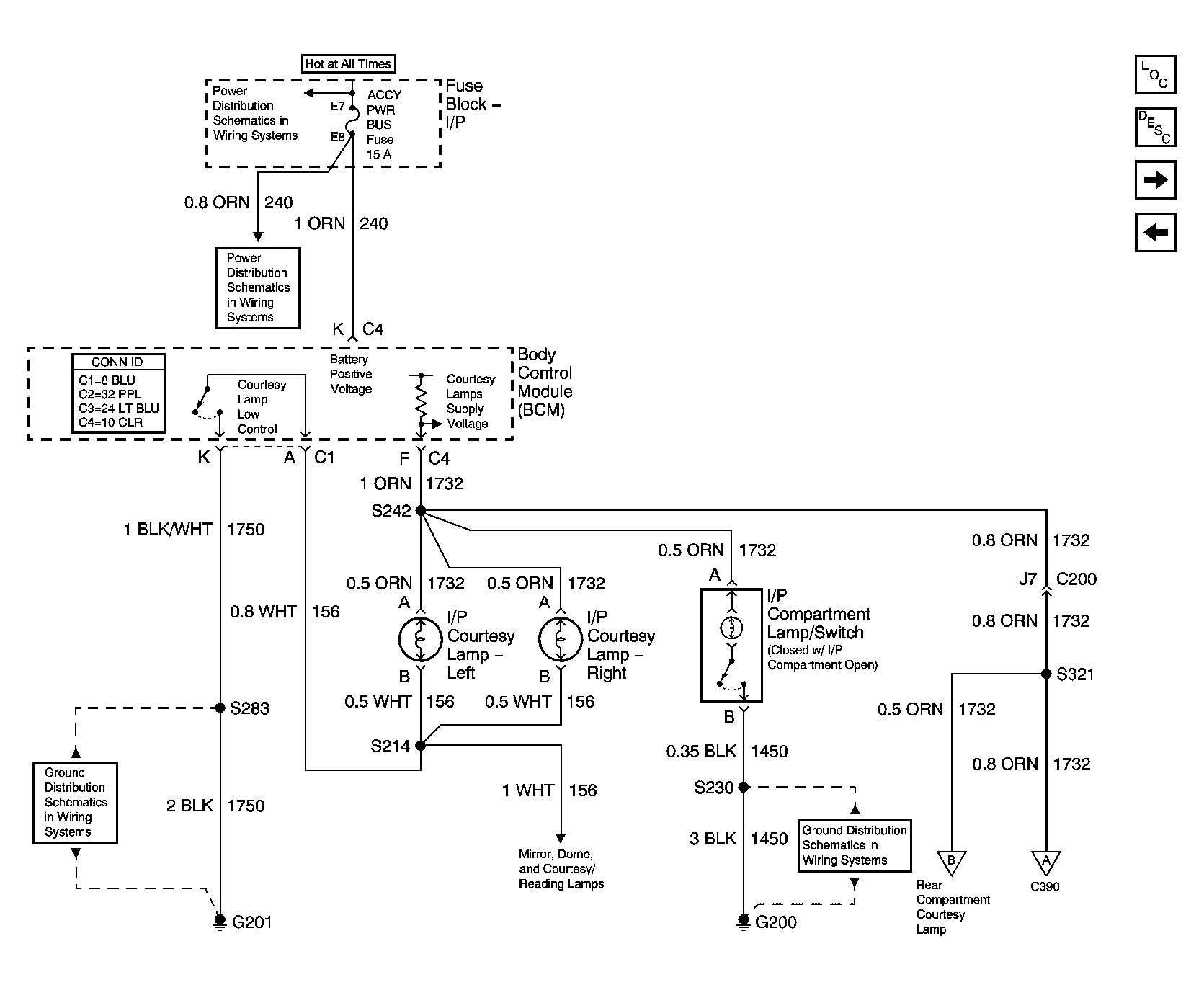

Fig 2: I/P Courtesy Lamps Schematic
GM1219359Courtesy of GENERAL MOTORS CORP.

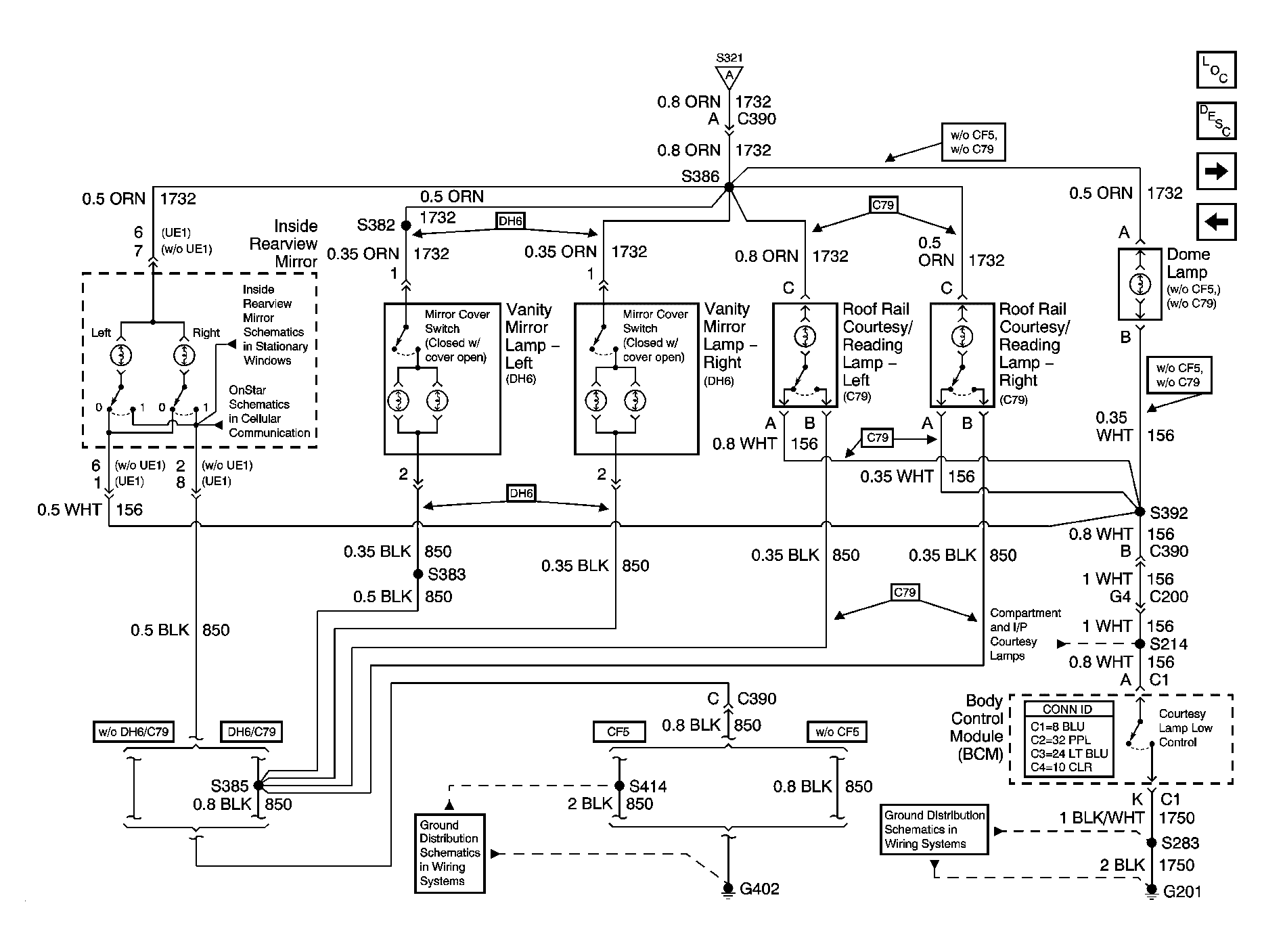

Fig 3: Mirror, Dome And Courtesy/Reading Lamps Schematic
GM1353630Courtesy of GENERAL MOTORS CORP.

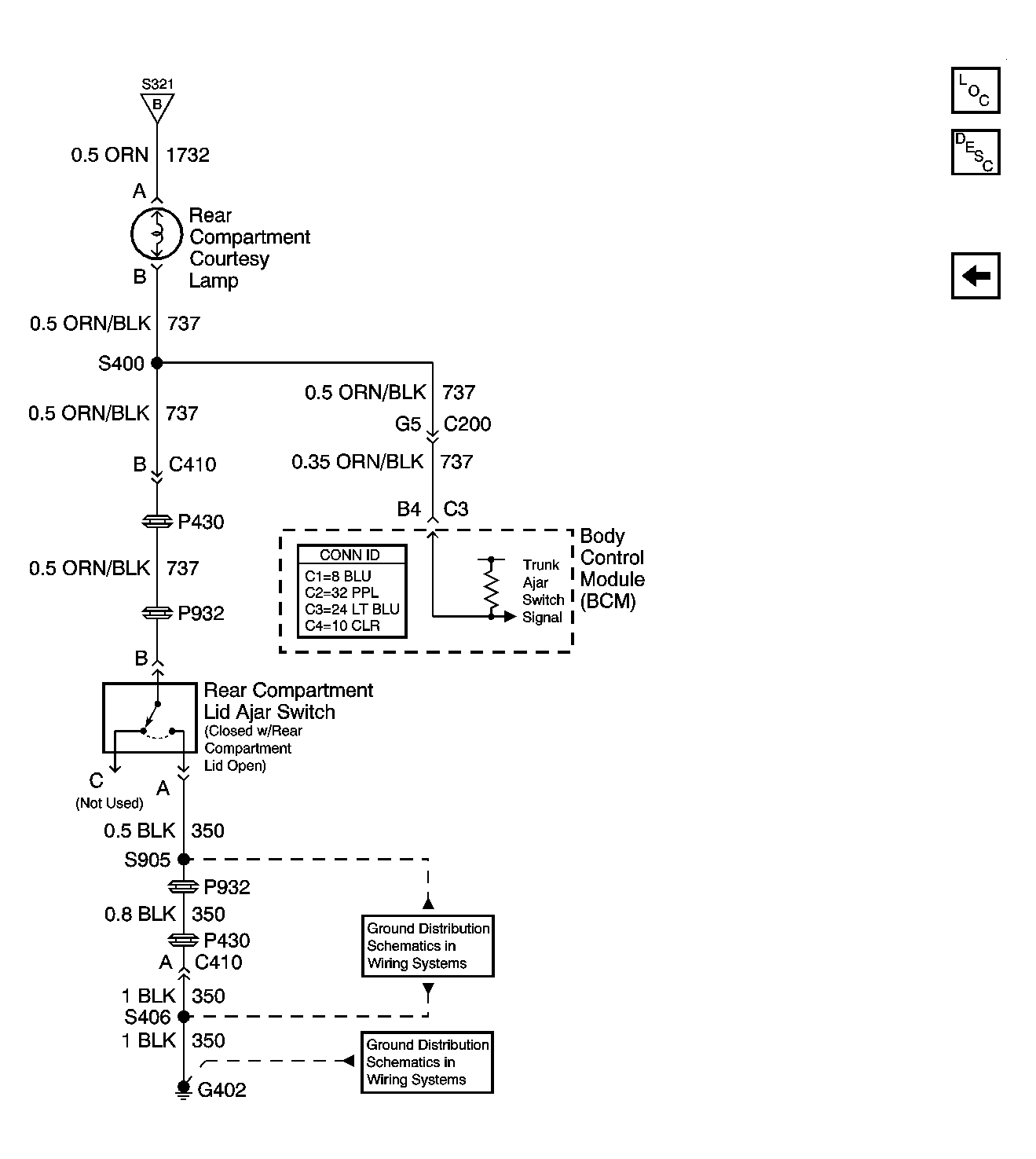

Fig 4: Rear Compartment Courtesy Lamp Schematic
GM1381212Courtesy of GENERAL MOTORS CORP.
