Headlights/Daytime Running Lights (DRL) Schematics

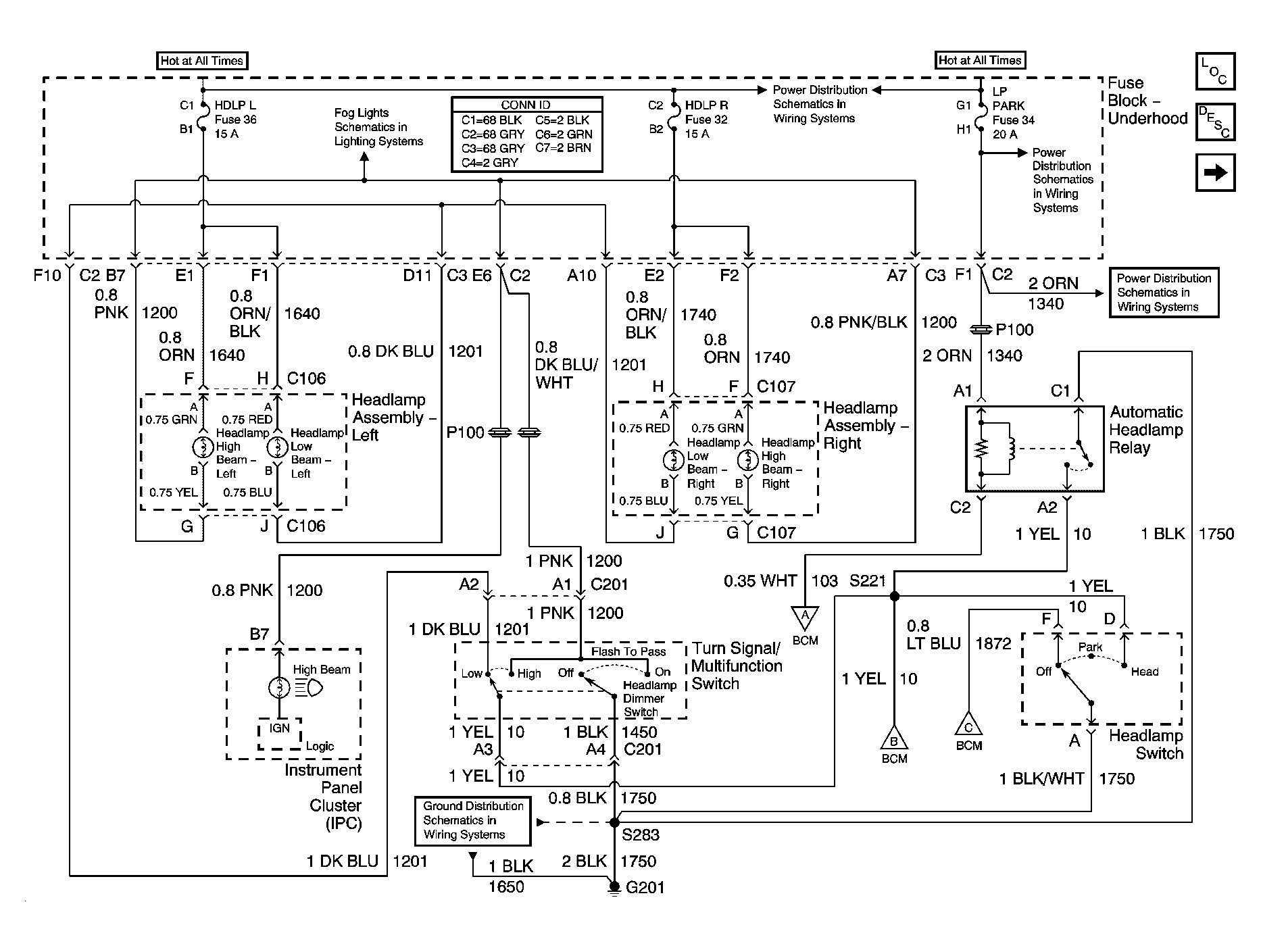

Fig 1: Headlamps Schematic

GM1218913

Courtesy of GENERAL MOTORS CORP.

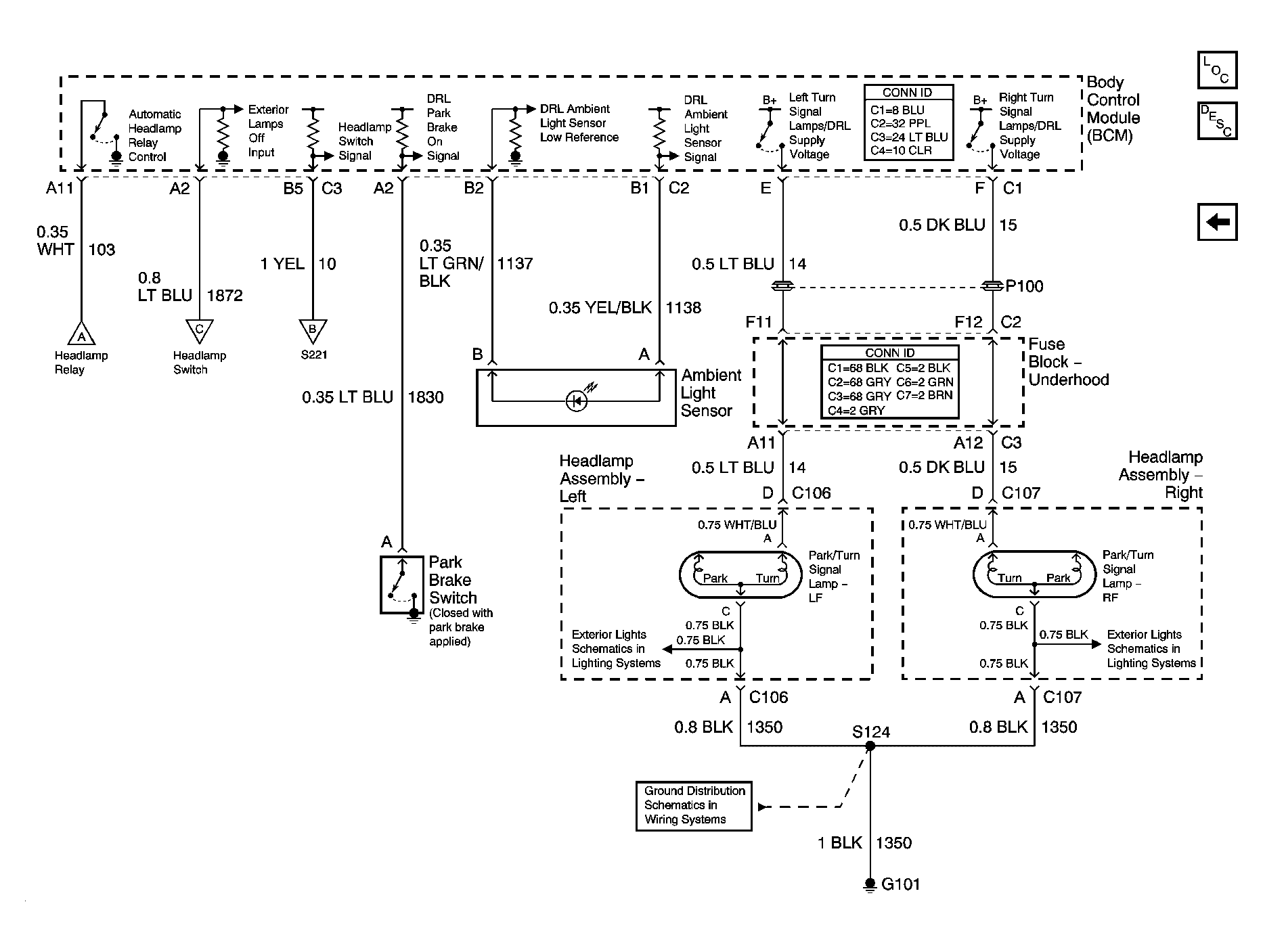

Fig 2: Daytime Running Lamps (DRL) Schematic

GM1218914

Courtesy of GENERAL MOTORS CORP.
