Radio/Audio System Schematics

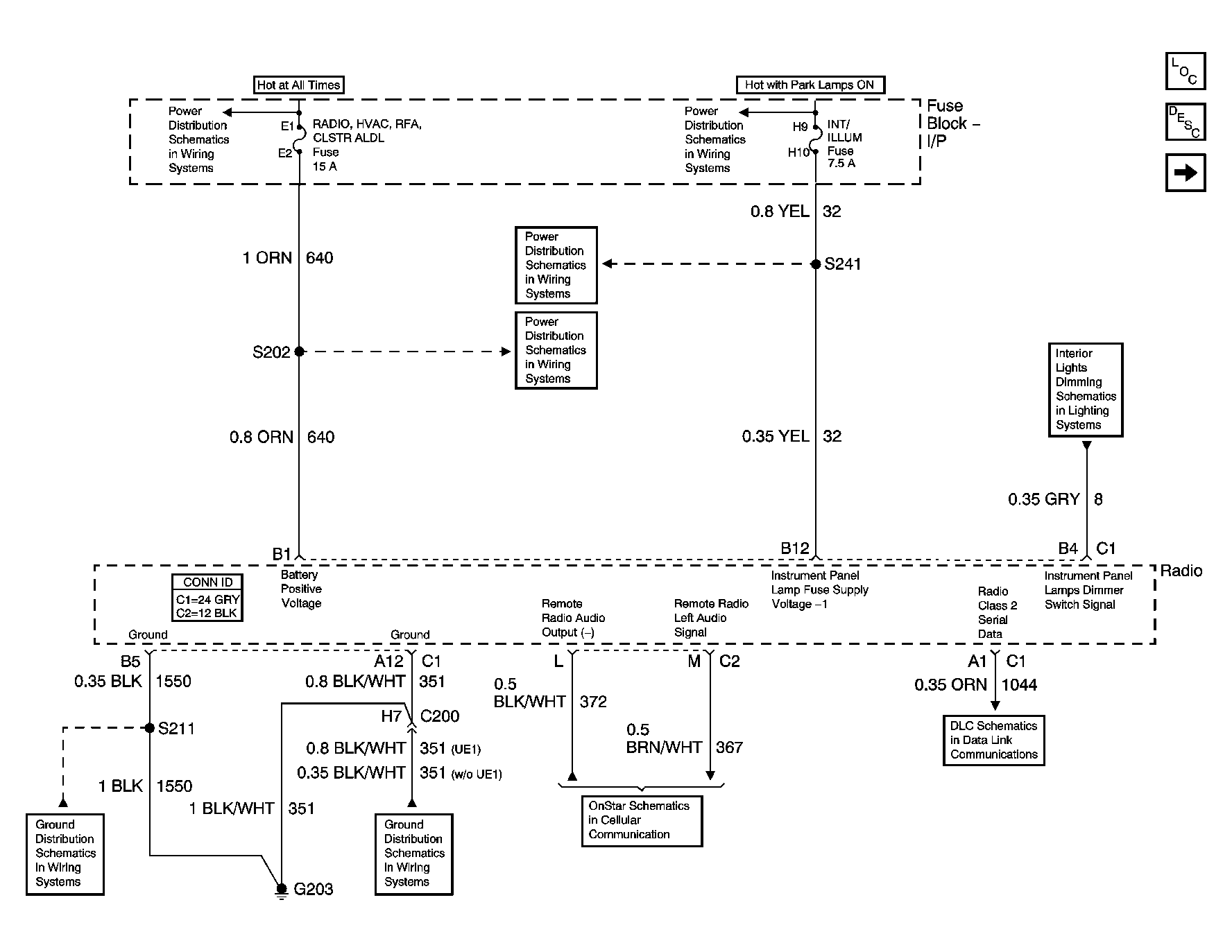

Fig 1: Power, Ground, and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

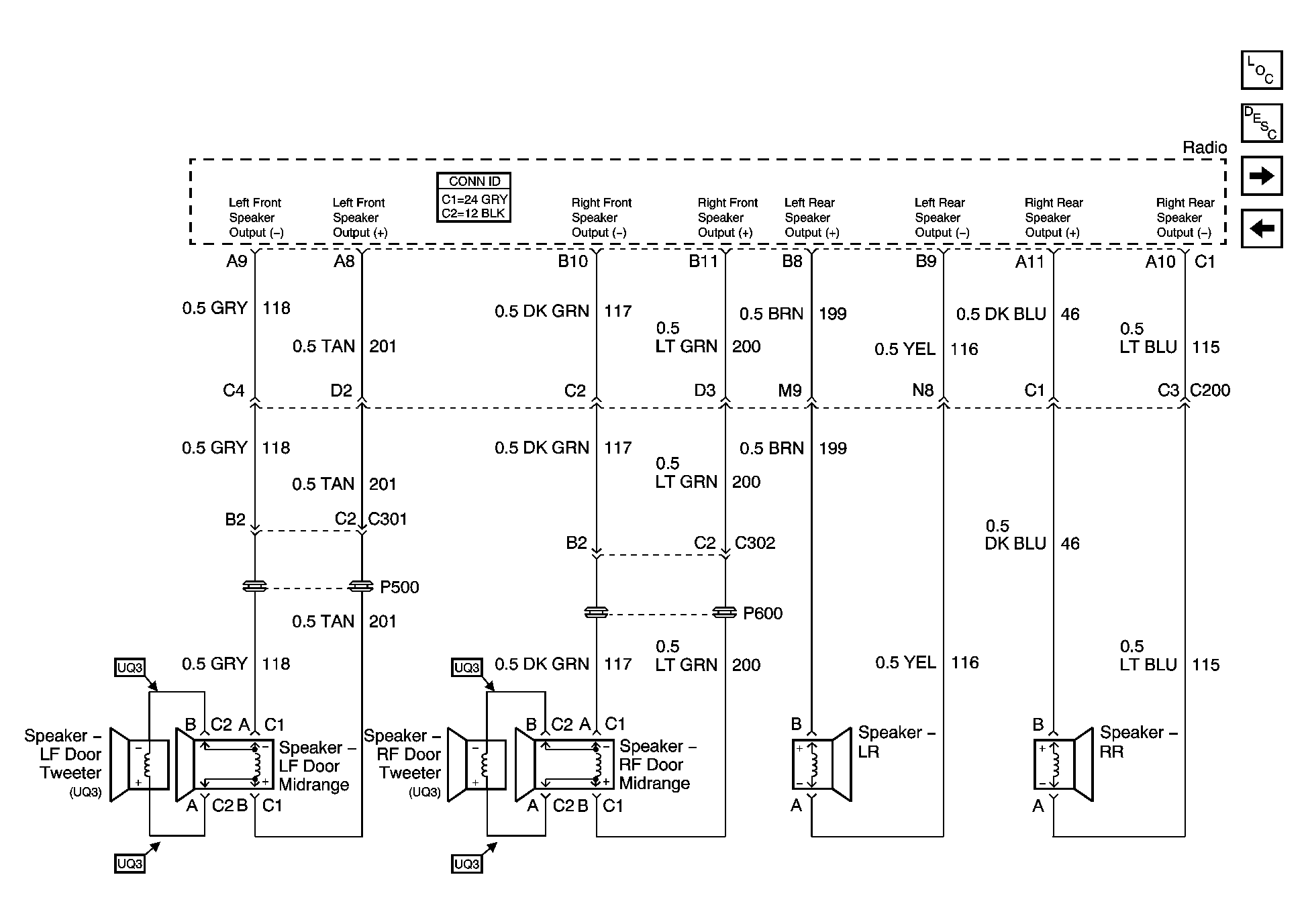

Fig 2: Speakers (UQ3/UX7 w/o UK3) Schematic

Courtesy of GENERAL MOTORS CORP.

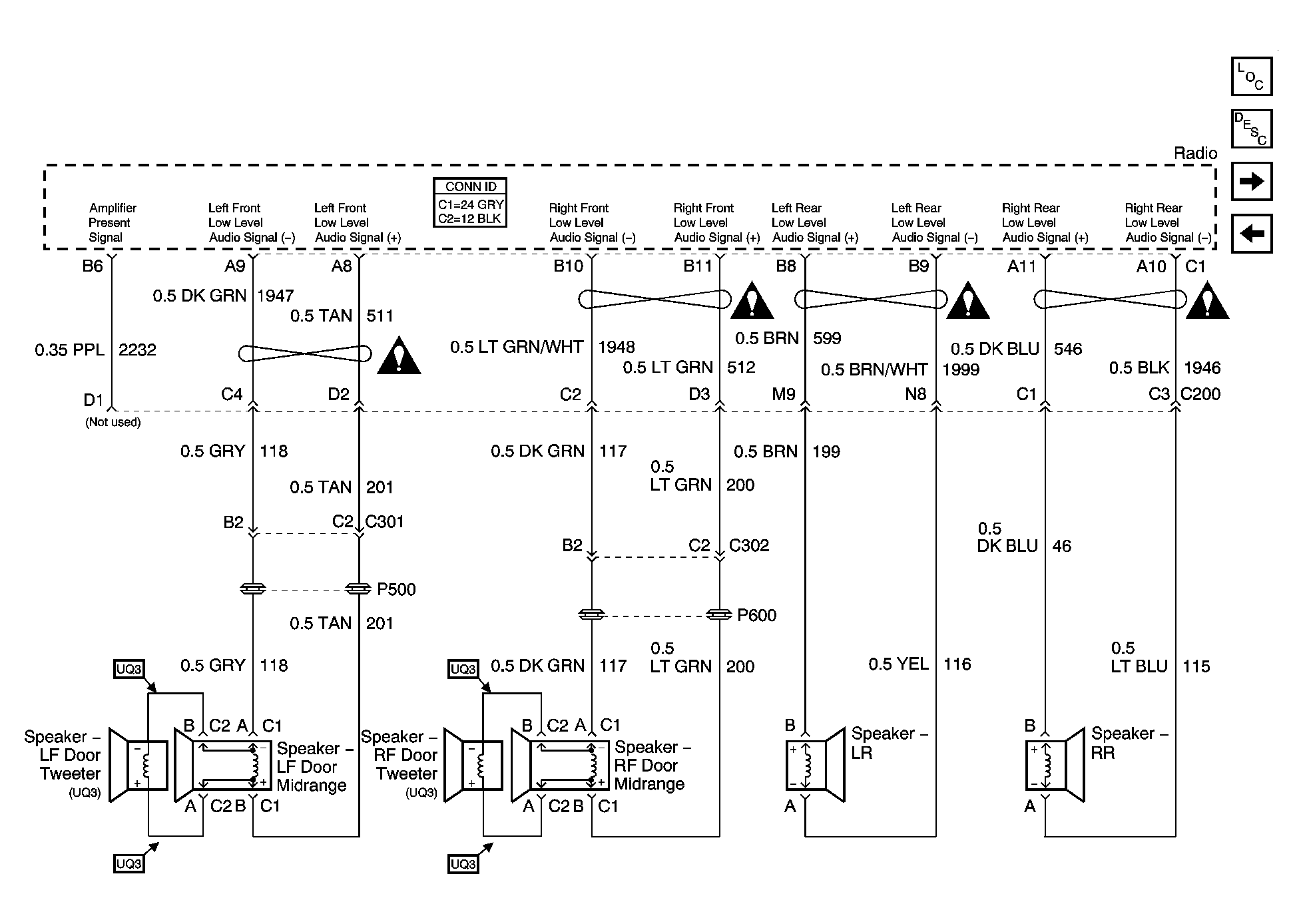

Fig 3: Speakers (UQ3/UX7 w/UK3) Schematic

Courtesy of GENERAL MOTORS CORP.

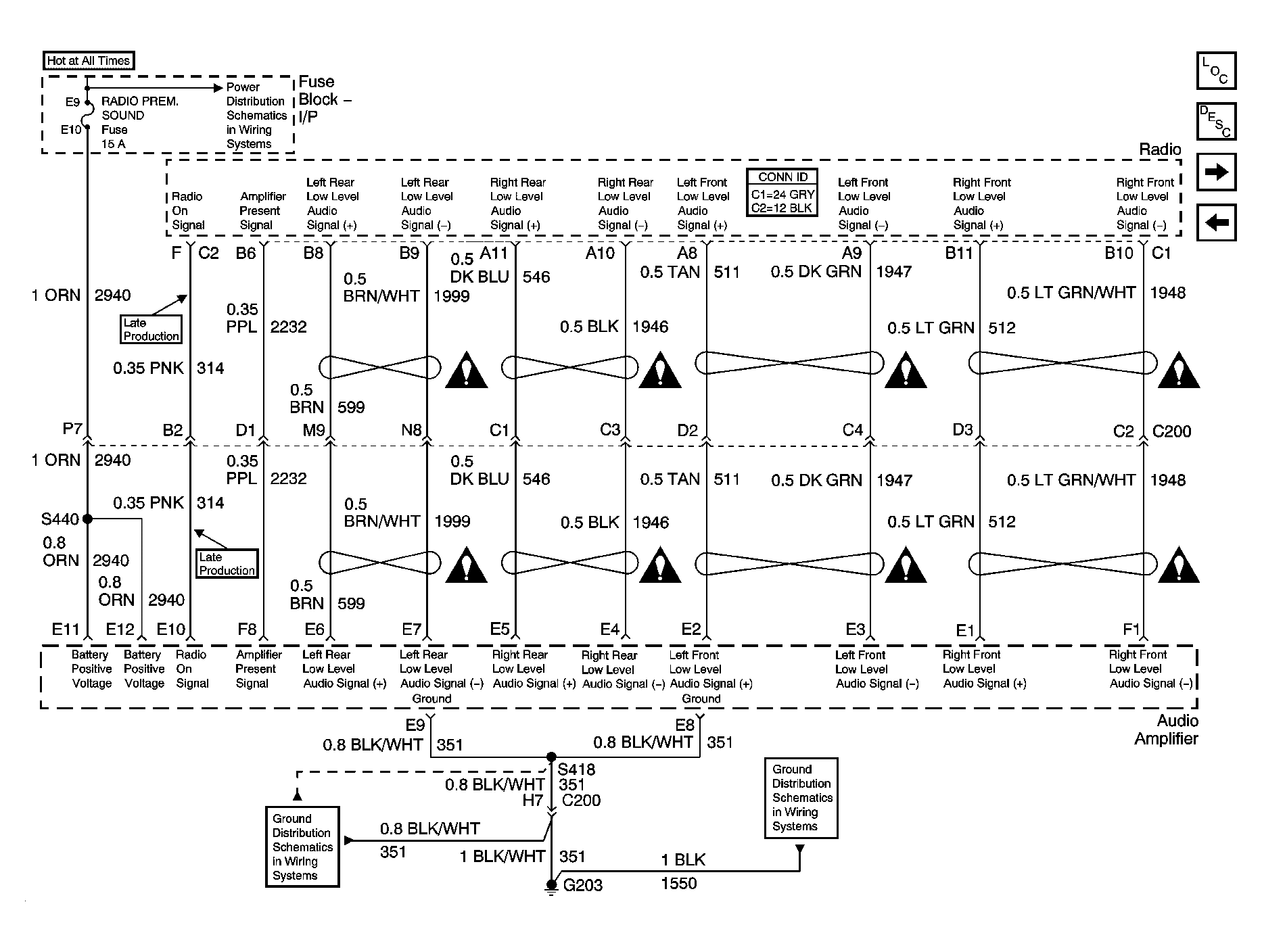

Fig 4: Premium Sound Audio Signals (U85) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Rear Speakers (U85) Schematic

Courtesy of GENERAL MOTORS CORP.

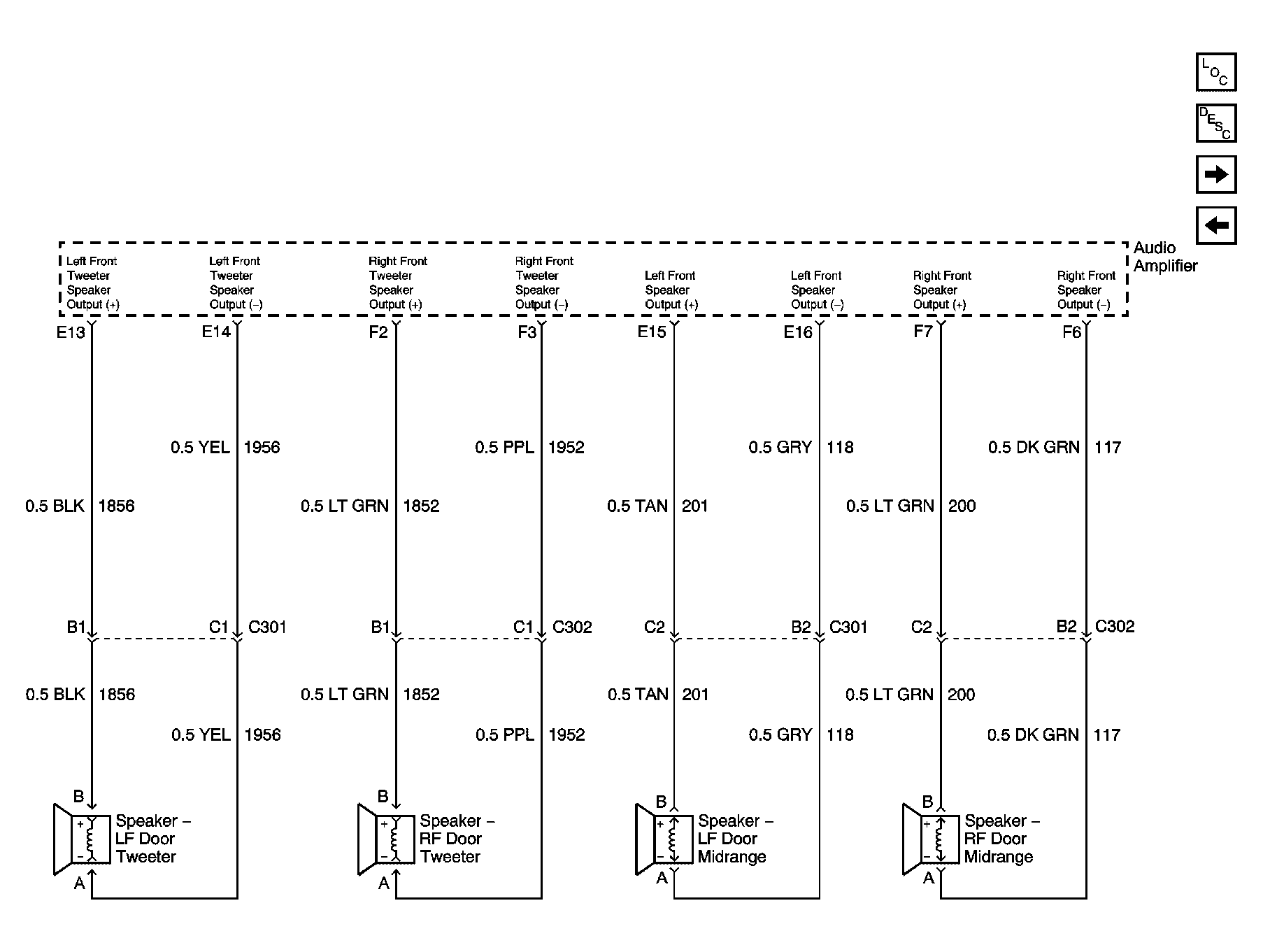

Fig 6: Front Speakers (U85) Schematic

Courtesy of GENERAL MOTORS CORP.

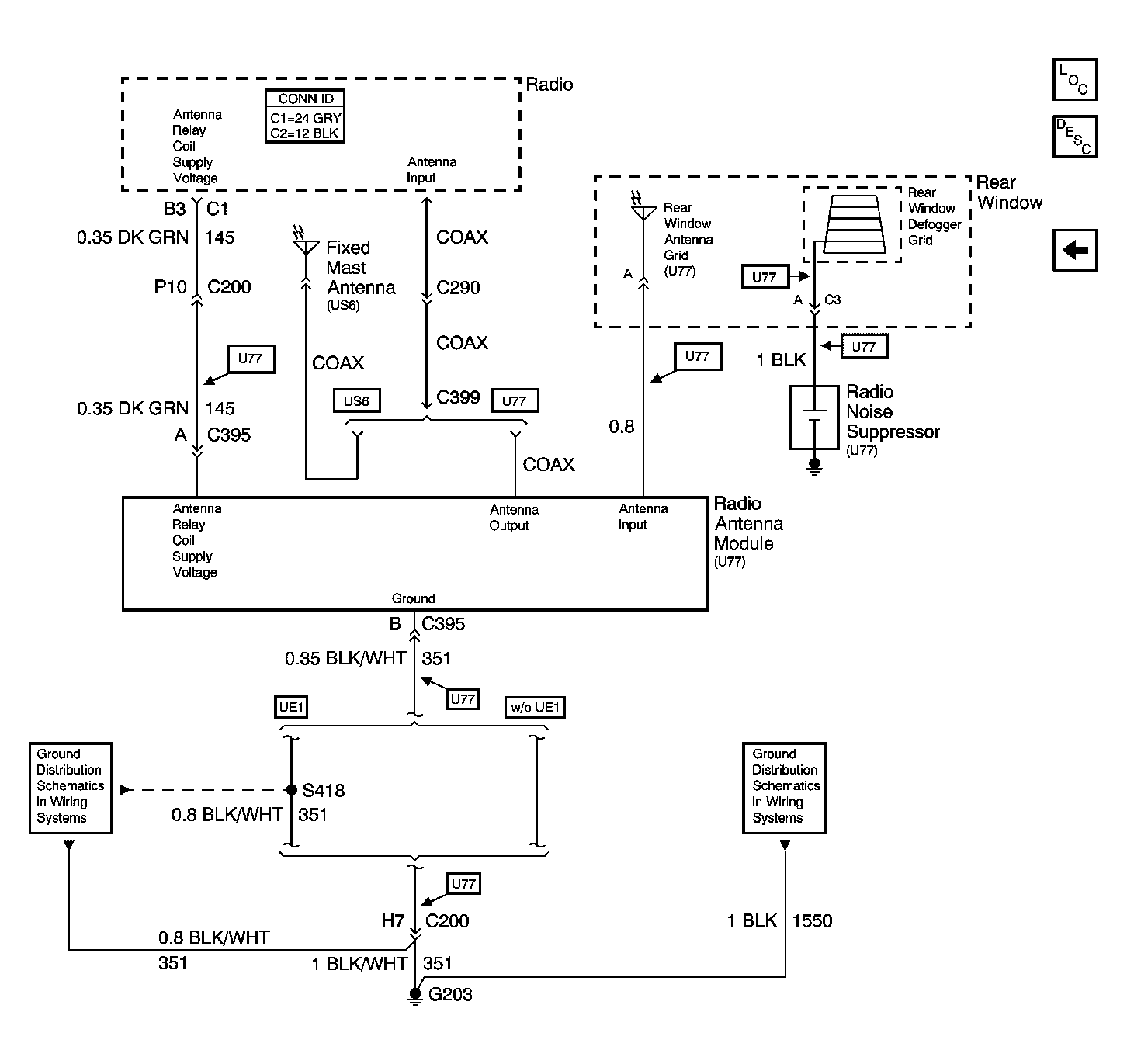

Fig 7: Antenna Module Schematic

Courtesy of GENERAL MOTORS CORP.
