Instrument Panel, Gages, and Console Component Views

Fig 1: Lower Rear Of The Engine Components View (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C125
2	Engine Oil Pressure Switch
3	Vehicle Speed Sensor
4	Knock Sensor (KS) 2
5	Knock Sensor (KS) 2 Connector
6	Knock Sensor (KS) 2 Jumper Harness
7	C125

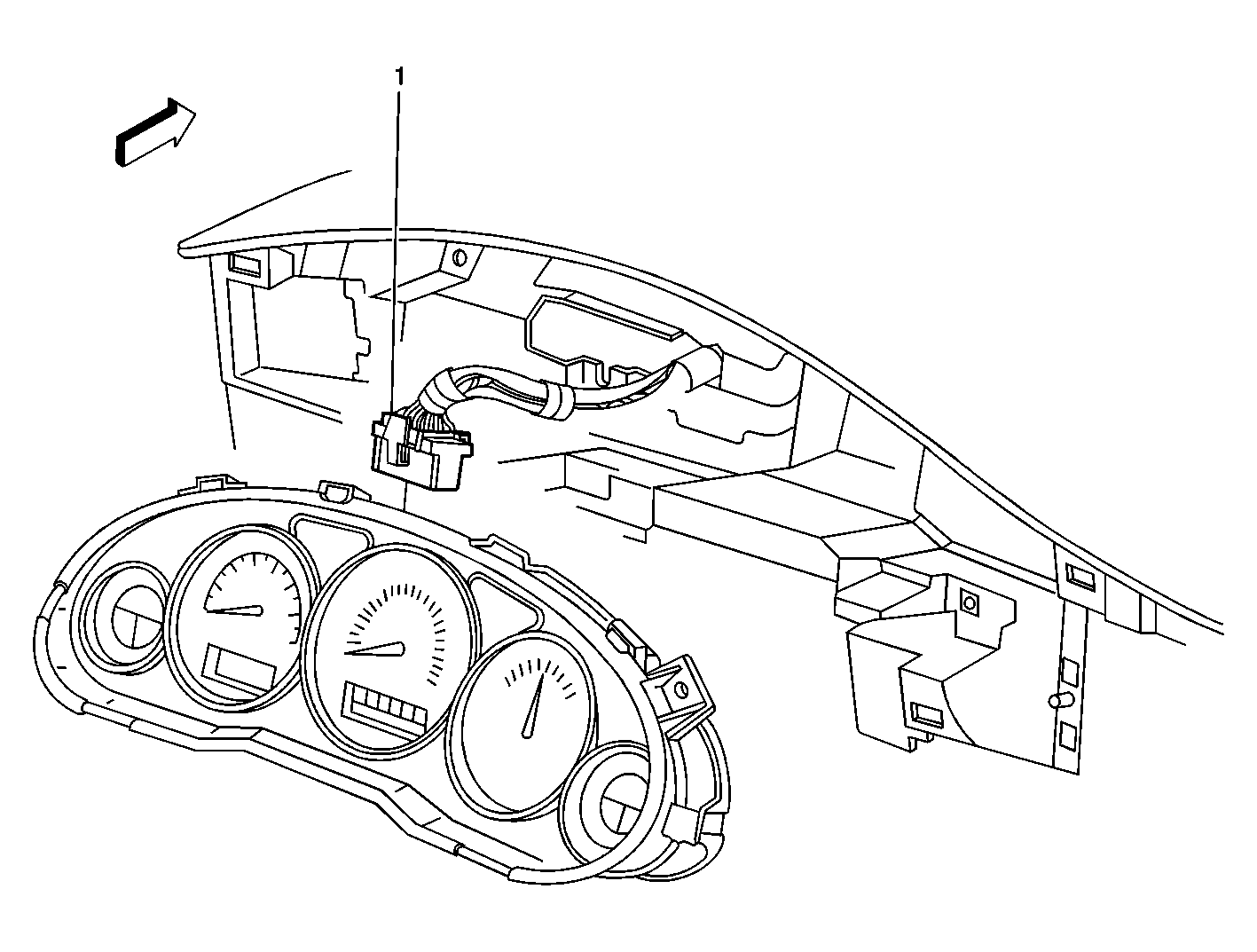

Fig 2: Left Center of Instrument Panel Connector View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC) Connector

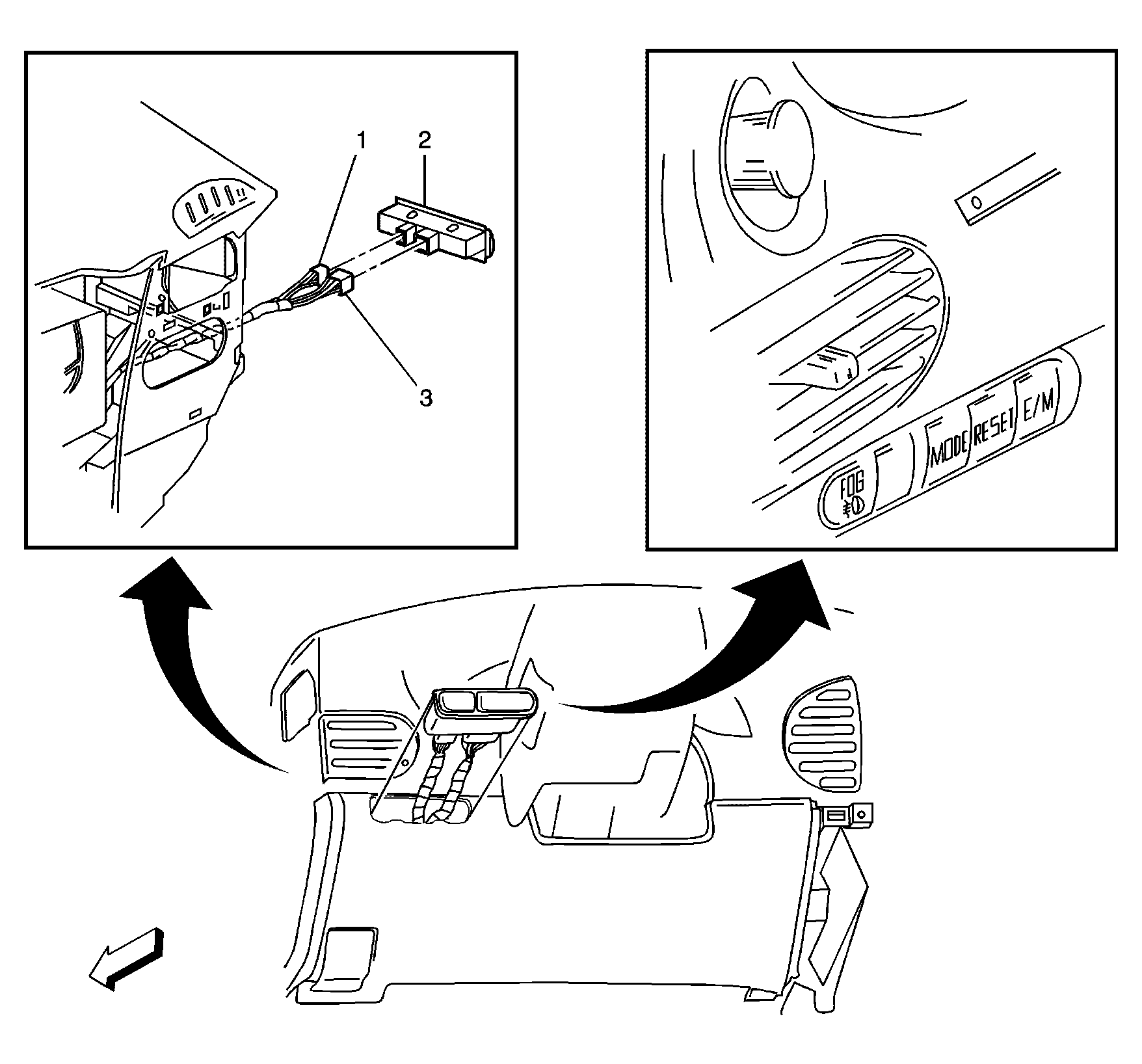

Fig 3: Lower Left Of Instrument Panel Components View (Regal)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Display Switch Connector
2	Driver Information Display/Fog Lamp Switch
3	Fog Lamp Switch Connector

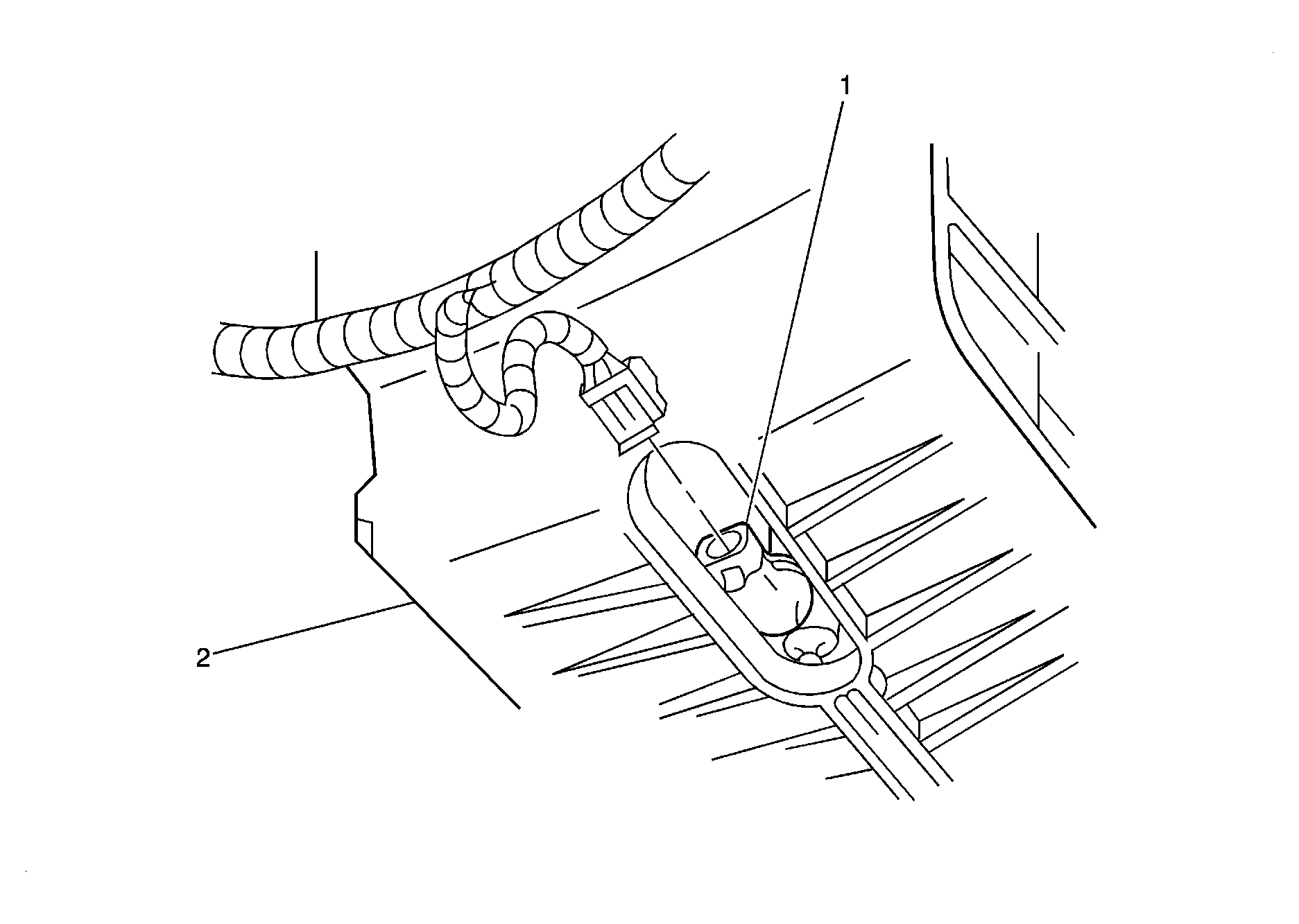

Fig 4: Center Of Oil Pan Connector View (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Level Switch
2	Engine Oil Pan
