Fuse Block - I/P - Label

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

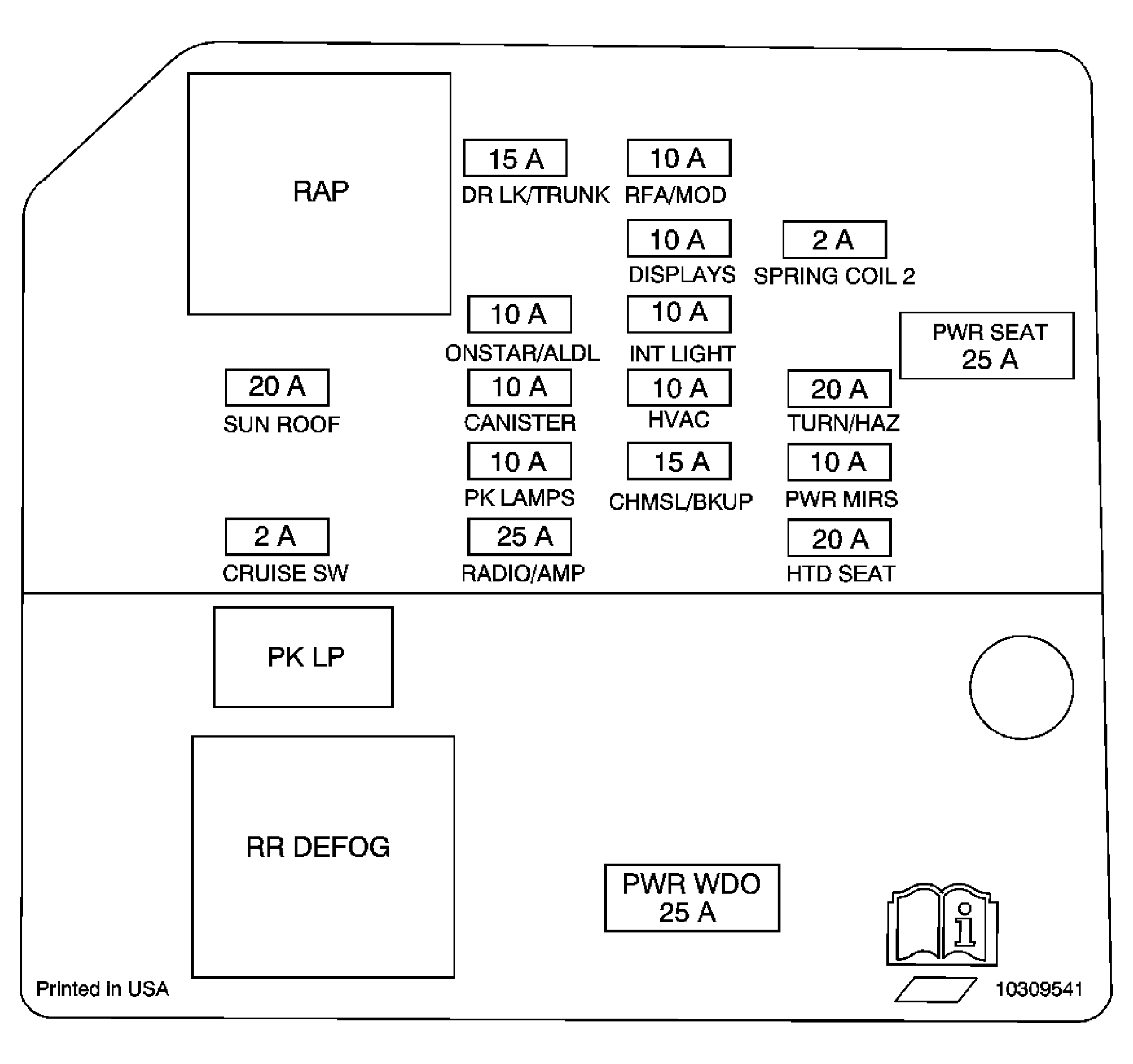

Fig 1: Fuse Block - I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Fuse Block - I/P - Application Table

Fuse	Rating	Description
CANISTER Fuse	10A	Evaporative Emission (EVAP) Canister Vent Solenoid
CHMSL/BKUP Fuse	15A	Body Control Module (BCM)
CRUISE SW Fuse	2A	Cruise Control Switch, TAP Shift Switch - Left (UK3) and TAP Shift Switch - Right (UK3)
DISPLAYS Fuse	10A	Head Up Display (HUD)(UV6), Instrument Panel Cluster (IPC) and Driver Information Center (DIC)
DR LK/TRUNK Fuse	15A	Body Control Module (BCM)
HTD SEAT Fuse	20A	Heated Seat Relay - Driver (KA1) and Heated Seat Relay - Front Passenger (KA1)
HVAC Fuse	10A	HVAC Control Module
INT LIGHT Fuse	10A	Body Control Module (BCM)
ONSTAR/ALDL Fuse	10A	Vehicle Communication Interface Module (VCIM) (UE1) and Data Link Connector (DLC)
PK LAMPS Fuse	10A	PK LP Relay
PK LP Relay	-	Marker Lamp - LF, Marker Lamp - RF, Park/Turn Signal Lamp - LF, Park/Turn Signal Lamp - RF, Tail/Stop and Turn Signal Lamp - Left, Tail/Stop and Turn Signal Lamp - Right, Marker Lamp - LR, Marker Lamp - RR, Tail Lamp - Left, Tail Lamp - Right, License Lamp - Left and License Lamp - Right
PWR MIRS Fuse	10A	Outside Rearview Mirror Switch
PWR SEAT Circuit Breaker	25A	Seat Adjuster Switch - Driver (AG1) and Seat Lumbar Switch - Driver (AL9)
PWR WDO Circuit Breaker	25A	Window Switch - Driver, and Window Switch - Front Passenger
RADIO/AMP Fuse	25A	Radio and Audio Amplifier (U87)
RAP Relay	-	SUN ROOF Fuse and PWR WDO Circuit Breaker
RFA/MOD Fuse	10A	Remote Control Door Lock Receiver (RCDLR) and Digital Radio Receiver (U2K)
RR DEFOG Relay	-	Rear Window Defogger Grid
SPRING COIL 2 Fuse	2A	Steering Wheel Controls - Left (UK3), and Steering Wheel Controls - Right (UK3)
SUN ROOF Fuse	20A	Sunroof Module (CF5)
TURN/HAZ Fuse	20A	Body Control Module (BCM)
