Starting and Charging Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

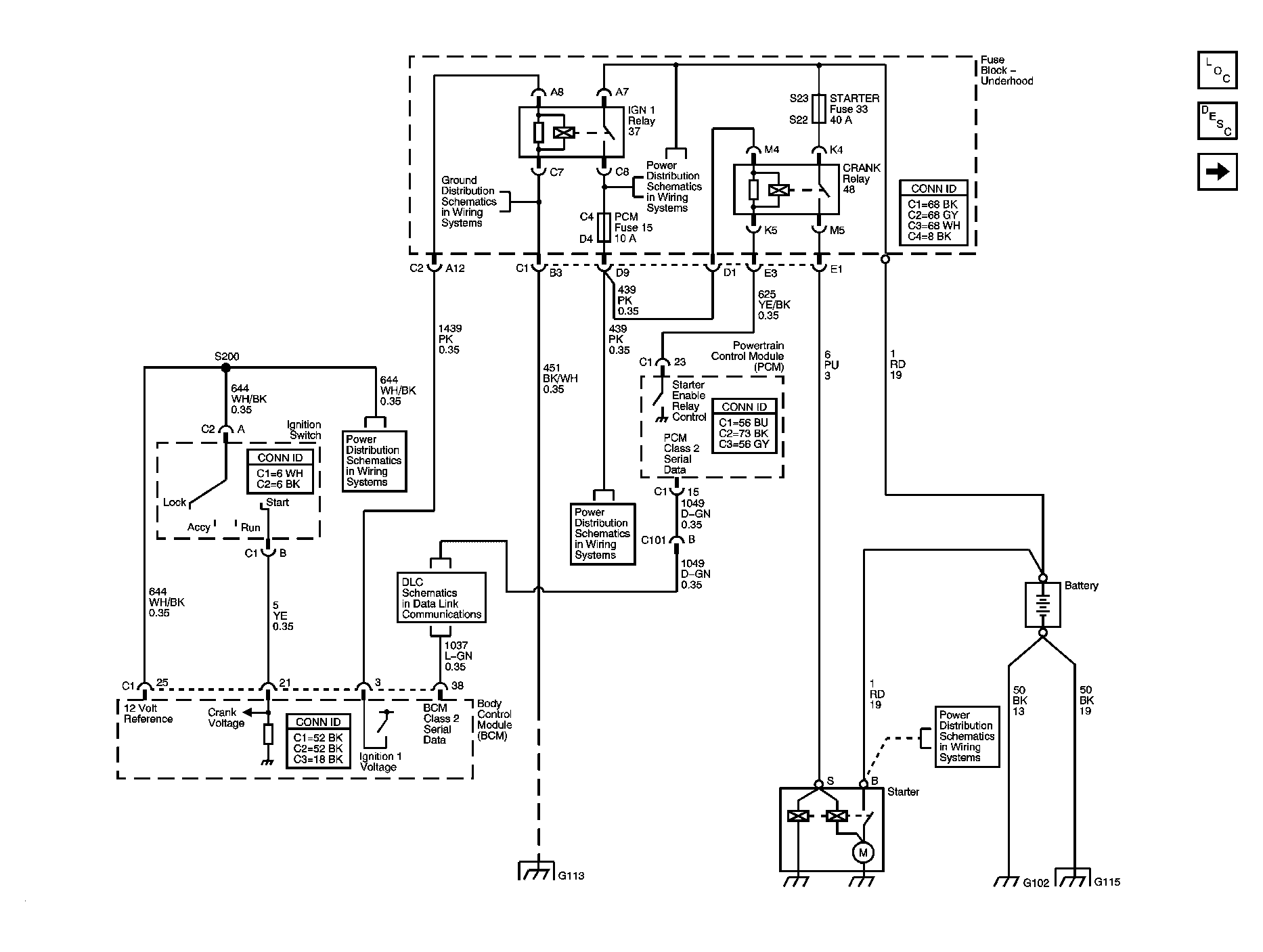

Fig 1: Starter Schematic
GM957581Courtesy of GENERAL MOTORS CORP.

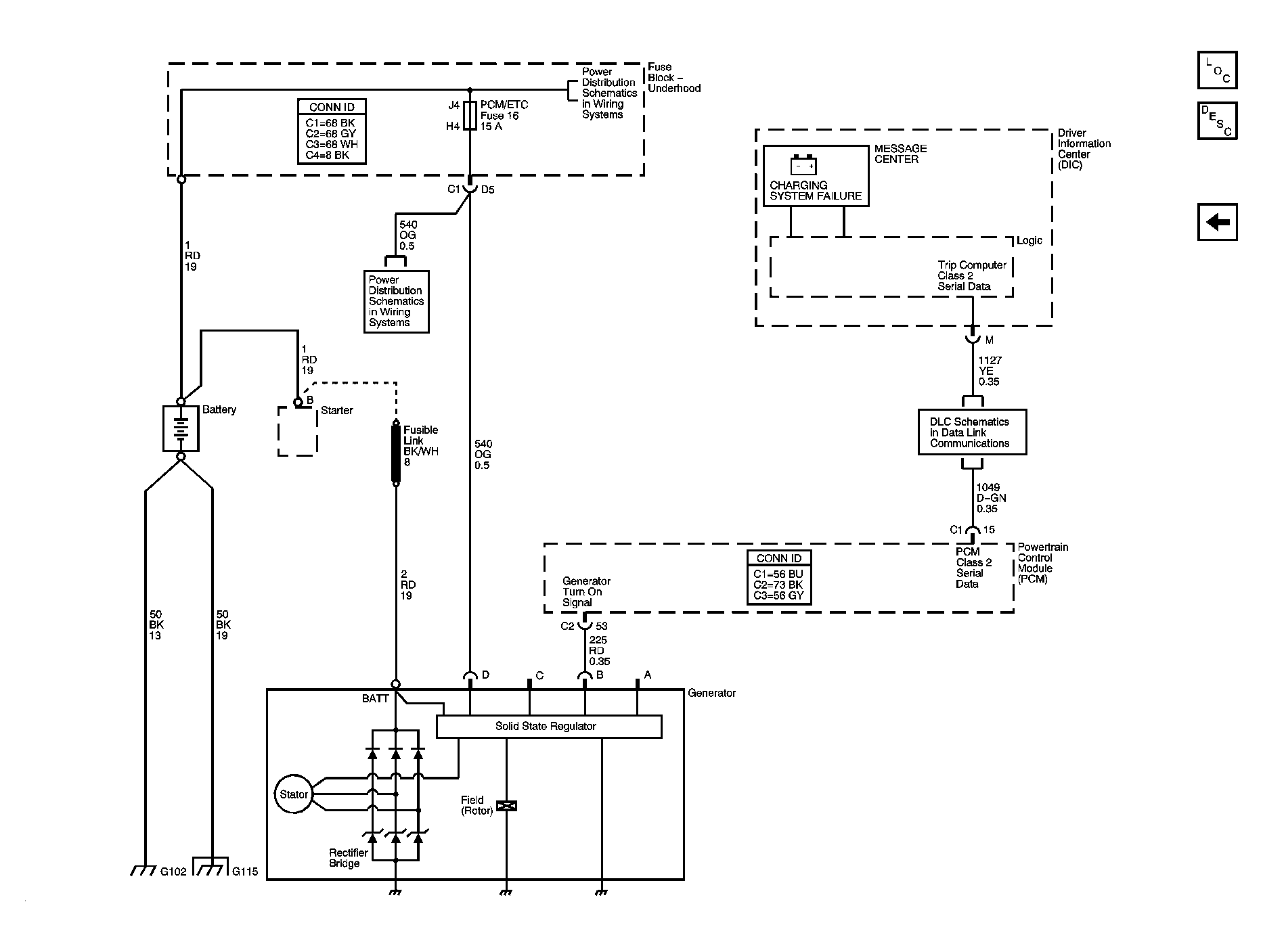

Fig 2: Generator Schematic
GM957593Courtesy of GENERAL MOTORS CORP.
