Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Supercharger Oil Fill Plug
    GM327848Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Make sure the O-ring is in place on the plug. Install the oil plug (1).

    Tighten:  Tighten the oil plug (1) to 10 N.m (89 lb in).

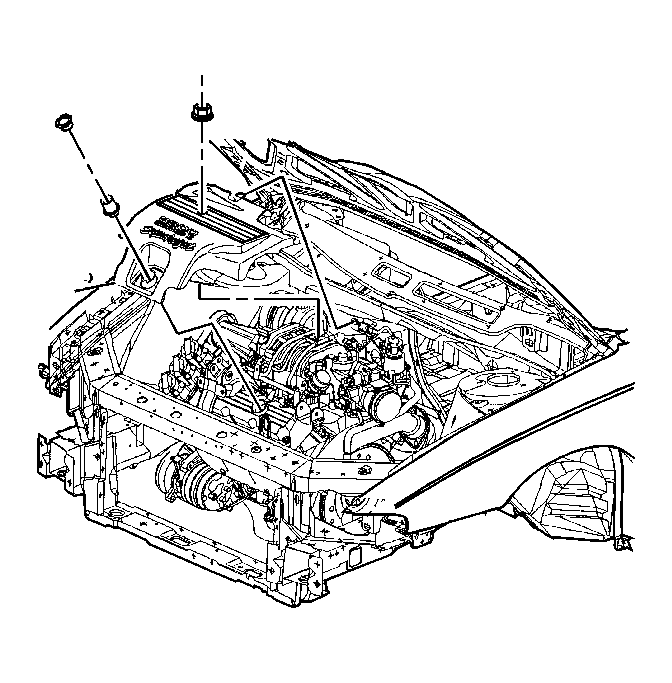

    2. Fig 2: Fuel Injector Sight Shield
    GM370384Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)  or Fuel Injector Sight Shield Replacement (L67) .
