Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

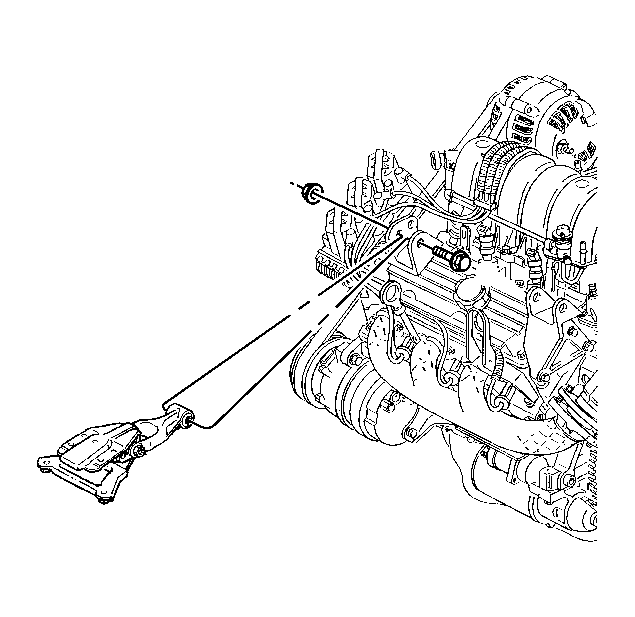

    Fig 1: View Of Right Engine Mount Strut To Upper Engine Mount Strut Bracket
    GM97620Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.
    2. Fig 2: Identifying Engine Mount Strut
    GM97613Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
