Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

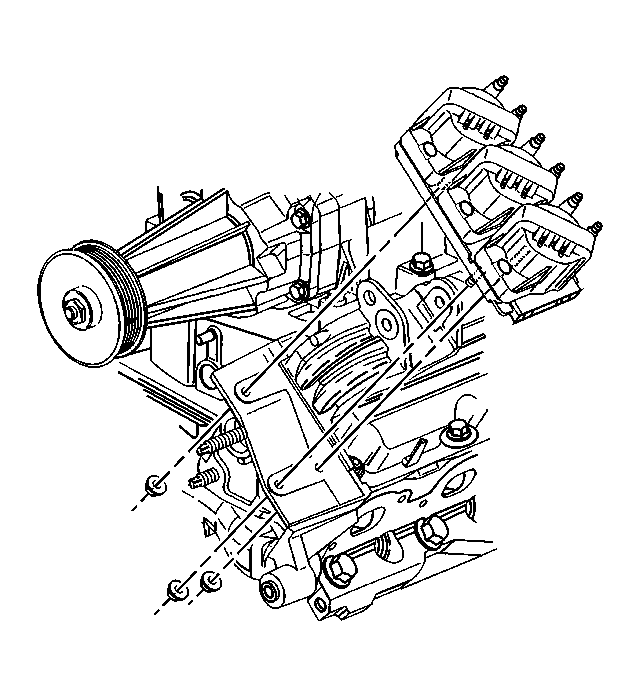

    2. Fig 1: Ignition Coil & Bolts
    GM153564Courtesy of GENERAL MOTORS CORP.
  2. Remove the ignition coil. Refer to Ignition Coil(s) Replacement in Engine Controls - 3.8L.
  3. Remove the supercharger drive belt. Refer to Drive Belt Replacement (L36)  or Drive Belt Replacement (L67) .
    4. Fig 2: Drive Belt Idler Pulley - Upper
    GM370453Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper supercharger drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement - Upper .
    5. Fig 3: Supercharger Drive Belt Tensioner
    GM97873Courtesy of GENERAL MOTORS CORP.
  5. Remove the supercharger drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Supercharger .
    6. Fig 4: View Of Right Engine Mount Strut To Upper Engine Mount Strut Bracket
    GM97620Courtesy of GENERAL MOTORS CORP.
  6. Remove the right engine mount strut at the right engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left  and Engine Mount Strut Replacement - Right .
    7. Fig 5: Right Engine Mount Strut Bracket, Nuts And Stud
    GM97874Courtesy of GENERAL MOTORS CORP.
  7. Remove the right engine mount strut bracket nuts and stud.
  8. Remove the right engine mount strut bracket from the cylinder head.
