Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Right Engine Mount Strut Bracket, Nuts And Stud

Courtesy of GENERAL MOTORS CORP.

Install the right engine mount strut bracket to the cylinder head.

Fig 2: Electronic Ignition Module Harness Assembly

Courtesy of GENERAL MOTORS CORP.

Install the electronic ignition module harness assembly to the stud, as shown.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the right engine mount strut bracket nuts and stud.
Tighten: Tighten the right engine mount strut bracket nuts and stud to 50 N.m (37 lb ft).

Fig 3: View Of Right Engine Mount Strut To Upper Engine Mount Strut Bracket

Courtesy of GENERAL MOTORS CORP.

Install the right engine mount strut to the right engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left and Engine Mount Strut Replacement - Right .

Fig 4: Supercharger Drive Belt Tensioner

Courtesy of GENERAL MOTORS CORP.

Install the supercharger drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Supercharger .

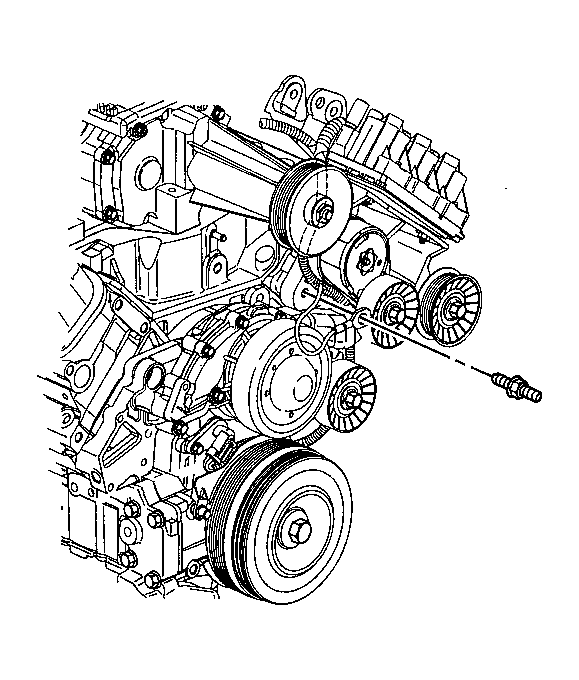

Fig 5: Drive Belt Idler Pulley - Upper

Courtesy of GENERAL MOTORS CORP.

Install the upper supercharger drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement - Upper .
Install the supercharger drive belt. Refer to Drive Belt Replacement (L36) or Drive Belt Replacement (L67) .

Fig 6: Ignition Coil & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the ignition coil. Refer to Ignition Coil(s) Replacement in Engine Controls - 3.8L.
Connect the battery ground (negative) cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
