Water Outlet and Thermostat Removal (L67)

WARNING: This page is about a different car, the 2004 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

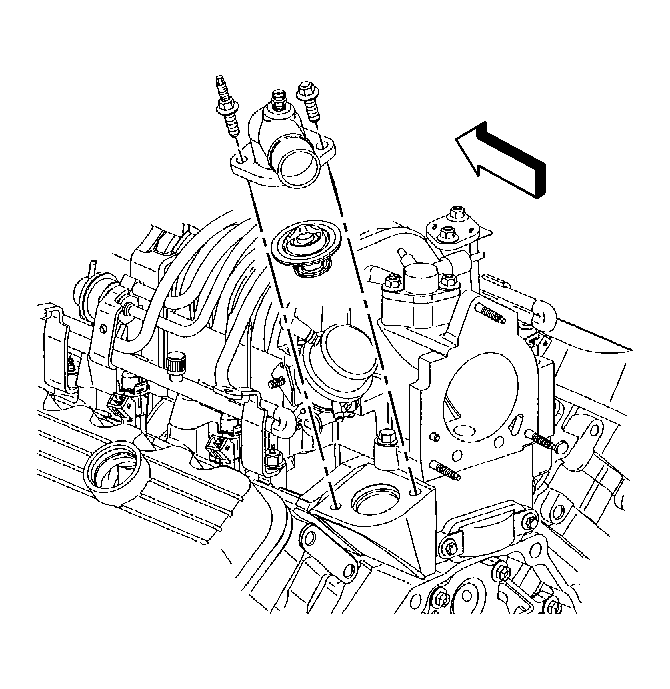

    Fig 1: Water Outlet & Thermostat (L67)
    GM395582Courtesy of GENERAL MOTORS CORP.
  1. Remove the water outlet bolt and stud.
  2. Remove the water outlet.
  3. Remove the thermostat.
