Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2004 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Exhaust Manifold Heat Shield & Nuts
    GM154529Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust manifold heat shield nuts.
  2. Remove the exhaust manifold heat shield.

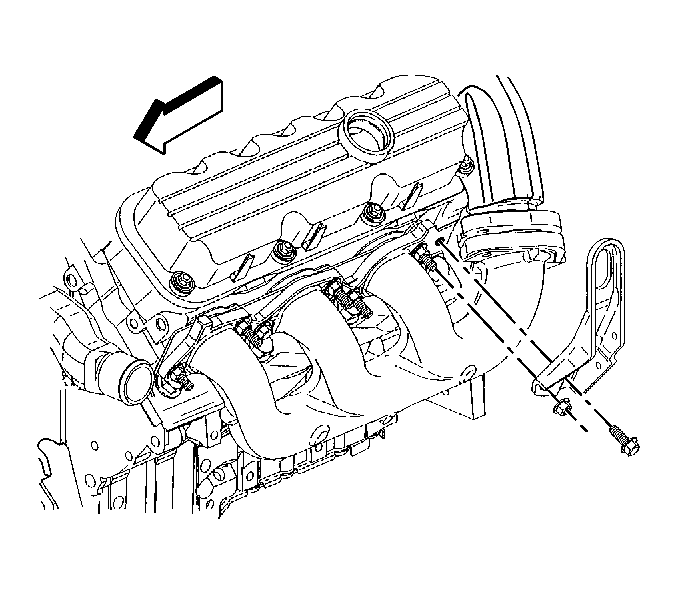

    3. Fig 2: Removing Left Engine Lift Hook
    GM154527Courtesy of GENERAL MOTORS CORP.
  3. Remove the left engine lift hook nut and bolt.
  4. Remove the left engine lift hook.
  5. Remove the left side spark plugs.
    6. Fig 3: Removing/Installing Left Exhaust Manifold
    GM683911Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust manifold bolt and studs.
  7. Remove the exhaust manifold.
  8. Remove the exhaust manifold gasket.
    9. Fig 4: Left Exhaust Manifold Studs
    GM683917Courtesy of GENERAL MOTORS CORP.
  9. Remove the exhaust manifold studs.
