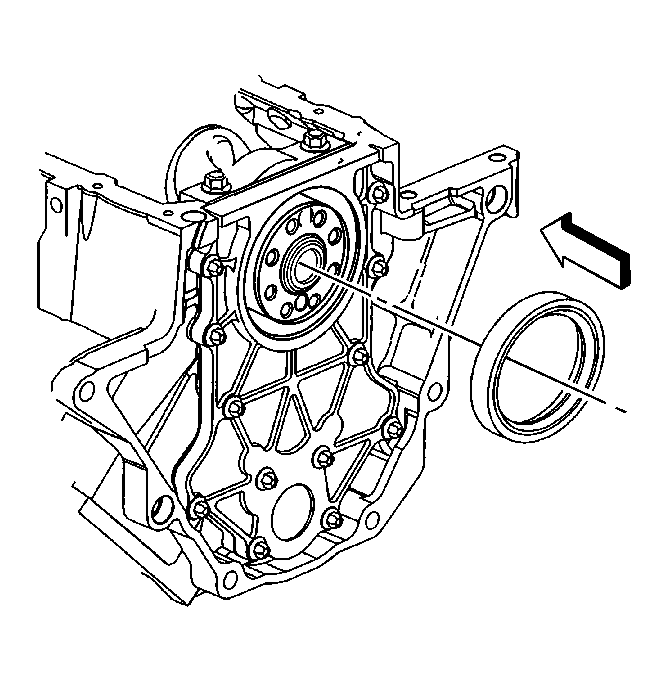

Fig 1: Crankshaft Rear Oil Seal
Courtesy of GENERAL MOTORS CORP.
IMPORTANT:
Do not damage the crankshaft or the crankshaft rear oil seal housing.
Pry the crankshaft rear oil seal out with a screwdriver.
