Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

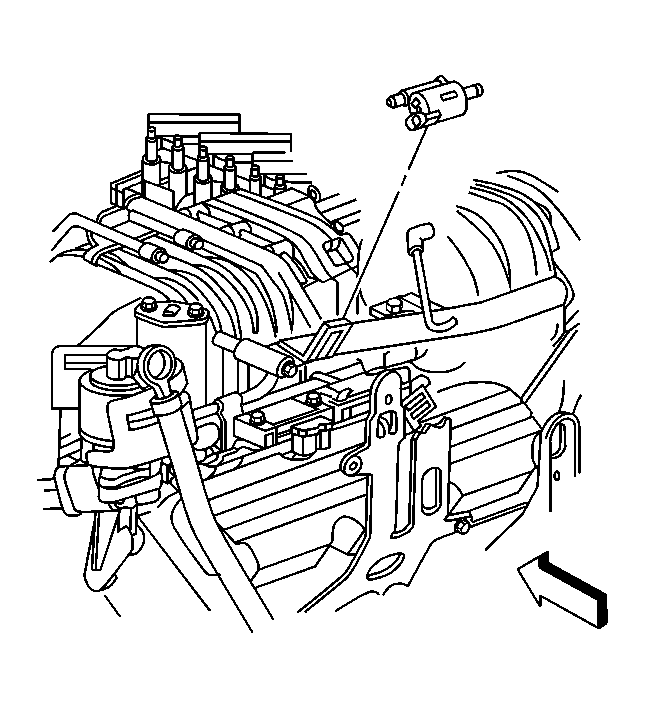

    Fig 1: View Of EVAP Canister Purge Valve
    GM217755Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP canister purge valve on the EVAP canister purge valve mounting bracket.
    2. Fig 2: Locating Evaporative Emission Canister Purge Valve Electrical Connector
    GM217753Courtesy of GENERAL MOTORS CORP.
  2. Connect the EVAP canister purge valve purge pipe and the vacuum supply hose.
  3. Connect the EVAP canister purge valve electrical connector.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36) or Fuel Injector Sight Shield Replacement (L67) in Engine Mechanical - 3.8L.
