DTC P1860: Notes

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

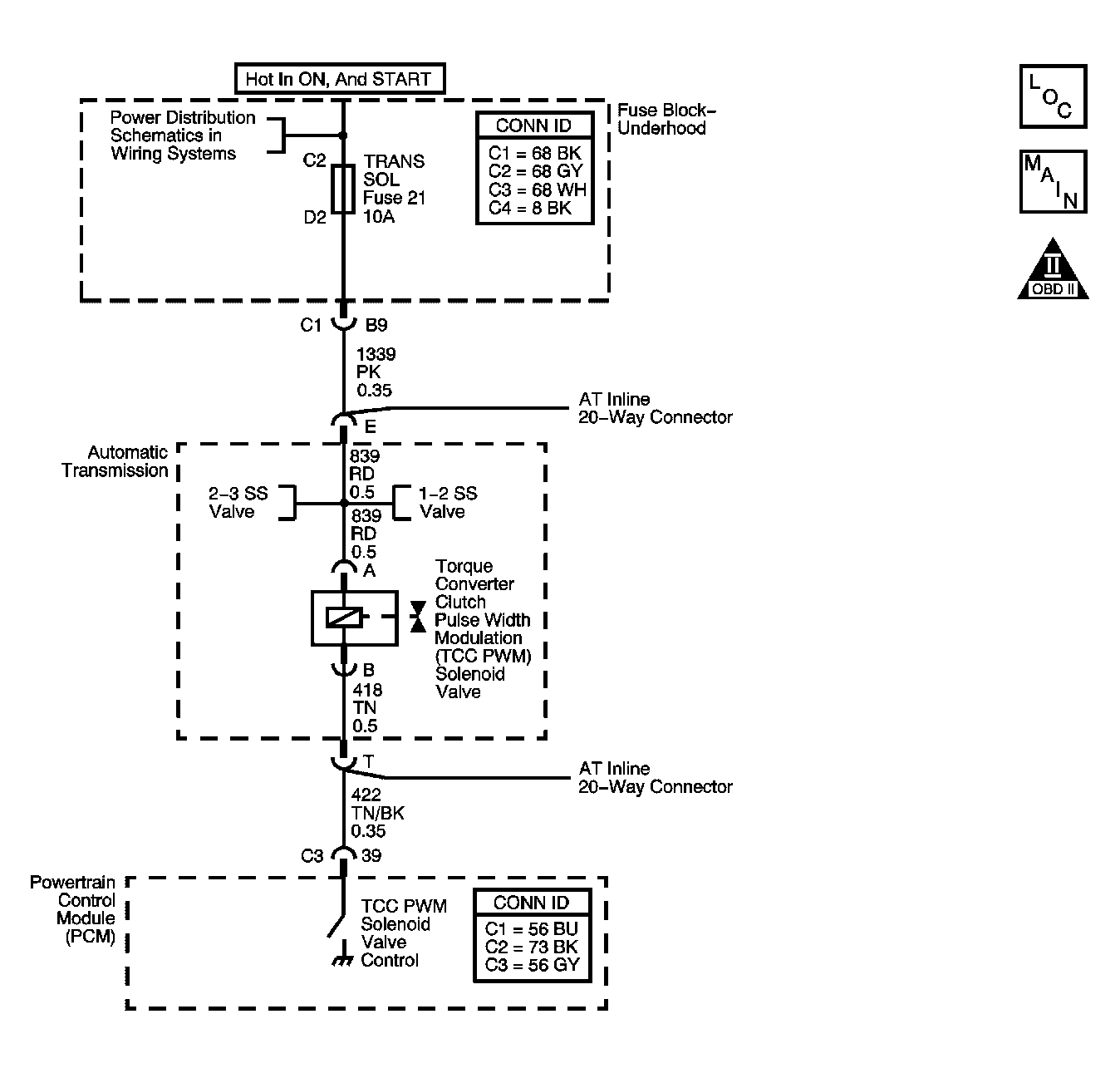

Fig 1: DTC P1860 - TCC PWM Solenoid Valve
GM1214795Courtesy of GENERAL MOTORS CORP.
