Engine Cooling Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

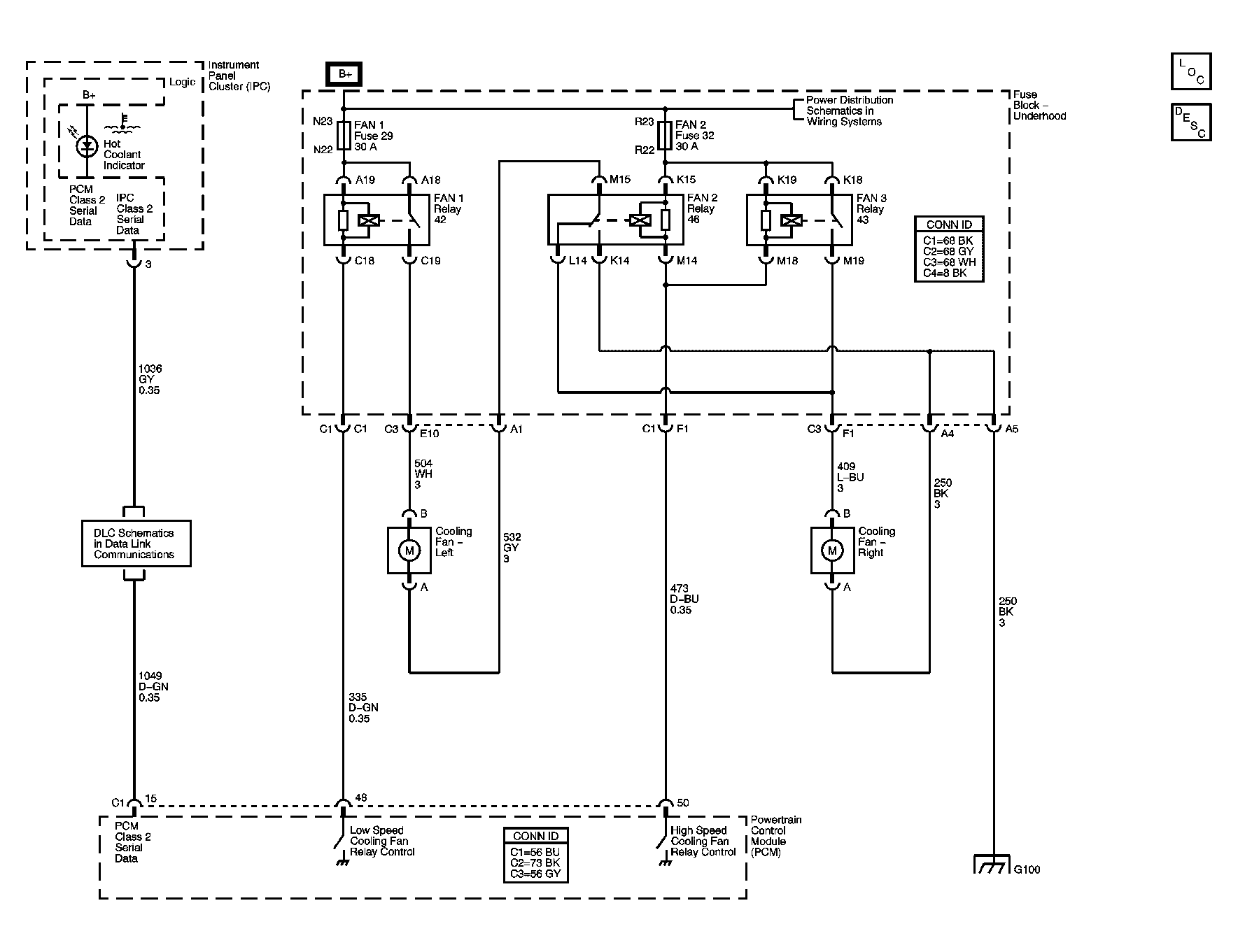

Fig 1: Engine Cooling Fan Schematic
GM1146452Courtesy of GENERAL MOTORS CORP.
