Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator lower radiator air baffle. Refer to Radiator Air Baffle and Deflector Replacement - Lower .

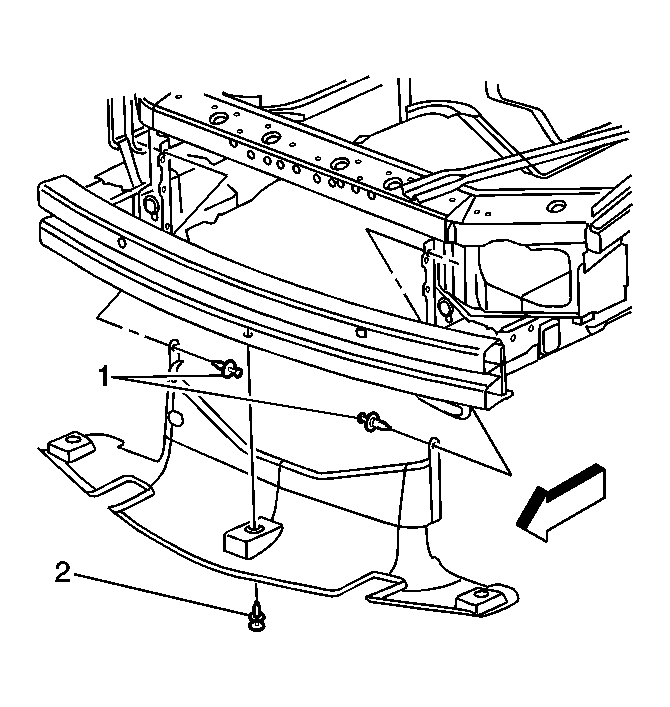

    2. Fig 1: Upper & Center Retainers From Upper Radiator Air Baffle
    GM1204143Courtesy of GENERAL MOTORS CORP.
  2. Remove the center retainer from the upper radiator air baffle (2).
  3. Remove the upper retainers from the upper radiator air baffle (1).
    4. Fig 2: Upper Radiator Air Baffle & Ambient Air Temperature Sensor
    GM907819Courtesy of GENERAL MOTORS CORP.
  4. Remove the ambient air temperature sensor.
  5. Remove the upper radiator air baffle.
