Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

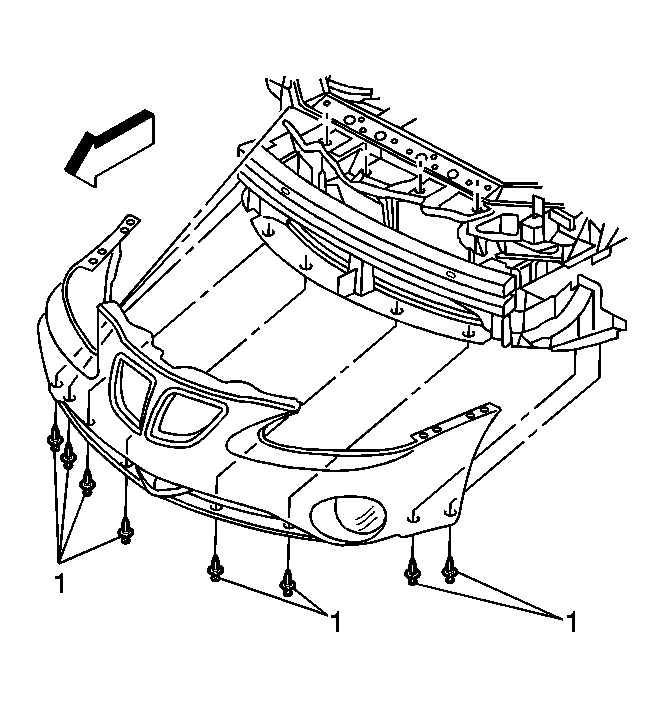

    2. Fig 1: Front Fascia Lower Retainers
    GM1204138Courtesy of GENERAL MOTORS CORP.
  2. Remove the front fascia lower retainers (1).
    3. Fig 2: Radiator Lower Air Deflector Retainers
    GM1204139Courtesy of GENERAL MOTORS CORP.
  3. Remove the radiator lower air deflector retainers (1).
  4. Remove the radiator lower air deflector from the center retainer by sliding the deflector forward off of the retainer (2).
  5. Remove the radiator lower air deflector.
