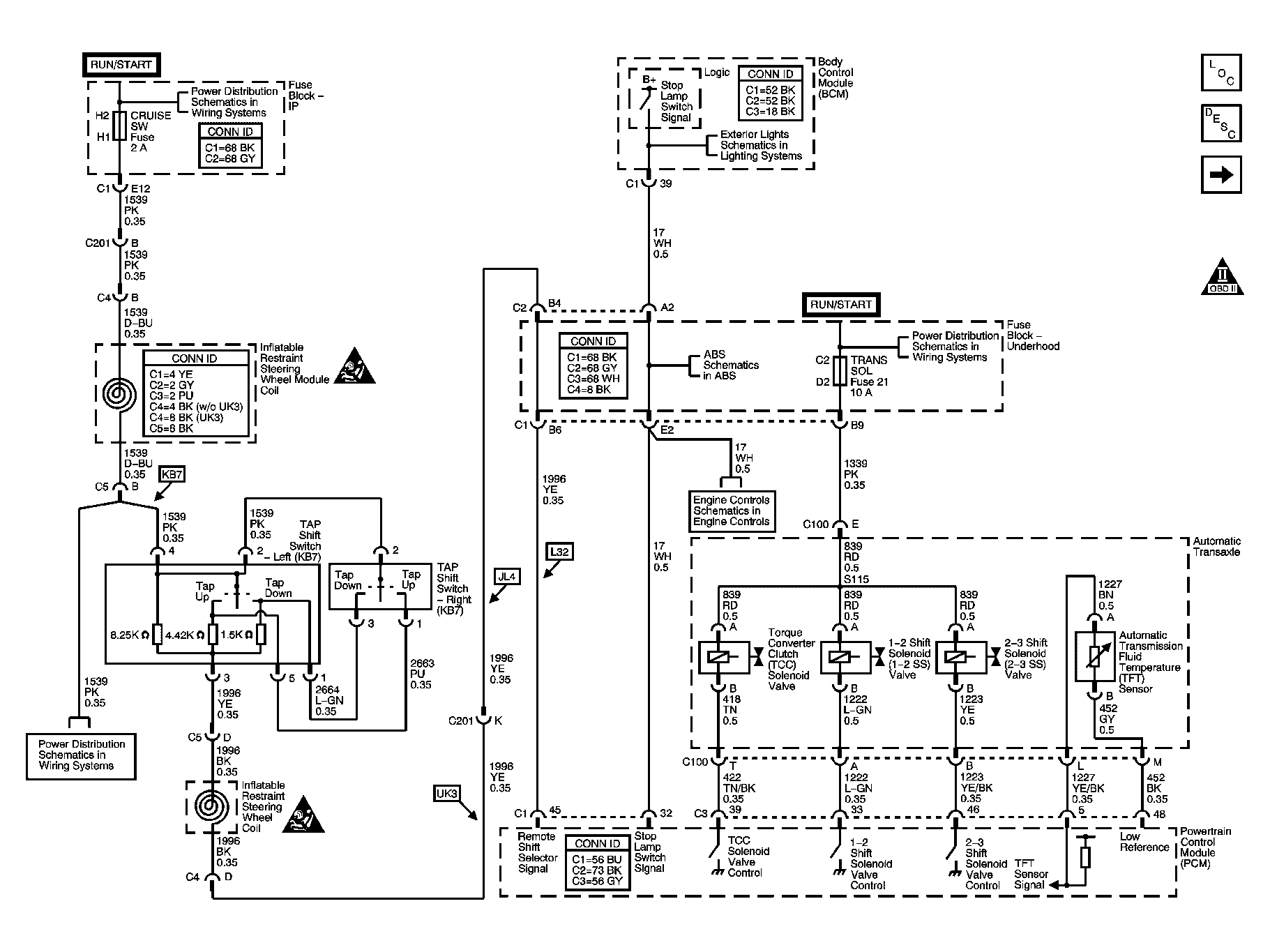

Fig 1: TAP Shift Switches, Stop Lamp Signal, TFT Sensor and TCC, Shift Solenoids
Courtesy of GENERAL MOTORS CORP.

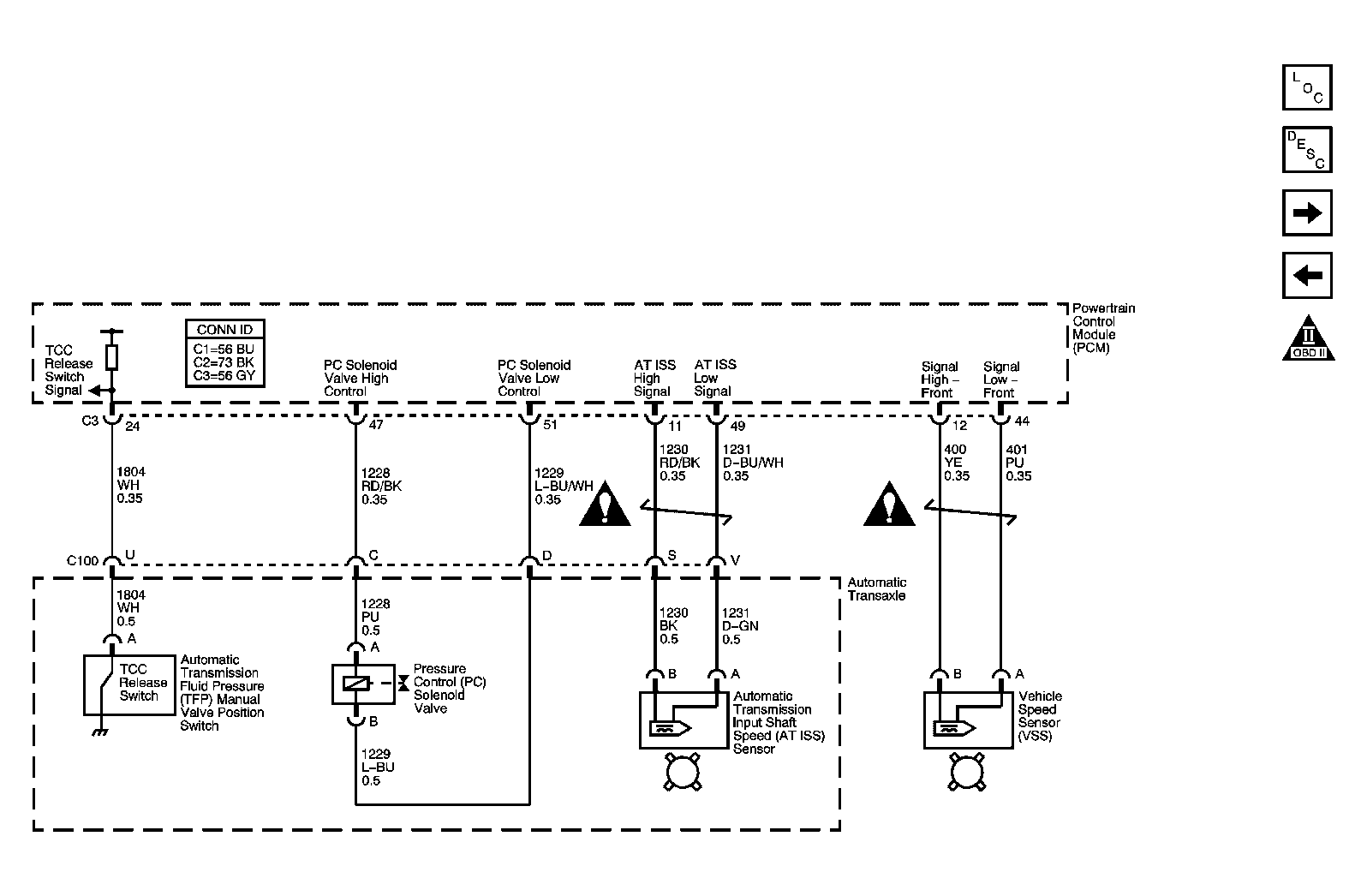

Fig 2: VSS and AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch Schematics
